Transfer Case Holding Fixture Installation

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

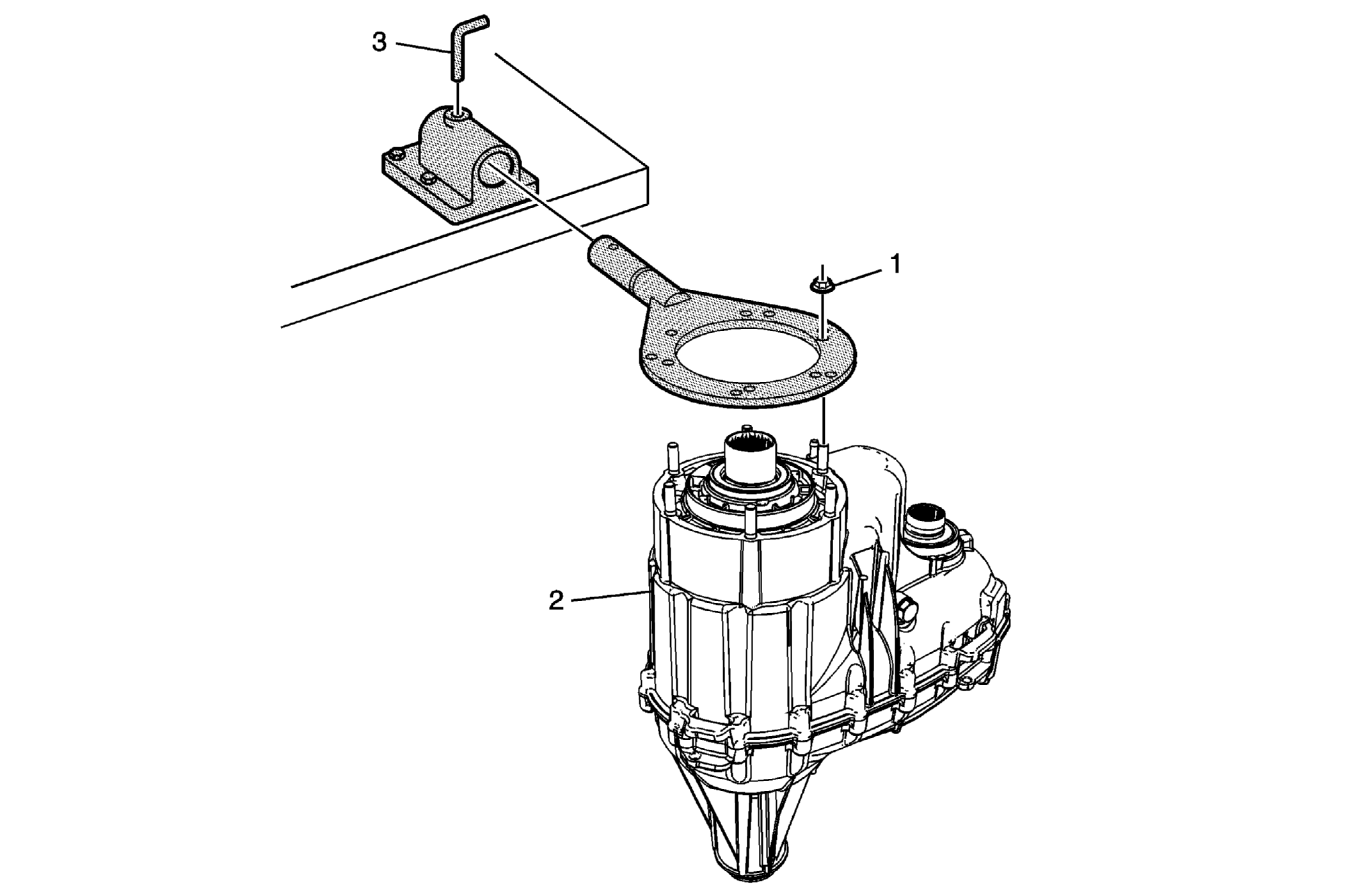

Fig 1: View Of Transfer Case, Nuts & Pivot Pin

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Nuts Special Tools: J 45759 Assembly Fixture
2	Transfer Case Special Tools: J 3289-20 Holding Fixture
3	Pivot Pin Tip: Always secure with the pivot pin after rotating. The transfer case can be rotated 360 degrees to facilitate repair.
