Front Brake Shield Replacement (JD9, JF3, JF7)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

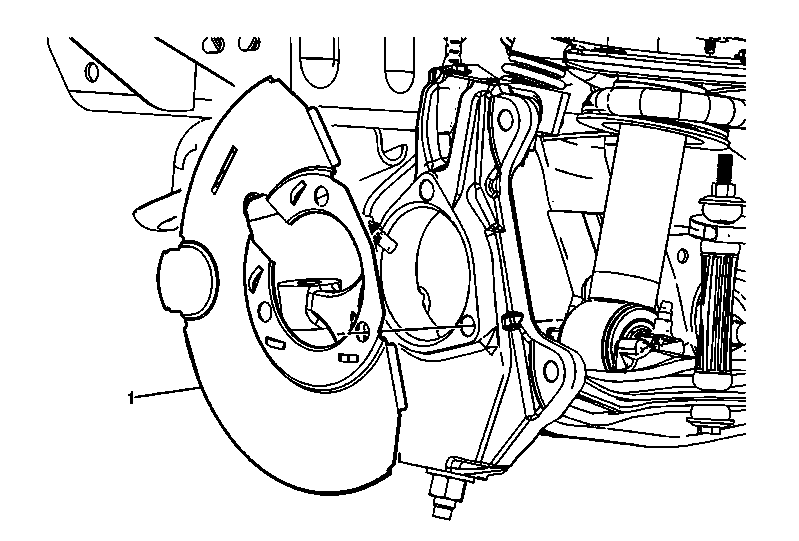

Fig 1: View Of Disc Brake Splash Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Dust Caution . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the wheel hub and bearing assembly. Refer to Front Wheel Hub, Bearing, and Seal Replacement (1500) or Front Wheel Hub, Bearing, and Seal Replacement (2500) .
1	Disc Brake Splash Shield Tip: Align the relief in the forward edge of the disc brake splash shield with the steering arm on the steering knuckle.

Callout

Component Name

CAUTION: Refer to Brake Dust Caution .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the wheel hub and bearing assembly. Refer to Front Wheel Hub, Bearing, and Seal Replacement (1500) or Front Wheel Hub, Bearing, and Seal Replacement (2500) .

Disc Brake Splash Shield
Tip: Align the relief in the forward edge of the disc brake splash shield with the steering arm on the steering knuckle.
