Heated/Cooled Seat Component Views

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Memory/Heated Seat Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror (OSRVM) - Driver
2	Memory/Heated Seat Switch (AN3)

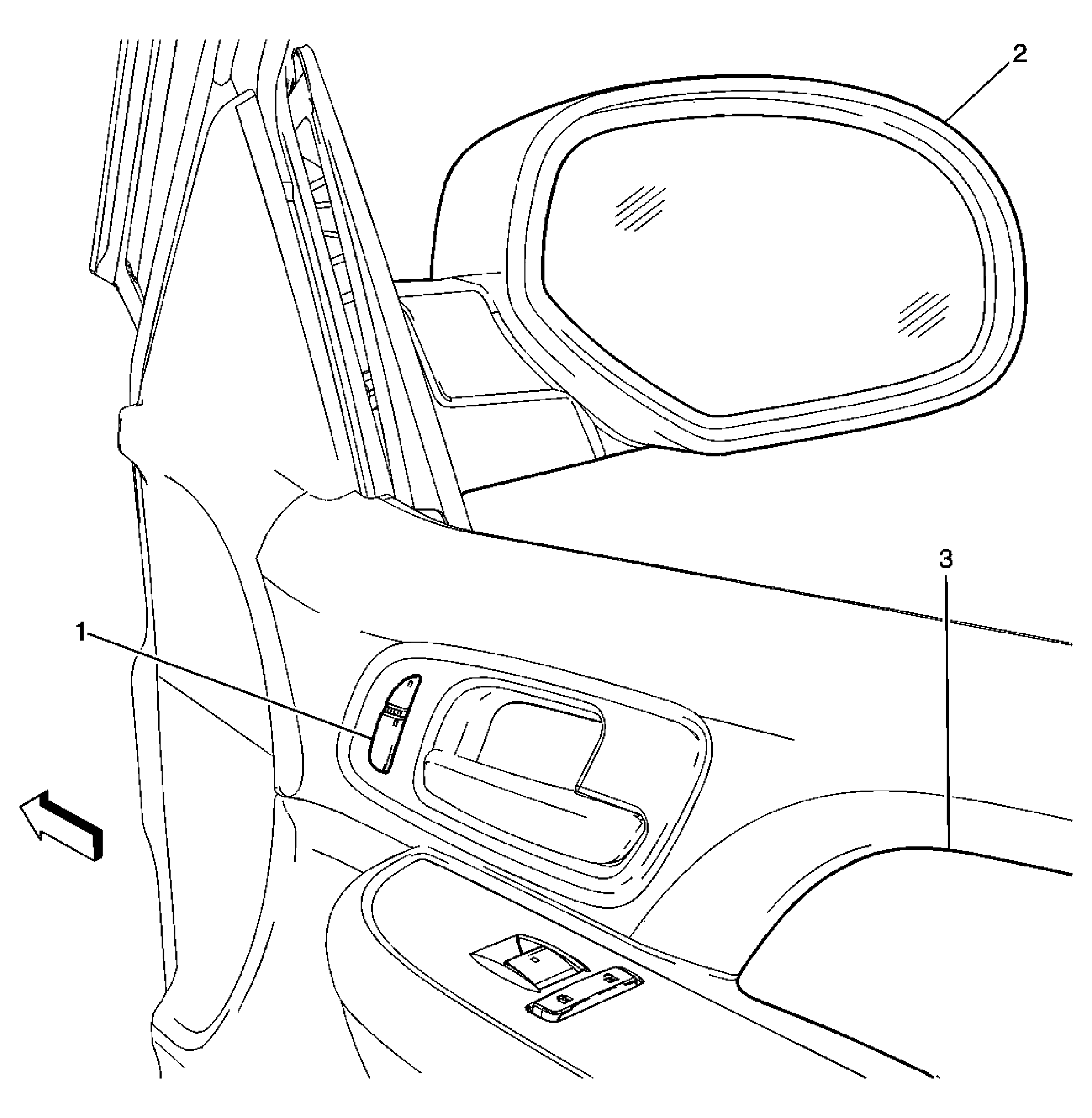

Fig 2: Passenger Heated Seat Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Switch - Passenger (AN3)
2	Outside Rearview Mirror (OSRVM) - Passenger
3	Door Trim

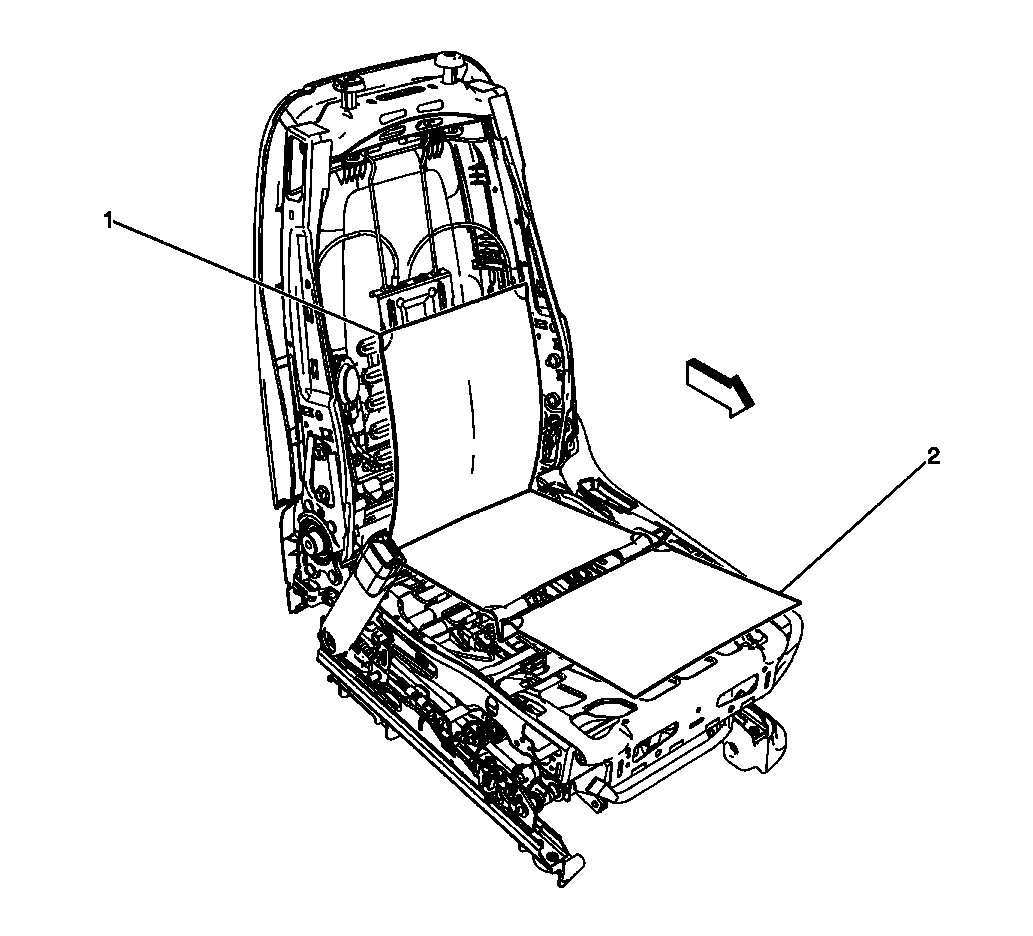

Fig 3: Seat Heating Elements - Driver (AN3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Driver Back
2	Heated Seat Element - Driver Cushion

Fig 4: Seat Heating Elements - Passenger (AN3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Seat Element - Passenger Back
2	Heated Seat Element - Passenger Cushion
