Horn Replacement - Left Side (GMC)
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Horn Replacement - Left Side (GMC)

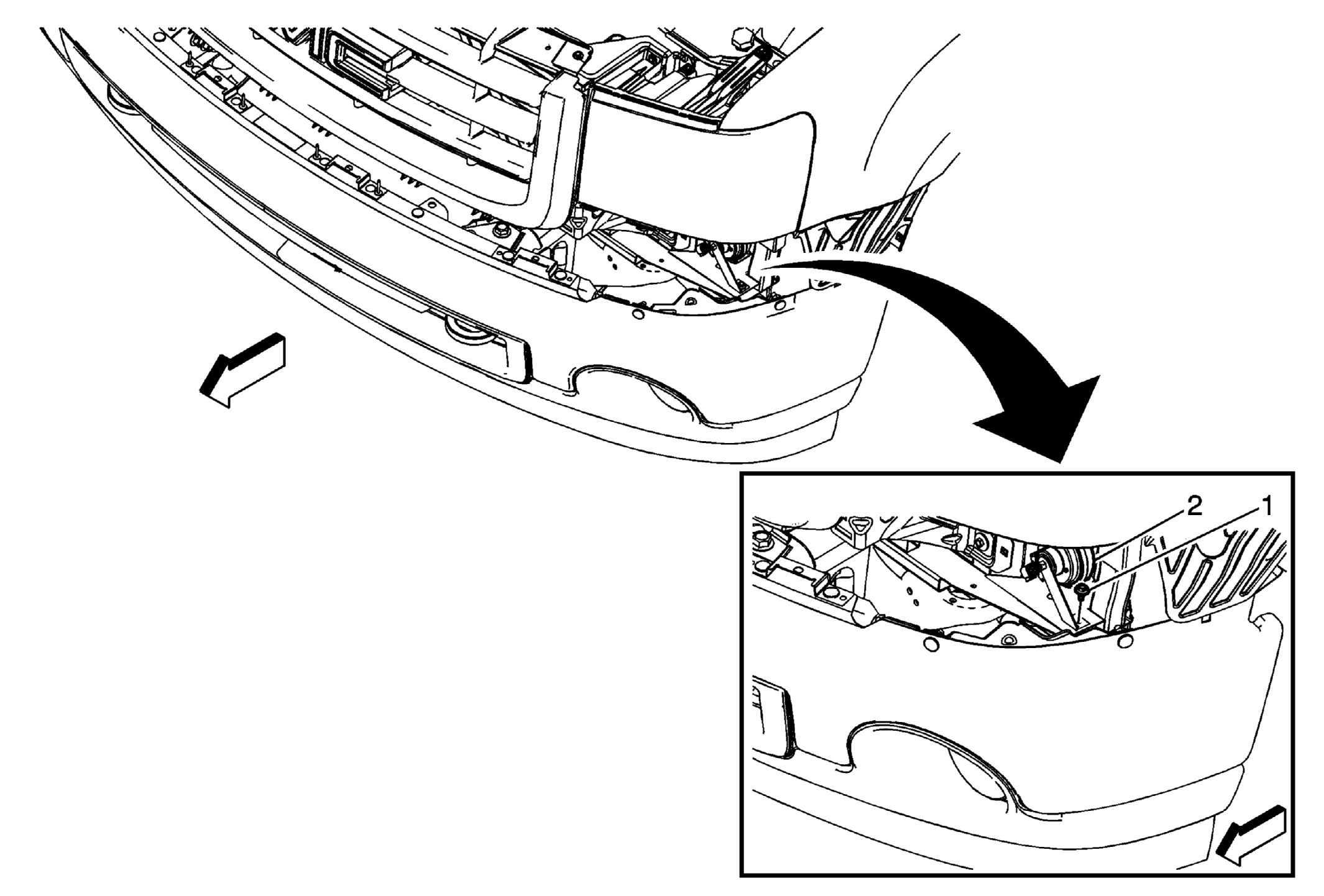

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia trim cap. Refer to Front Bumper Fascia Trim Cap Replacement (GMC) . |
|
| 1 | Left Side Horn Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 2 | Left Side Horn Tip: Disconnect the electrical connector. |
