Rear Bumper Step Outer Pad Replacement
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

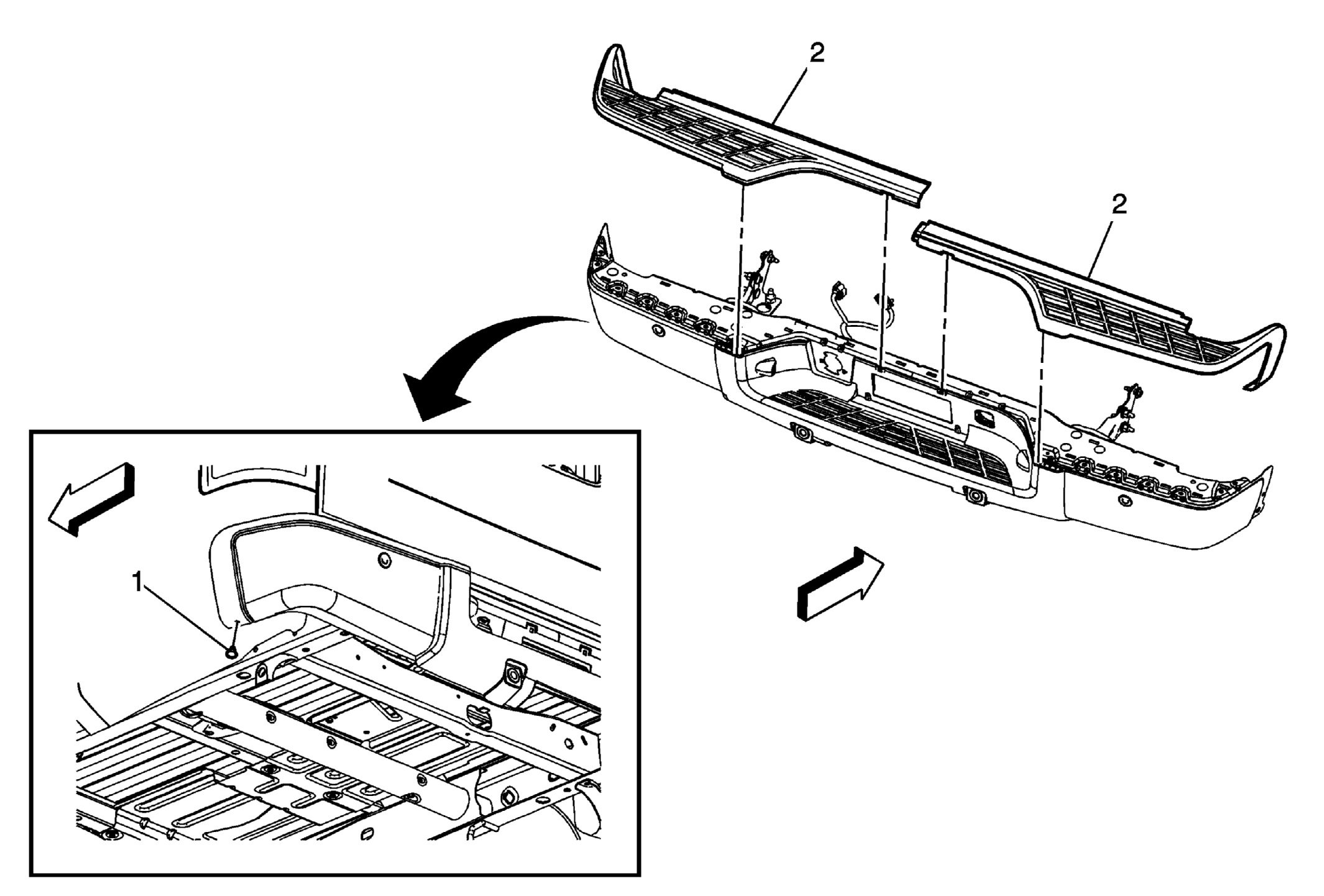

Courtesy of GENERAL MOTORS CORP. Rear Bumper Step Outer Pad Replacement
| Callout |
Component Name |
| 1 |
Rear Bumper Step Outer Pad Plastic Retainer |
| 2 |
Rear Bumper Step Outer Pad
Tip:
- If removing the right side step pad then the left pad must be removed first.
- Use a trim panel removal tool to help pry the step pad from the impact bar.
|
