Front Bumper Impact Bar Extension Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

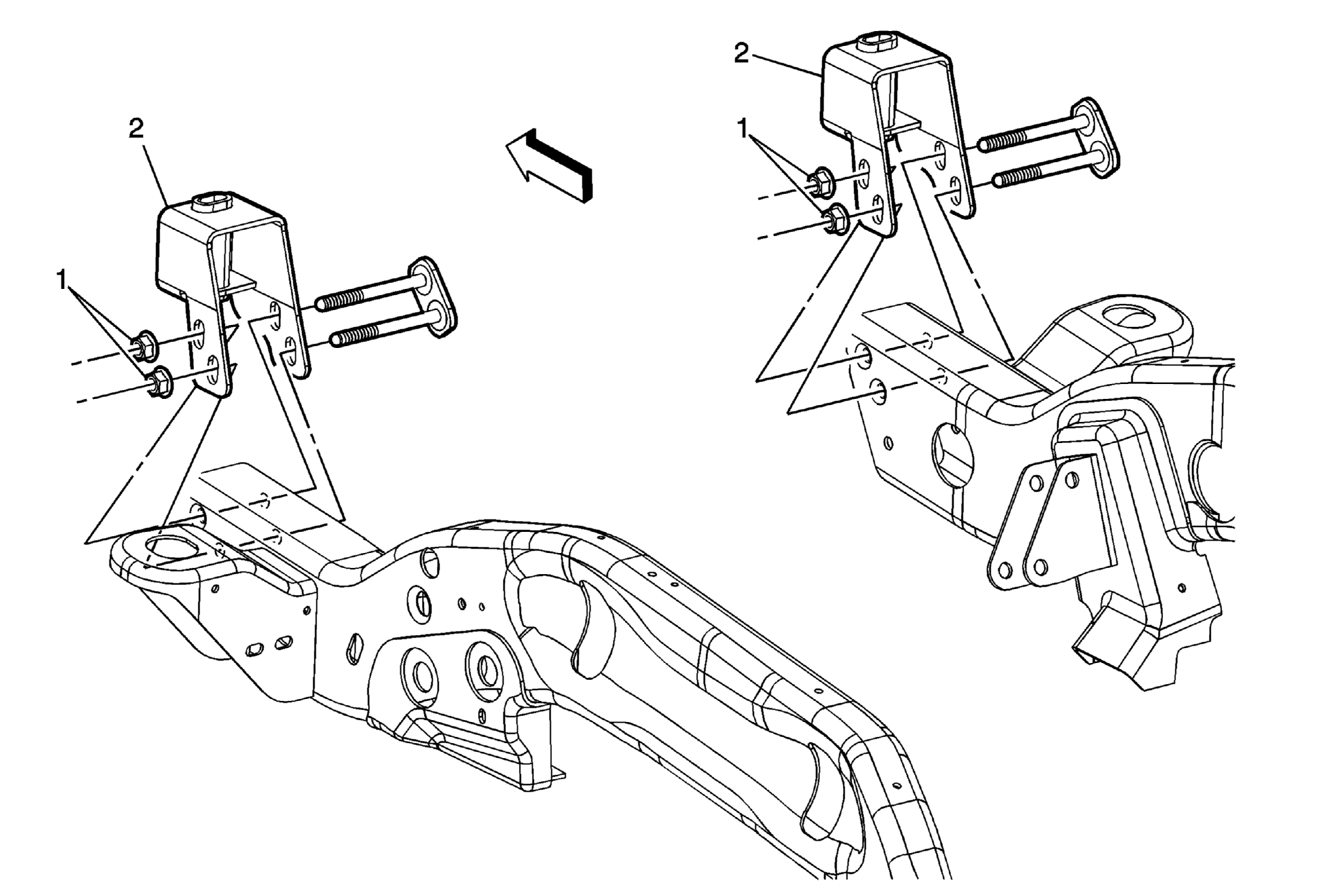

Fig 1: View Of Front Bumper Impact Bar Extension

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper impact bar. Refer to Front Bumper Impact Bar Extension Replacement .
1	Front Bumper Extension Nuts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 160 N.m (118 lb ft)
2	Front Bumper Extension
