Front Bumper Impact Bar Extension Replacement (Chevrolet)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

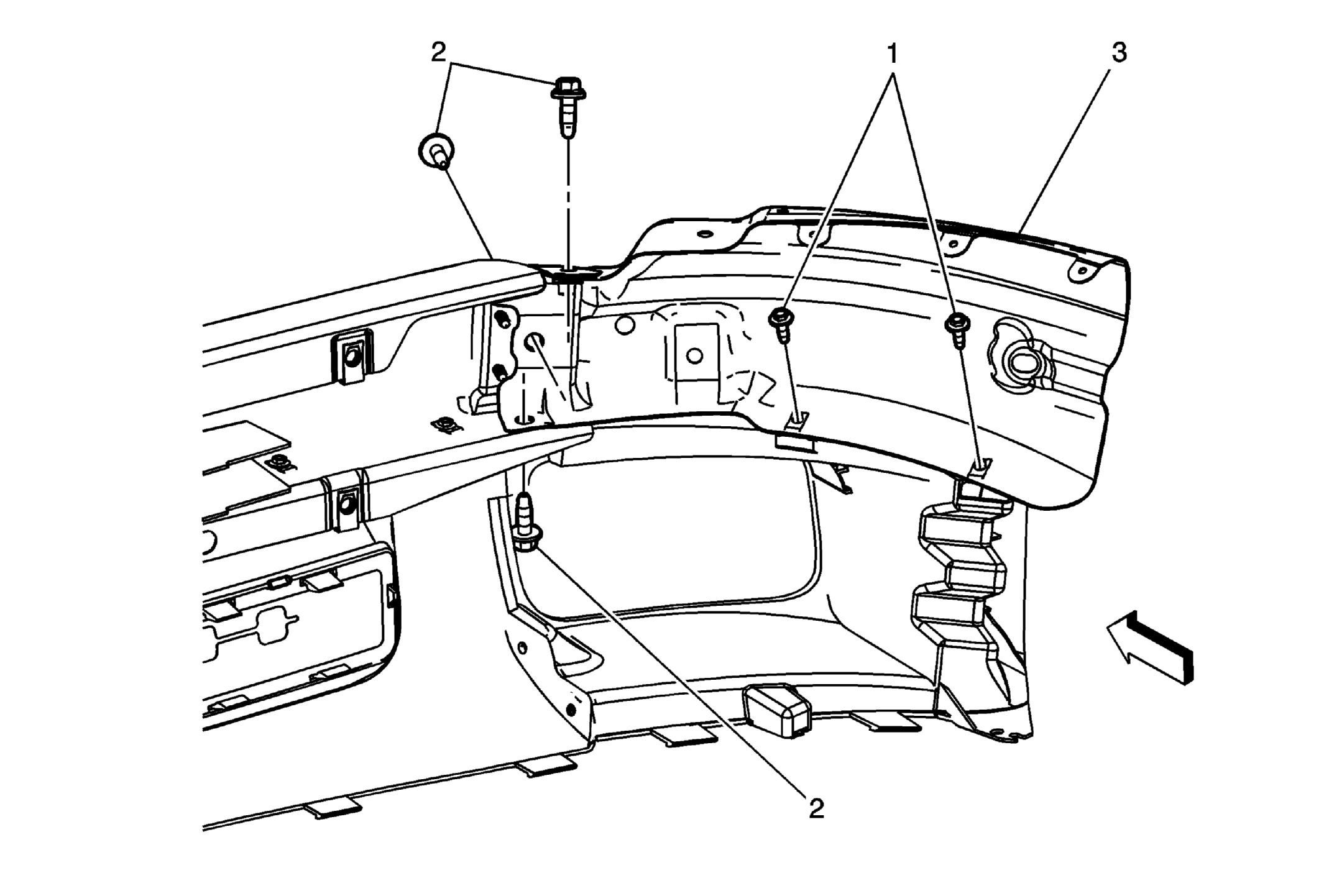

Fig 1: View Of Front Bumper Impact Bar Extension (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper impact bar outer bracket. Refer to Front Bumper Impact Bar Outer Bracket Replacement (GMC) or Front Bumper Impact Bar Outer Bracket Replacement (Chevrolet) .
1	Front Bumper Impact Bar Extension Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Front Bumper Impact Bar Extension Bolts (Qty: 3) Tighten: 50 N.m (37 lb ft)
3	Front Bumper Impact Bar Extension
