Front Bumper Fascia Side Bracket Replacement (GMC)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

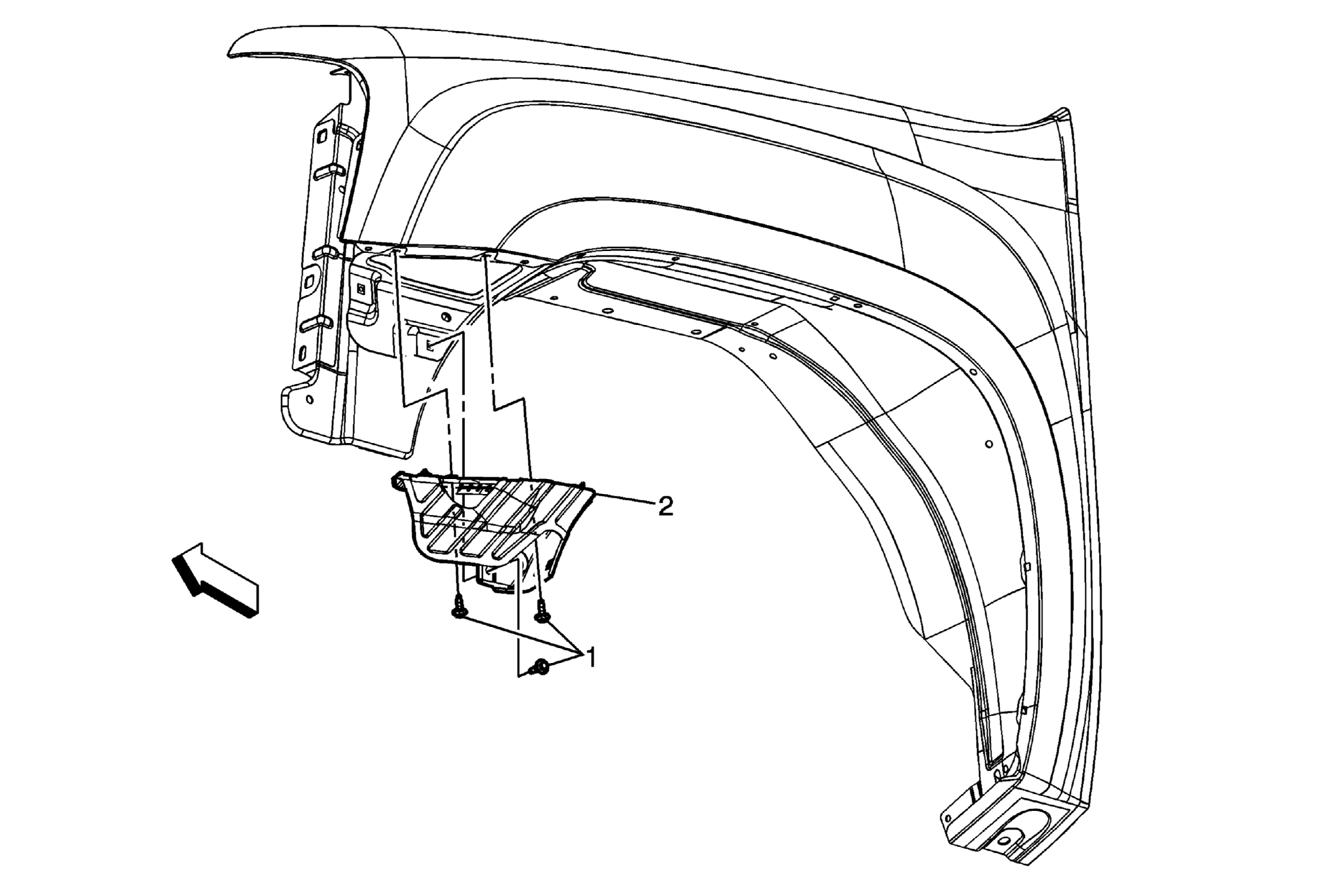

Fig 1: View Of Front Bumper Fascia Side Bracket (GMC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front bumper fascia trim cap. Refer to Front Bumper Fascia Trim Cap Replacement (GMC) .
1	Front Bumper Fascia Side Bracket Bolts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 7 N.m (62 lb in)
2	Front Bumper Fascia Side Bracket Tip: Remove the two plastic retainers securing the front wheelhouse liner to the front bumper fascia side bracket.
