Front Bumper Fascia Center Support Bracket Replacement (GMC)
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Front Bumper Fascia Center Support Bracket Replacement (GMC)

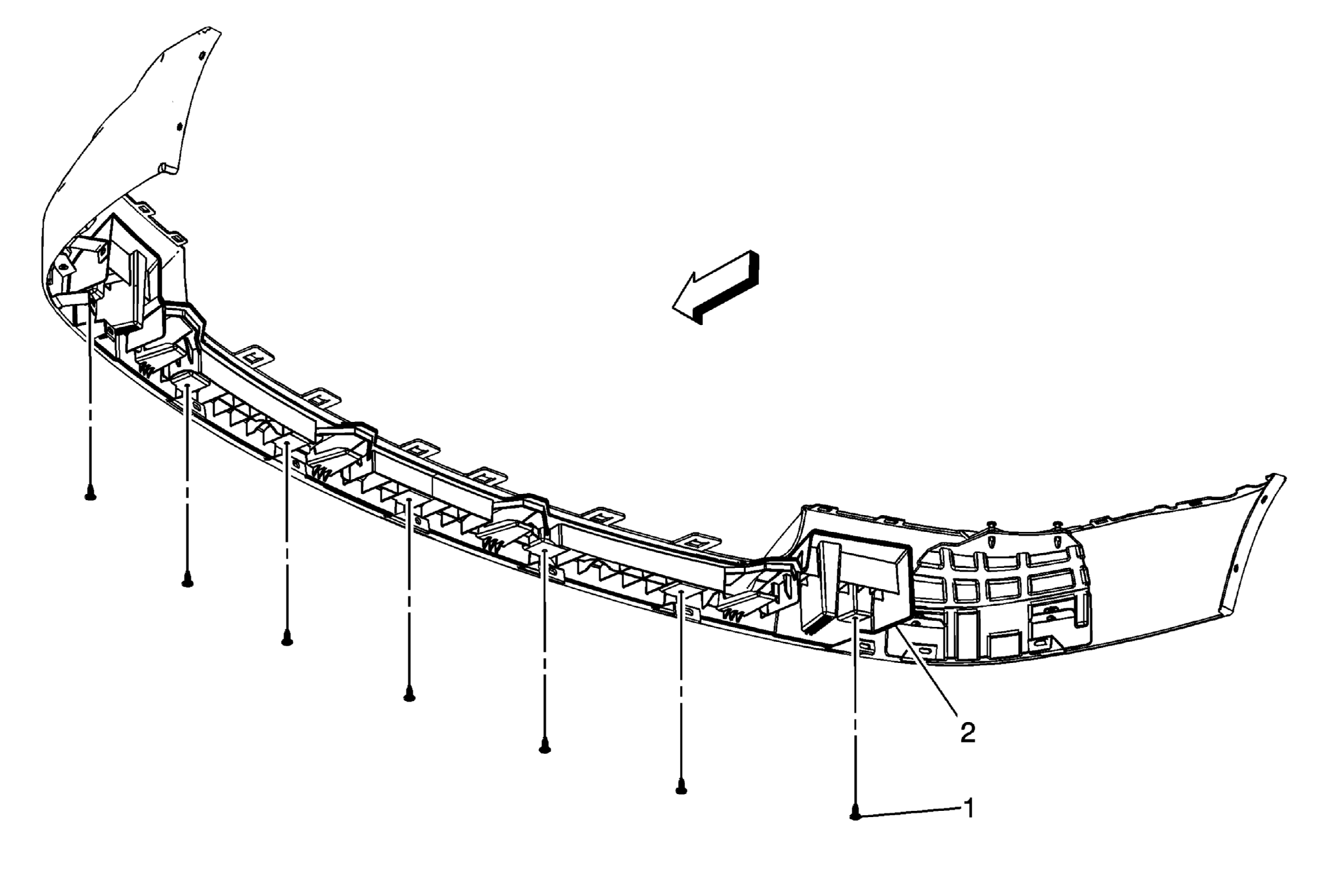

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia trim cap. Refer to Front Bumper Fascia Trim Cap Replacement (GMC) . |
|
| 1 | Front Bumper Fascia Center Support Bracket Screws (Qty: 7)
NOTE:
Refer to Fastener Notice
.
Tighten: 3 N.m (27 lb in) |
| 2 | Front Bumper Fascia Center Support Bracket |
