Front Air Deflector Extension Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

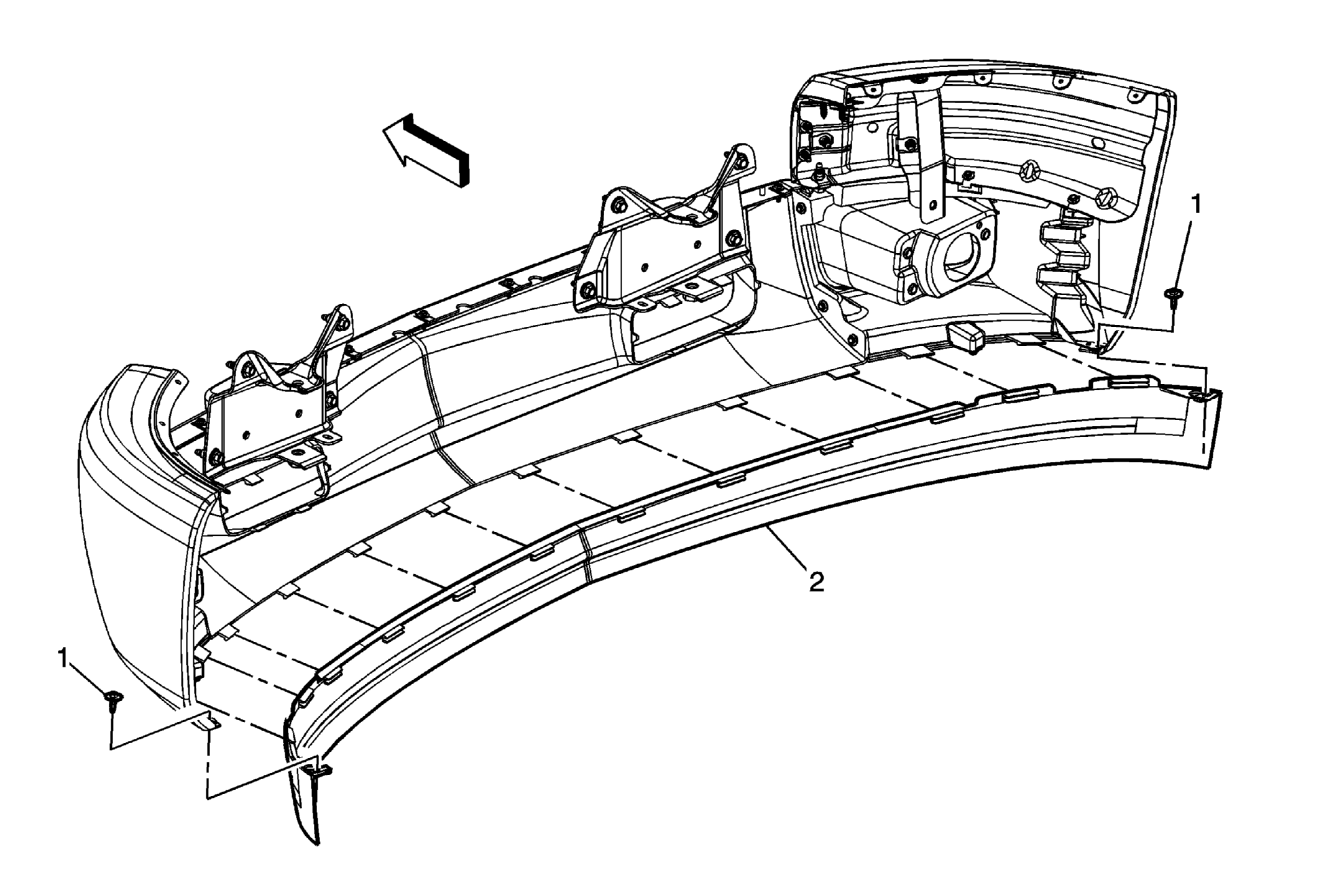

Fig 1: View Of Front Air Deflector Extension

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Air Deflector Extension Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 5 N.m (44 lb in)
2	Front Air Deflector Extension
