Wiper/Washer Schematics

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

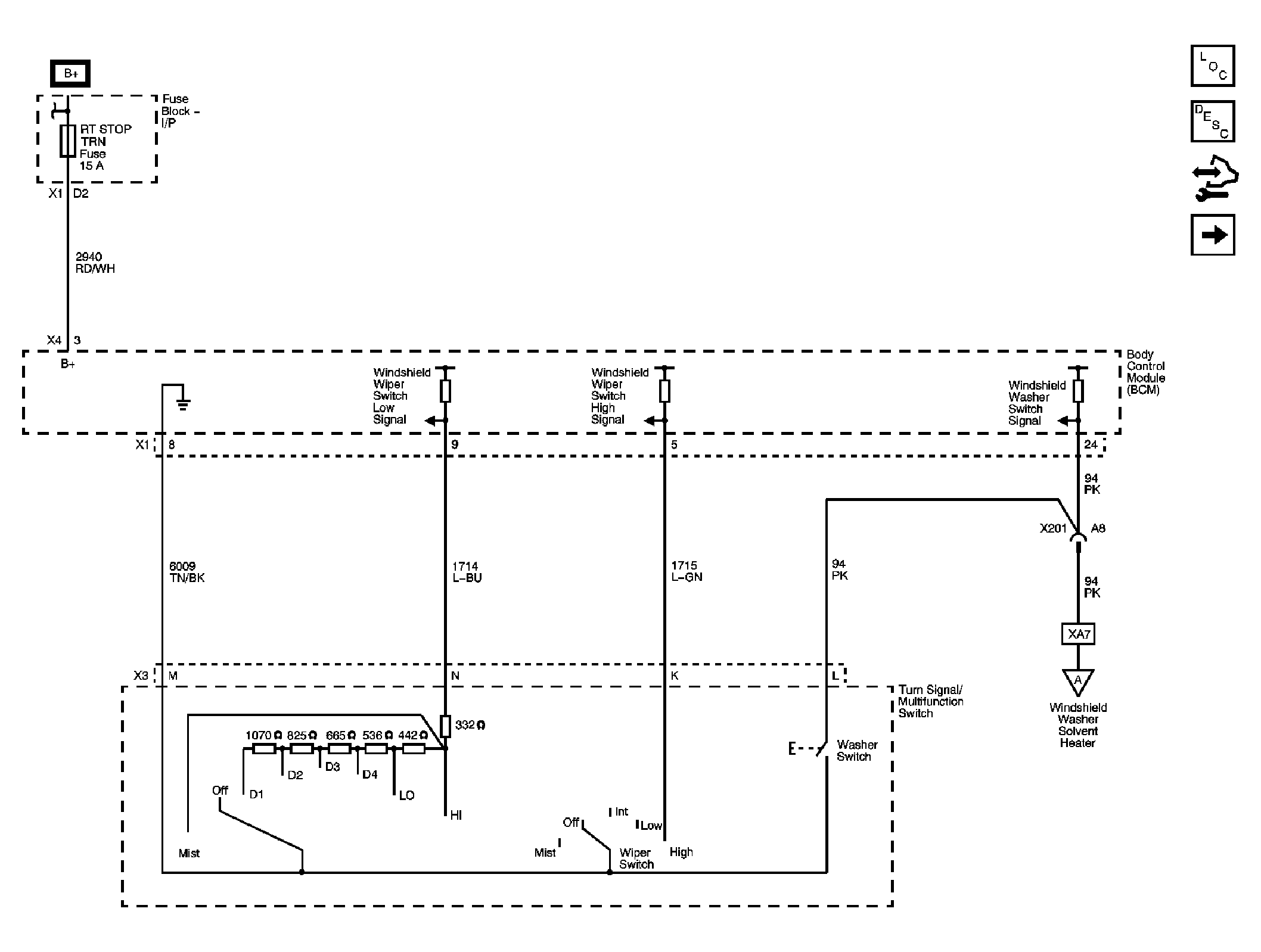

Fig 1: Wiper Controls Schematic

Courtesy of GENERAL MOTORS CORP.

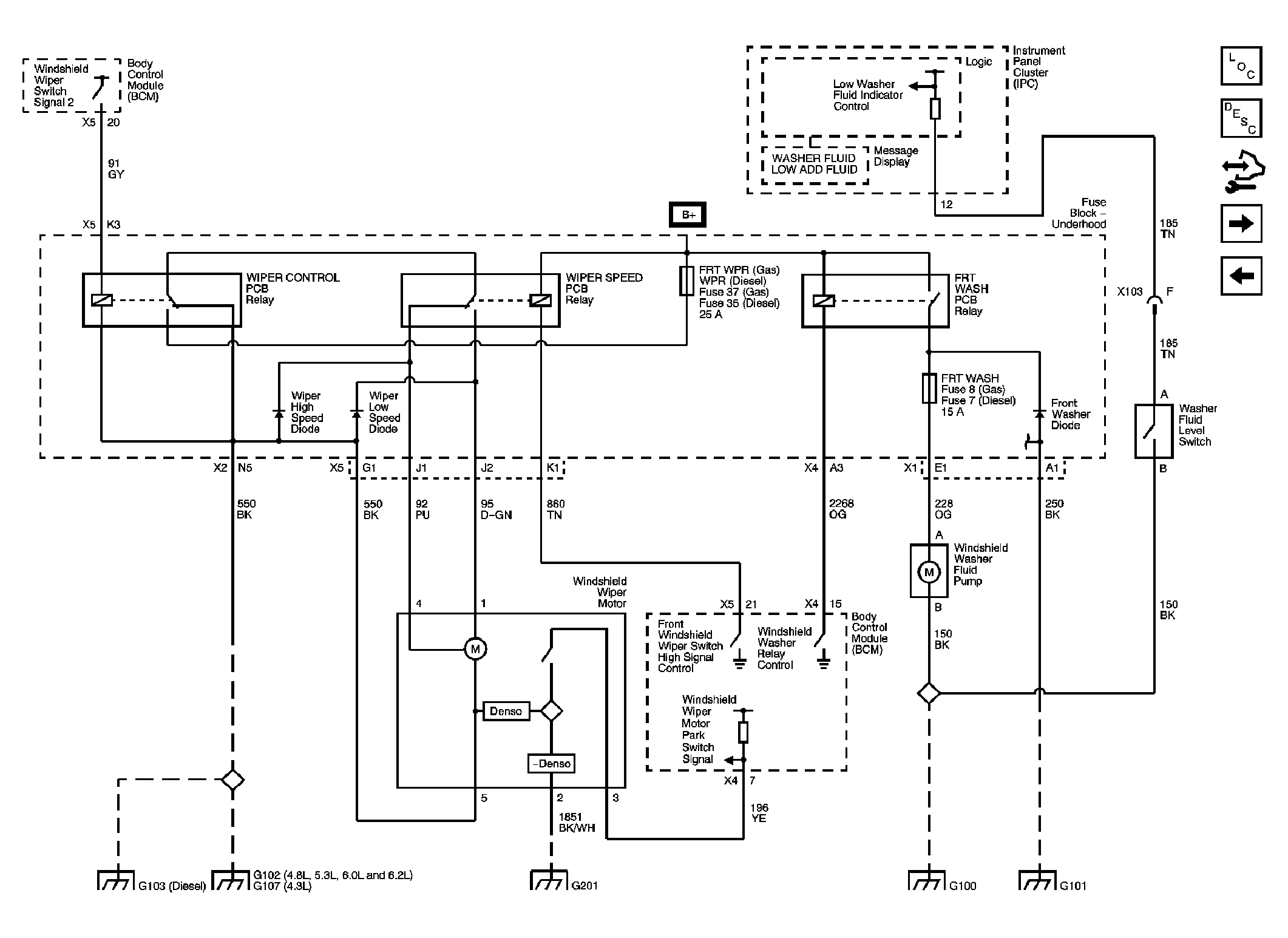

Fig 2: Wiper & Washer Motor Control Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Outside Moisture Sensor (CE1) Schematic

Courtesy of GENERAL MOTORS CORP.

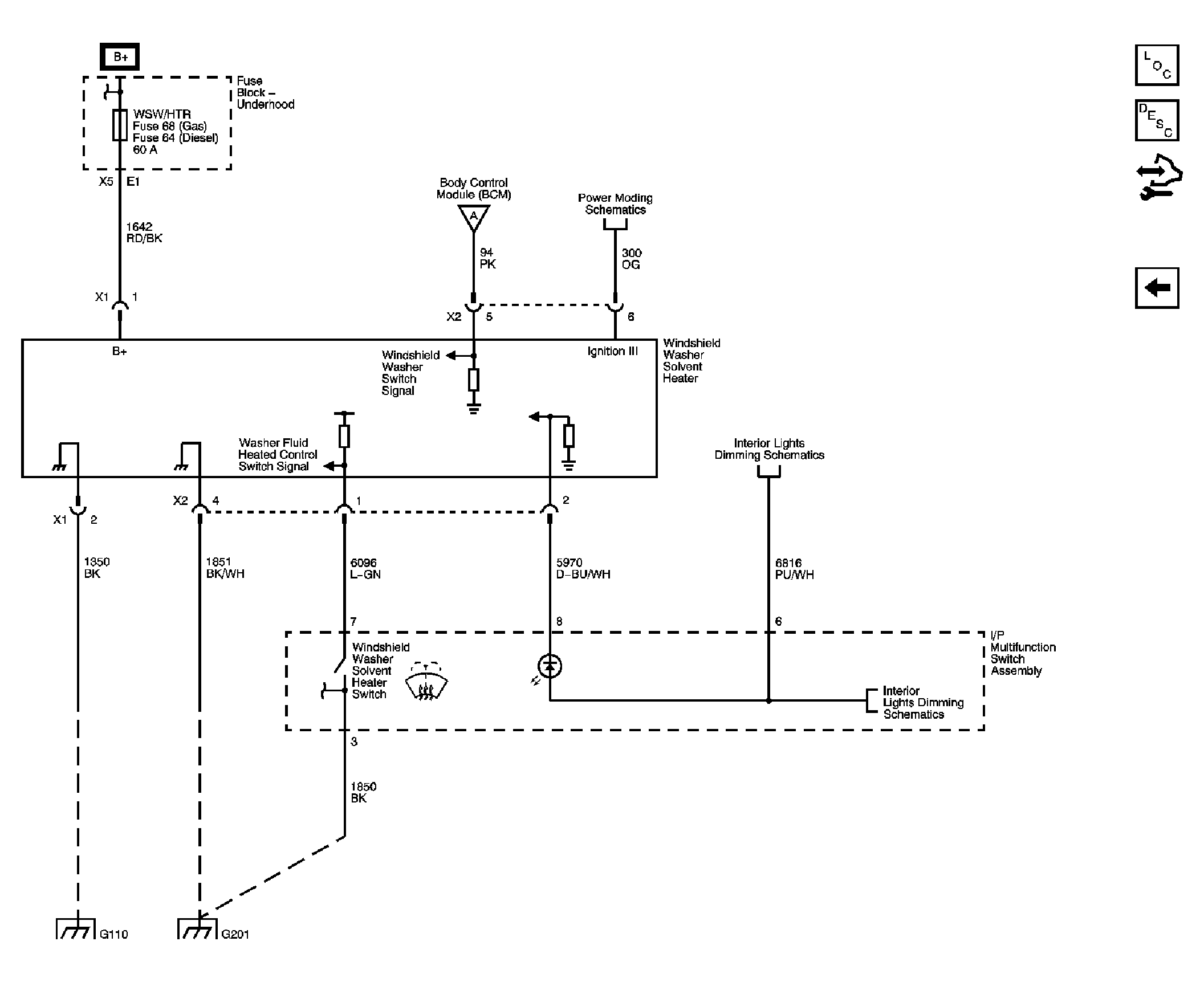

Fig 4: Heated Washers (XA7) Schematic

Courtesy of GENERAL MOTORS CORP.
