Hood Latch Replacement
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Hood Latch Replacement

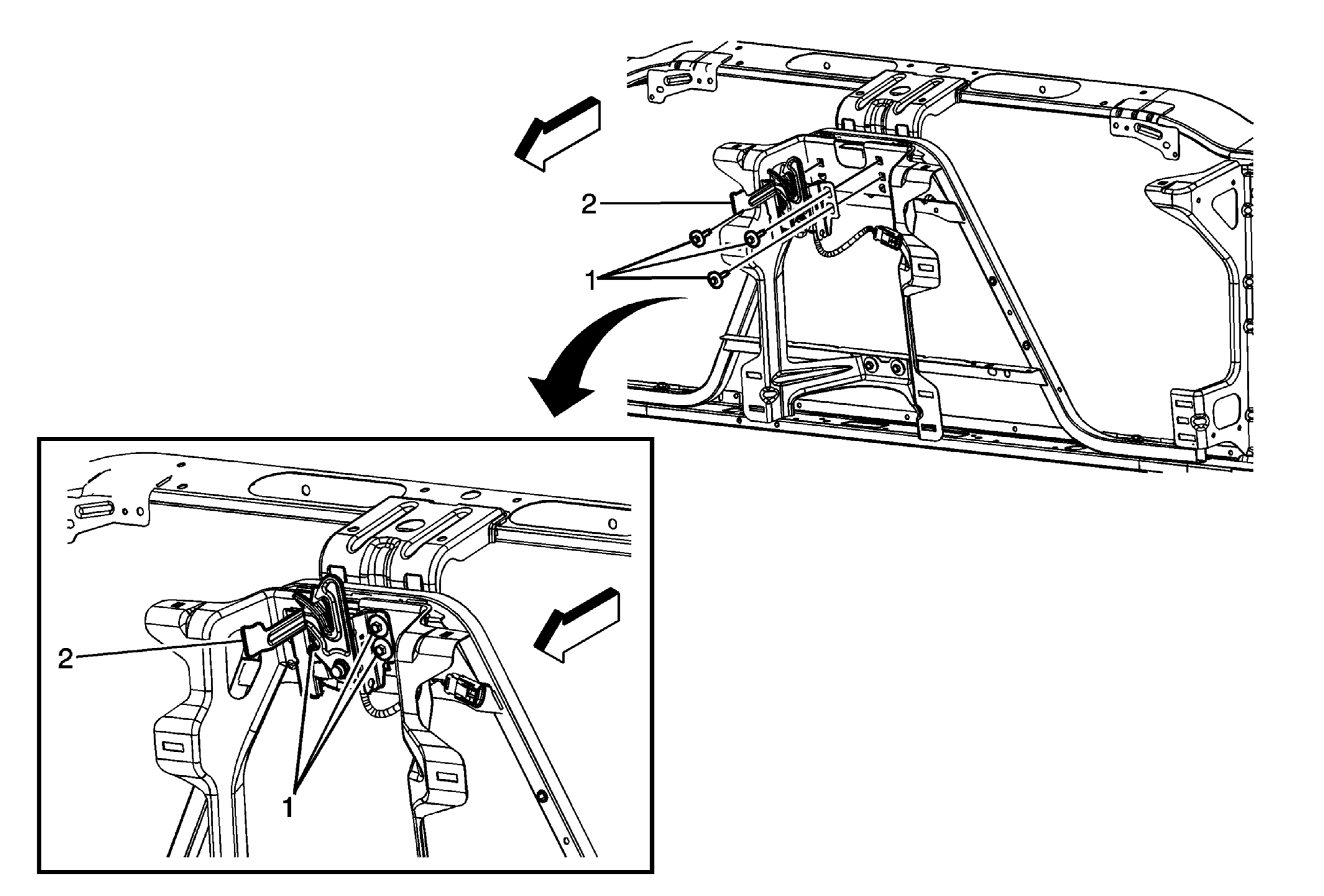

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the radiator air upper baffle/deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement |
|
| 1 | Hood Latch Bolts (Qty: 3)
NOTE:
Refer to Fastener Notice
. Tip: Use a grease pencil to mark the location of the hood latch before removing the bolts. Tighten: 9 N.m (80 lb in) |
| 2 | Hood Latch Tip: Disconnect any electrical connectors. |
