Moveable Window Schematics

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

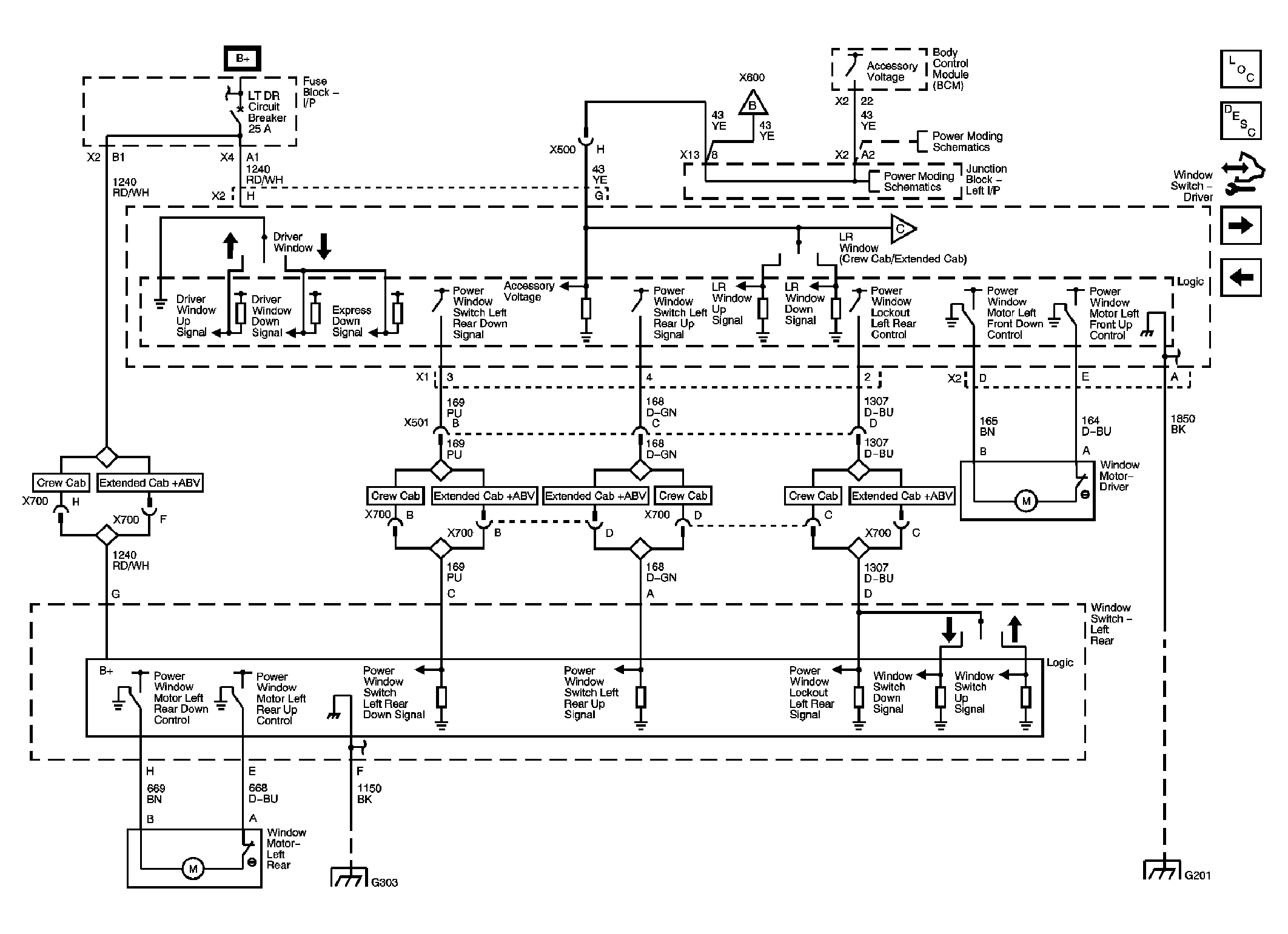

Fig 1: Left Doors (AN3/DL3) Schematic

Courtesy of GENERAL MOTORS CORP.

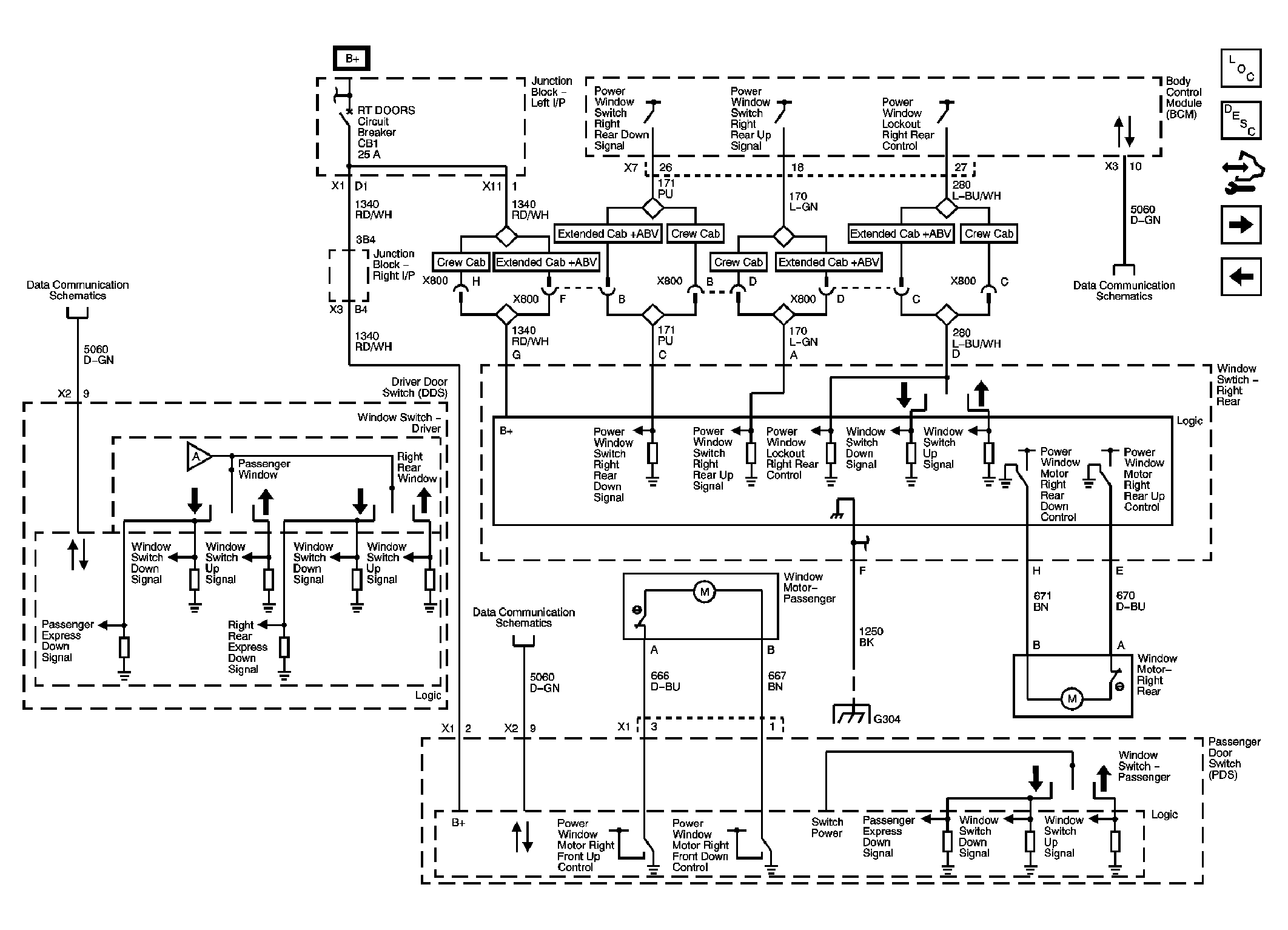

Fig 2: Right Doors (AN3/DL3) Schematic

Courtesy of GENERAL MOTORS CORP.

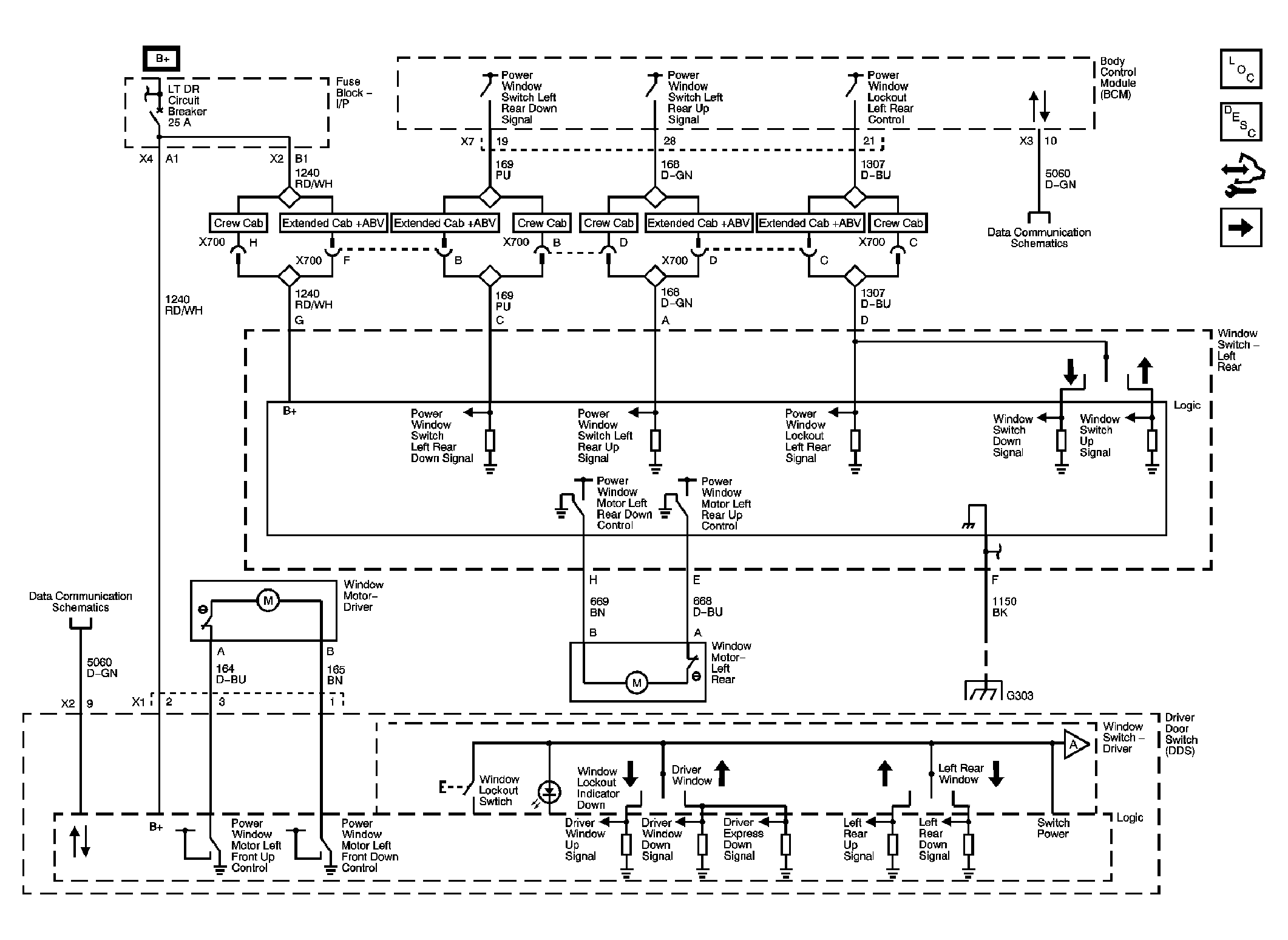

Fig 3: Left Doors (-AN3/DL3) Schematic

Courtesy of GENERAL MOTORS CORP.

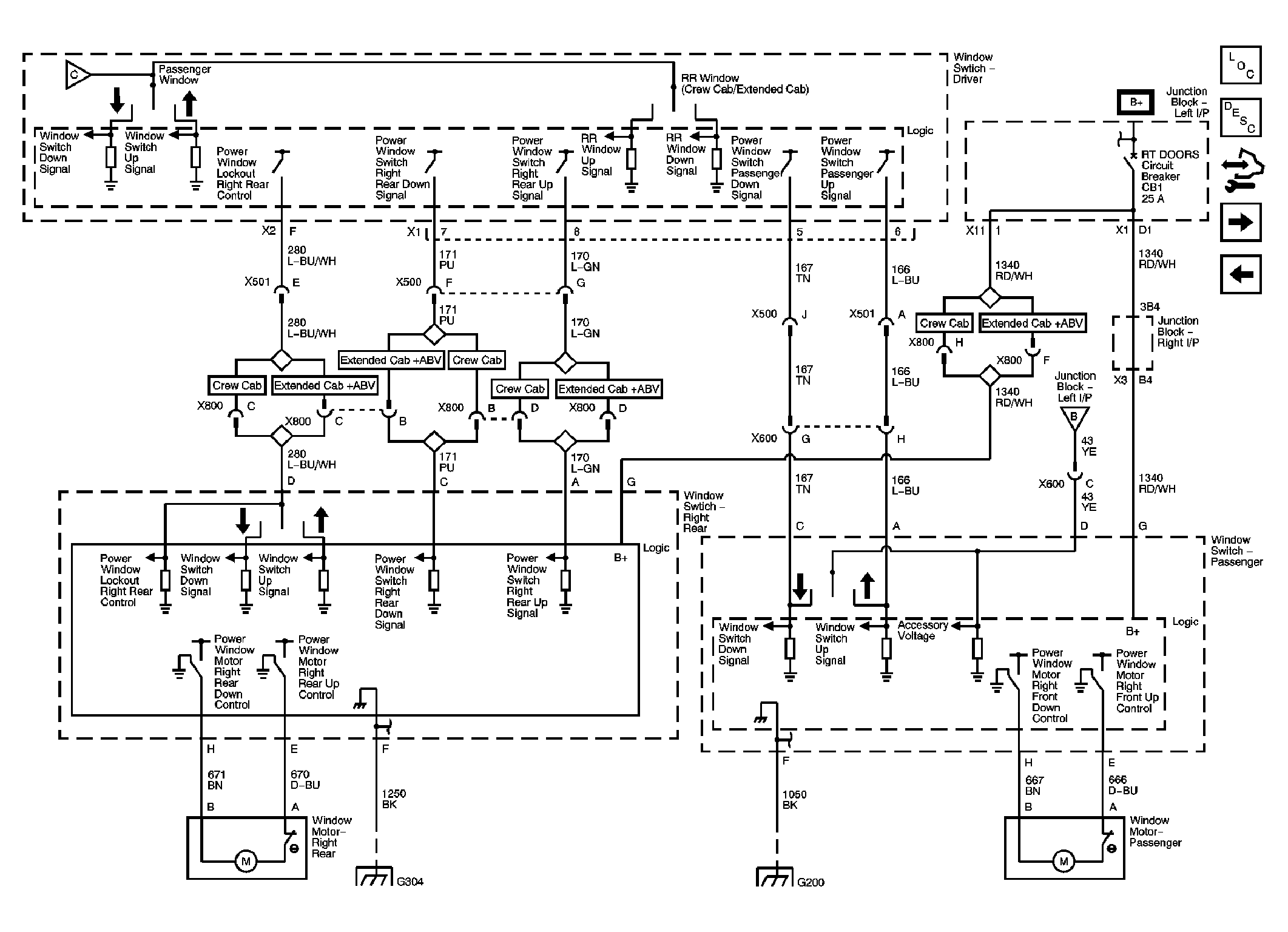

Fig 4: Right Doors (-AN3/DL3) Schematic

Courtesy of GENERAL MOTORS CORP.

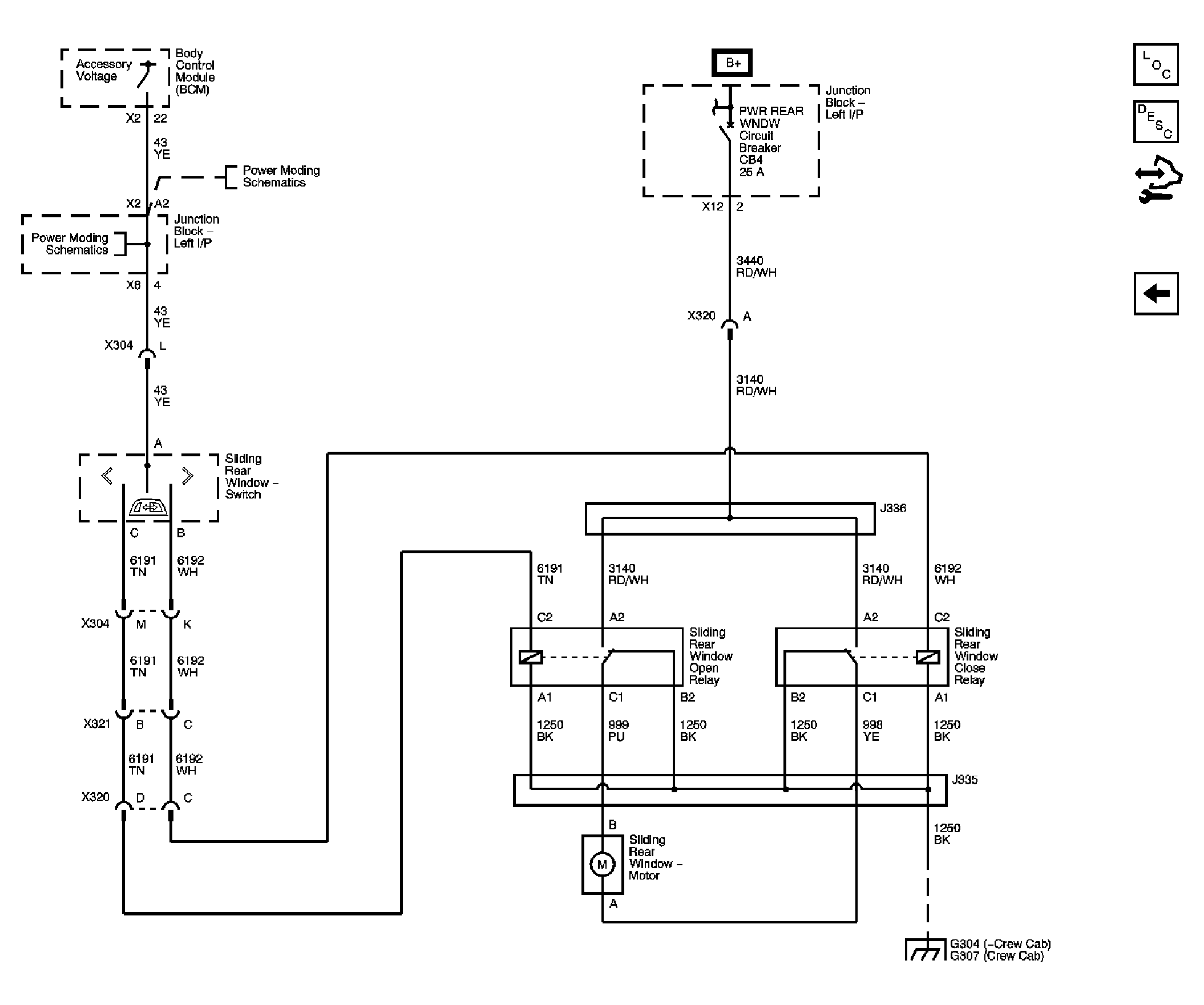

Fig 5: Sliding Rear Window (A48) Schematic

Courtesy of GENERAL MOTORS CORP.
