Audible Warnings Schematics

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

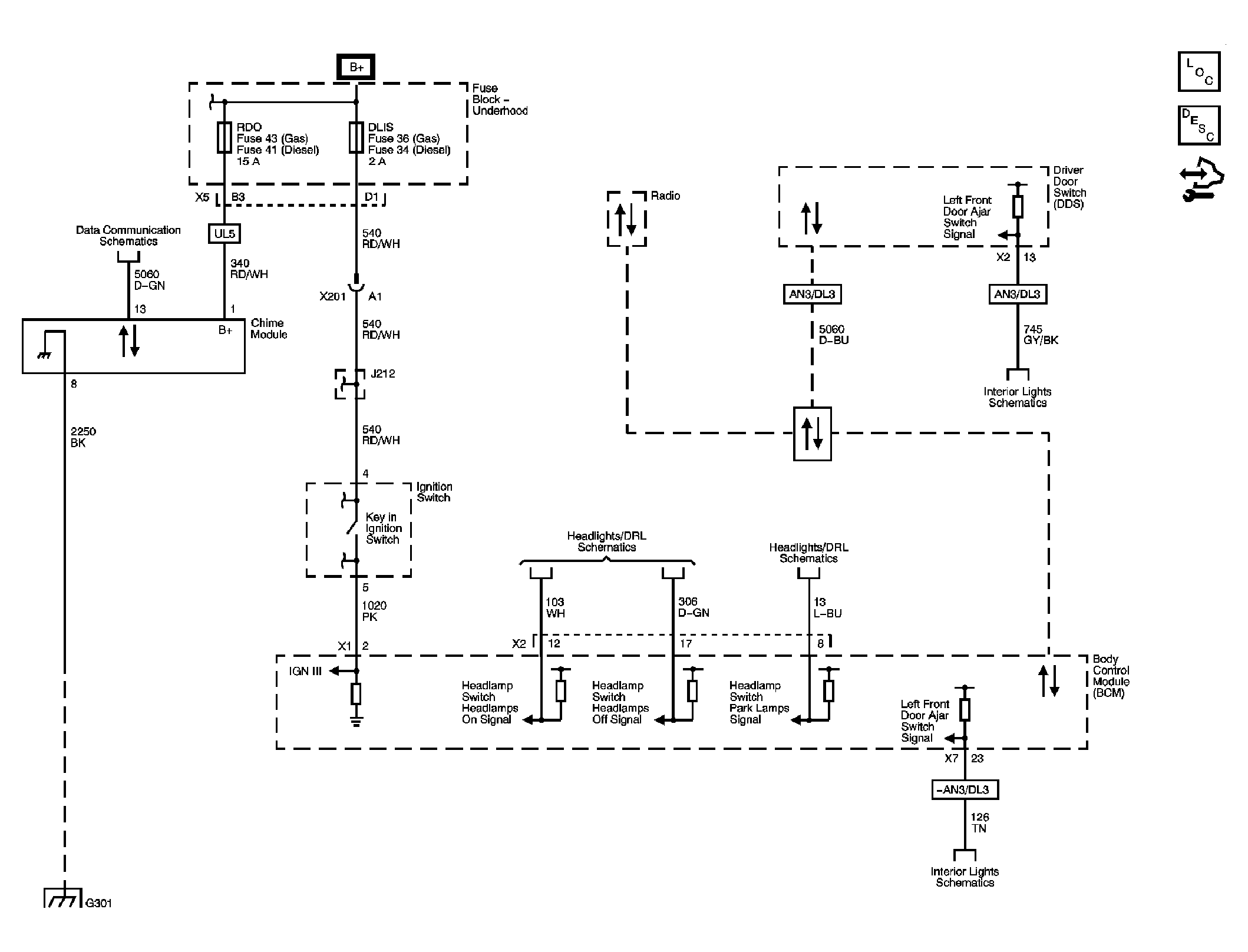

Fig 1: Audible Warnings Schematic
GM1846482Courtesy of GENERAL MOTORS CORP.
