Installation Procedure

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

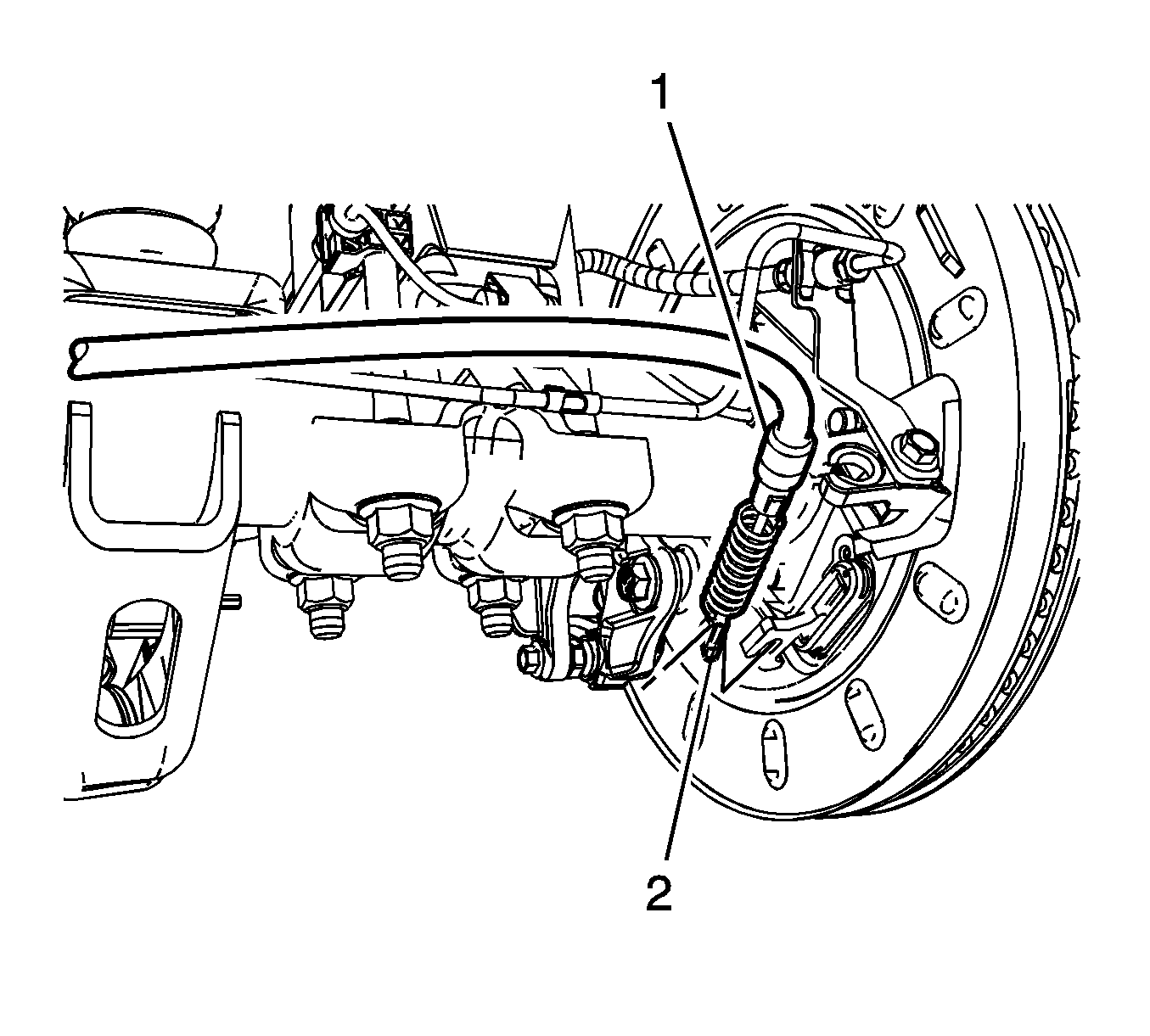

Fig 1: Park Brake Cable Conduit And Park Brake Cable Eye

Courtesy of GENERAL MOTORS CORP.

Connect the right park brake cable eye (2) to the park brake actuator lever.
Install the park brake cable to the rear axle bracket by pulling the cable conduit (1) rearward and inserting the cable conduit into the rear axle bracket.
Ensure the locking tabs on the cable conduit are fully engaged into the rear axle bracket.

Fig 2: Park Brake Cable Mounting

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the park brake cable clip bolt (2).
Tighten: Tighten the bolt to 22 N.m (16 lb ft).
Connect the park brake cable (1) to the rear axle housing cover clip.

Fig 3: Right Park Brake Cable And Intermediate Cable Equalizer Bar

Courtesy of GENERAL MOTORS CORP.

Connect the right rear park brake cable (1) to the intermediate cable equalizer bar (2).
Insert the park brake cable conduit (3) into the frame bracket.
Ensure the locking tabs on the cable conduit are fully engaged into the frame bracket.
Enable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Enabling .
Adjust the park brake. Refer to Park Brake Adjustment (Disc Brake) or Park Brake Adjustment (Drum Brake) .
