Installation Procedure

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

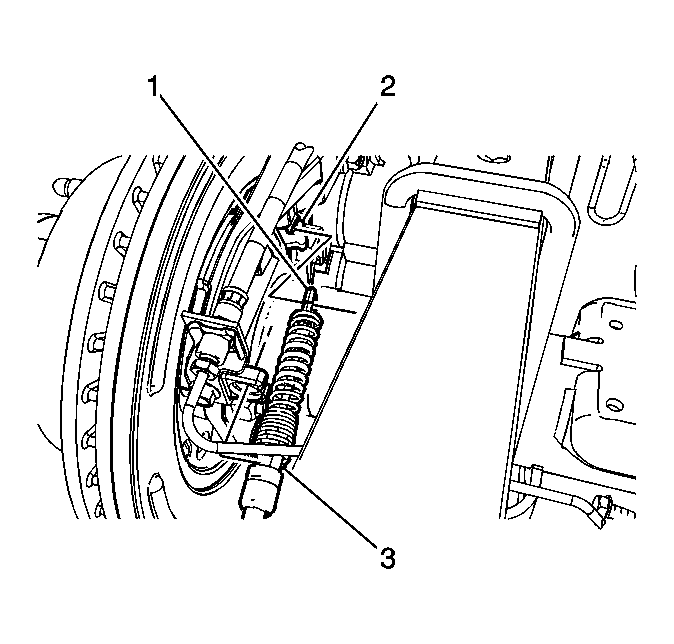

Fig 1: Park Brake Cable Eye And Park Brake Actuator Lever

Courtesy of GENERAL MOTORS CORP.

Connect the left park brake cable eye (1) to the park brake actuator lever (2).
Install the park brake cable to the rear axle bracket by pulling the cable conduit (3) rearward to compress the spring and inserting the cable conduit into the rear axle bracket.
Ensure the locking tabs on the cable conduit are fully engaged into the rear axle bracket.

Fig 2: Park Brake Cable Clip Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the park brake cable clip bolt.
Tighten: Tighten the bolt to 22 N.m (16 lb ft).

Fig 3: Left Rear Cable

Courtesy of GENERAL MOTORS CORP.

Insert the park brake cable conduit (2) into the equalizer (3).
Ensure the locking tabs on the cable conduit are fully engaged into the equalizer.
Connect the left rear park brake cable to the intermediate cable connector (1).
Enable the park brake cable automatic adjuster. Refer to Parking Brake Cable Adjuster Enabling .
Adjust the park brake. Refer to Park Brake Adjustment (Disc Brake) or Park Brake Adjustment (Drum Brake) .
