Interior Lights Schematics

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Inadvertent Lamp Control

Courtesy of GENERAL MOTORS CORP.

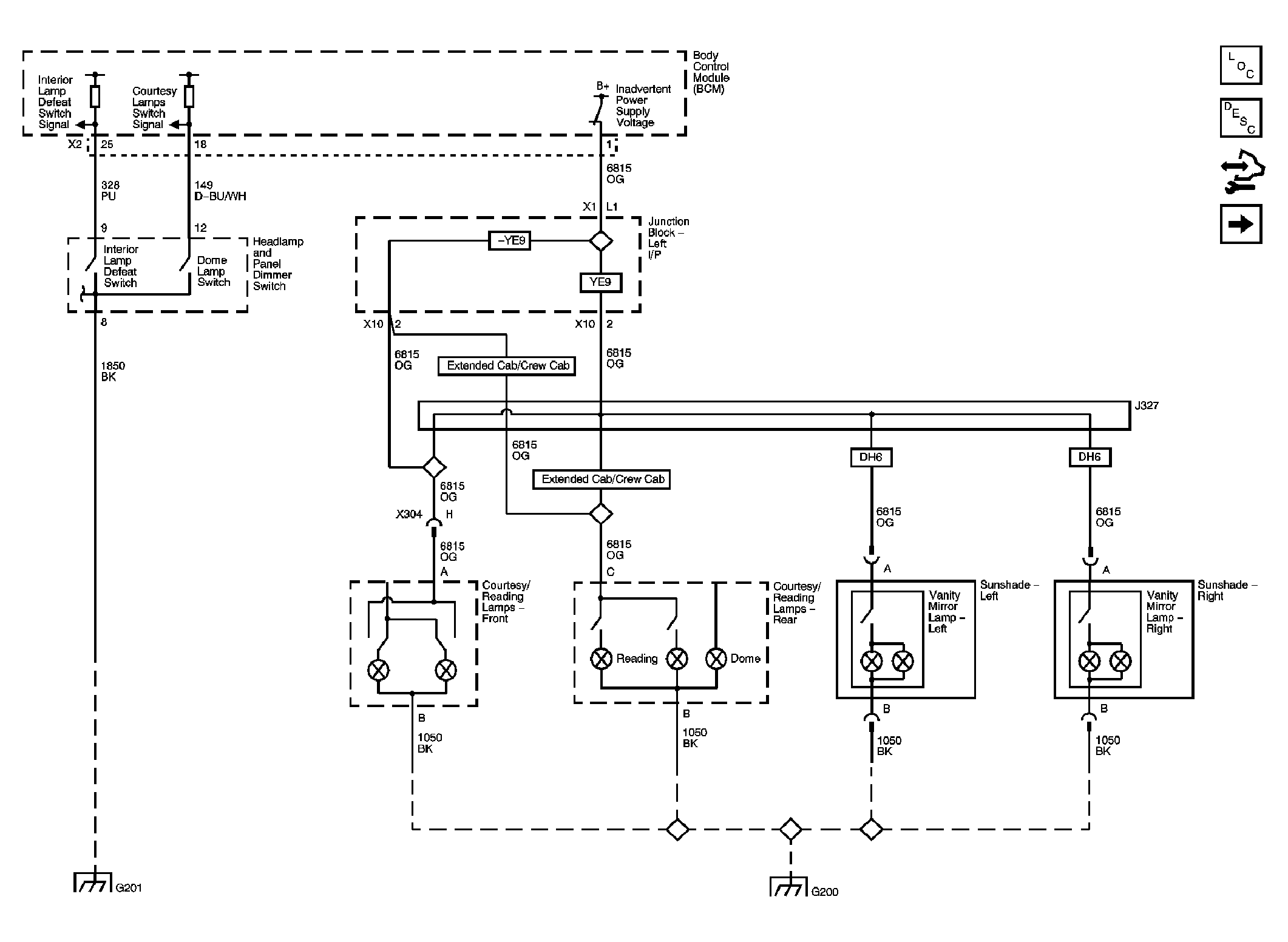

Fig 2: Courtesy Lamp Control

Courtesy of GENERAL MOTORS CORP.

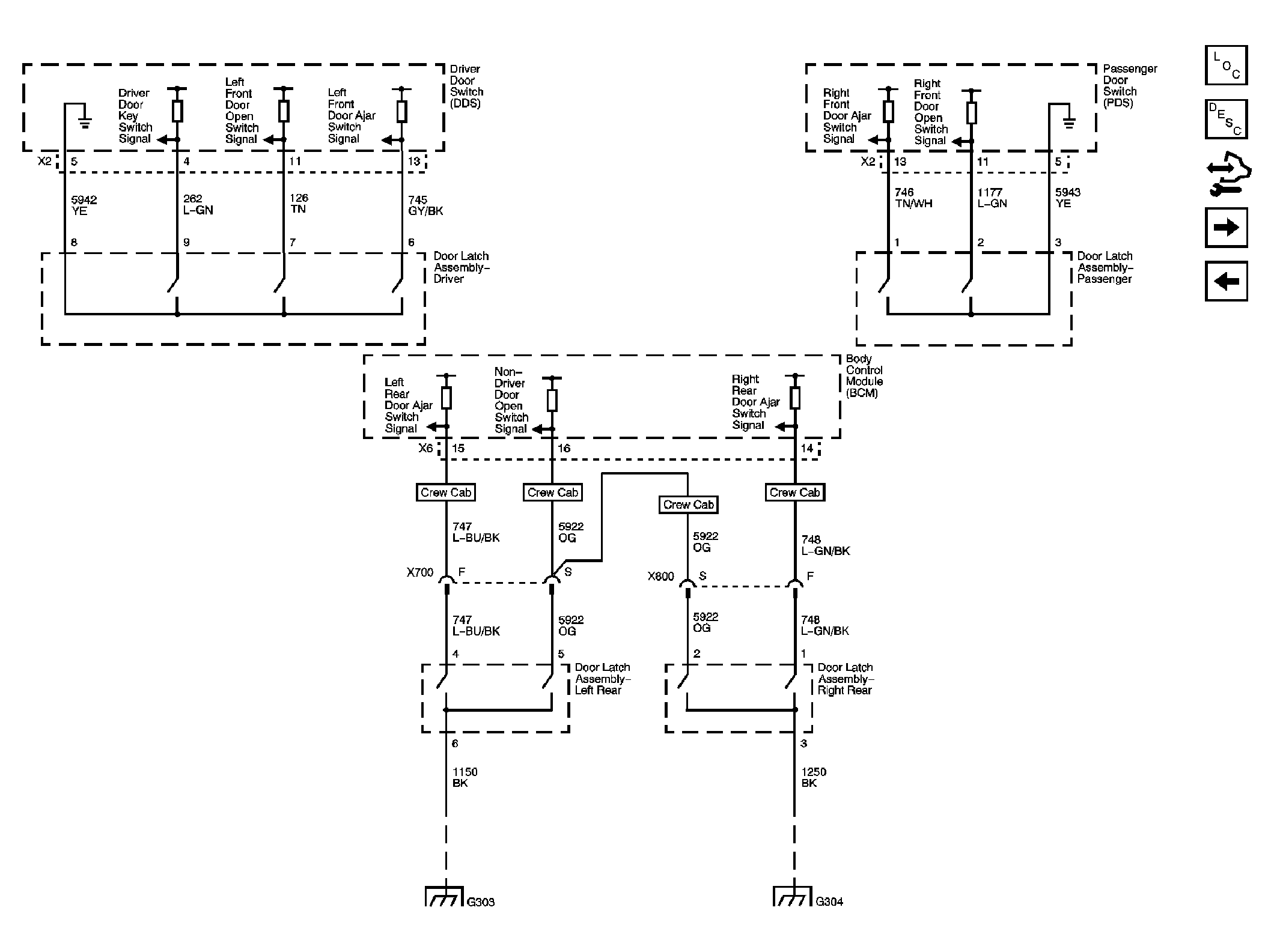

Fig 3: Door Jamb Switches (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

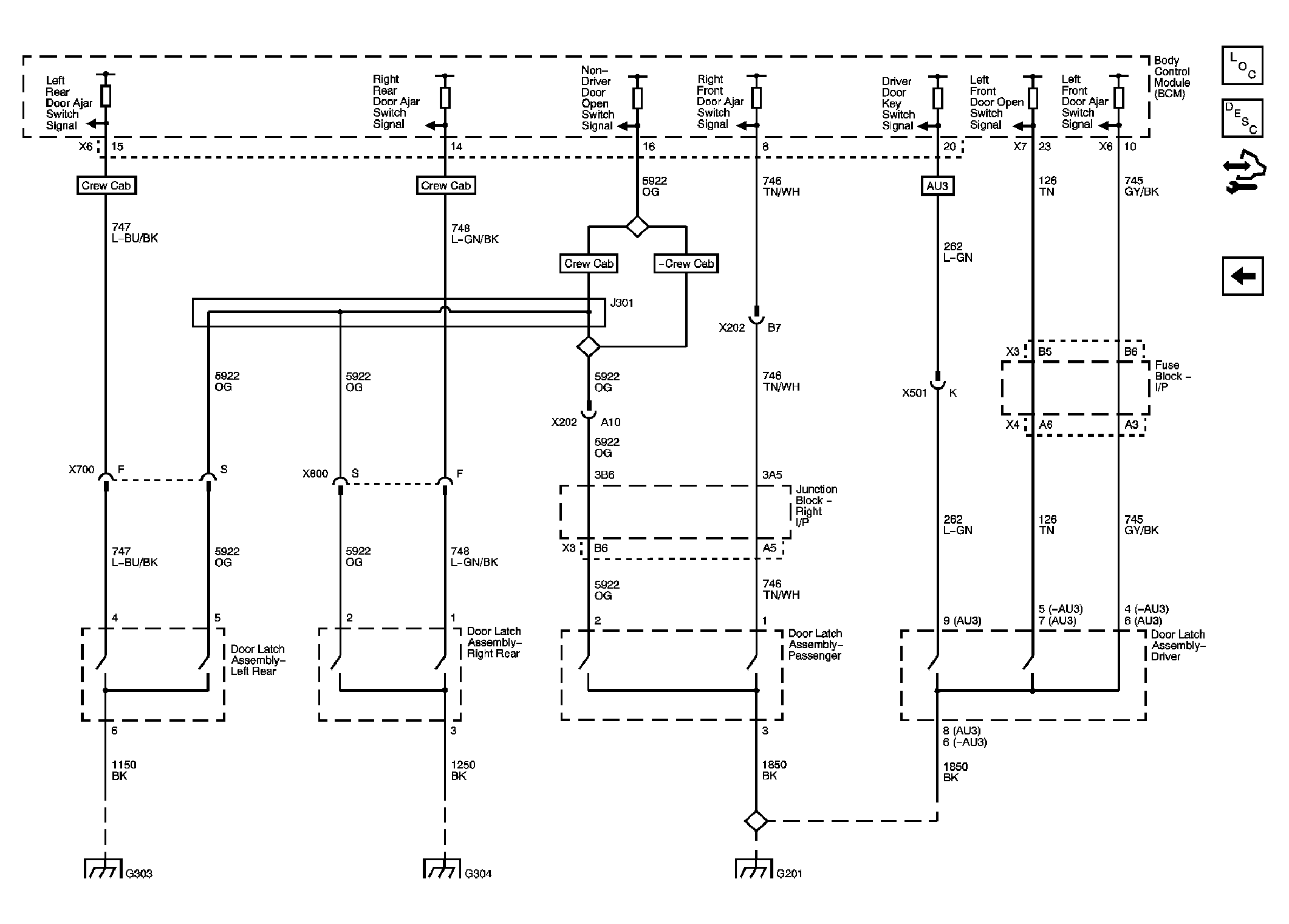

Fig 4: Door Jamb Switches (-AN3/DL3)

Courtesy of GENERAL MOTORS CORP.
