Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Headlight and Daytime Running Light Controls

Courtesy of GENERAL MOTORS CORP.

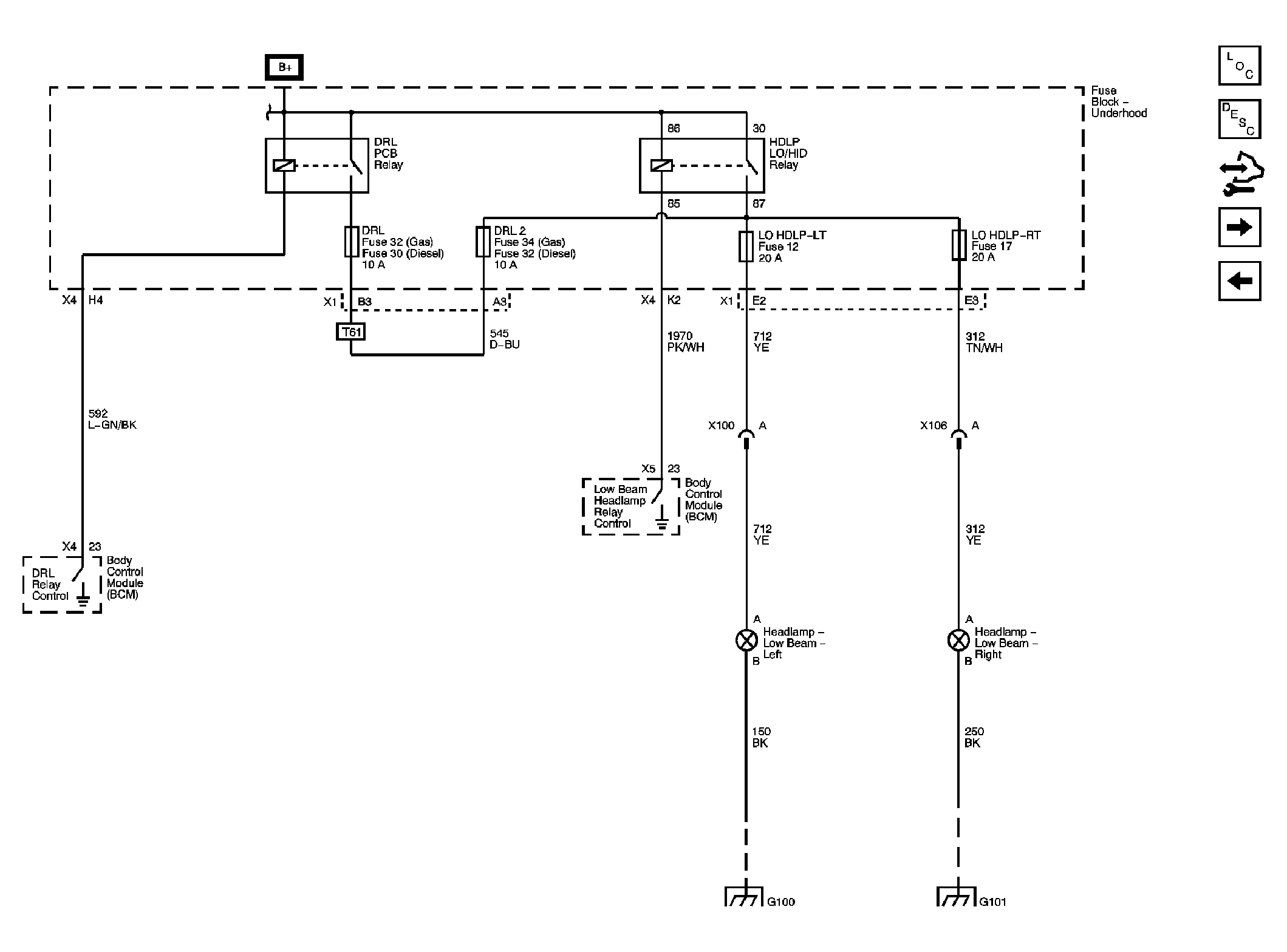

Fig 2: Low Beam and Daytime Running Lights

Courtesy of GENERAL MOTORS CORP.

Fig 3: High Beams

Courtesy of GENERAL MOTORS CORP.
