Seat Belt Replacement - Center Front

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

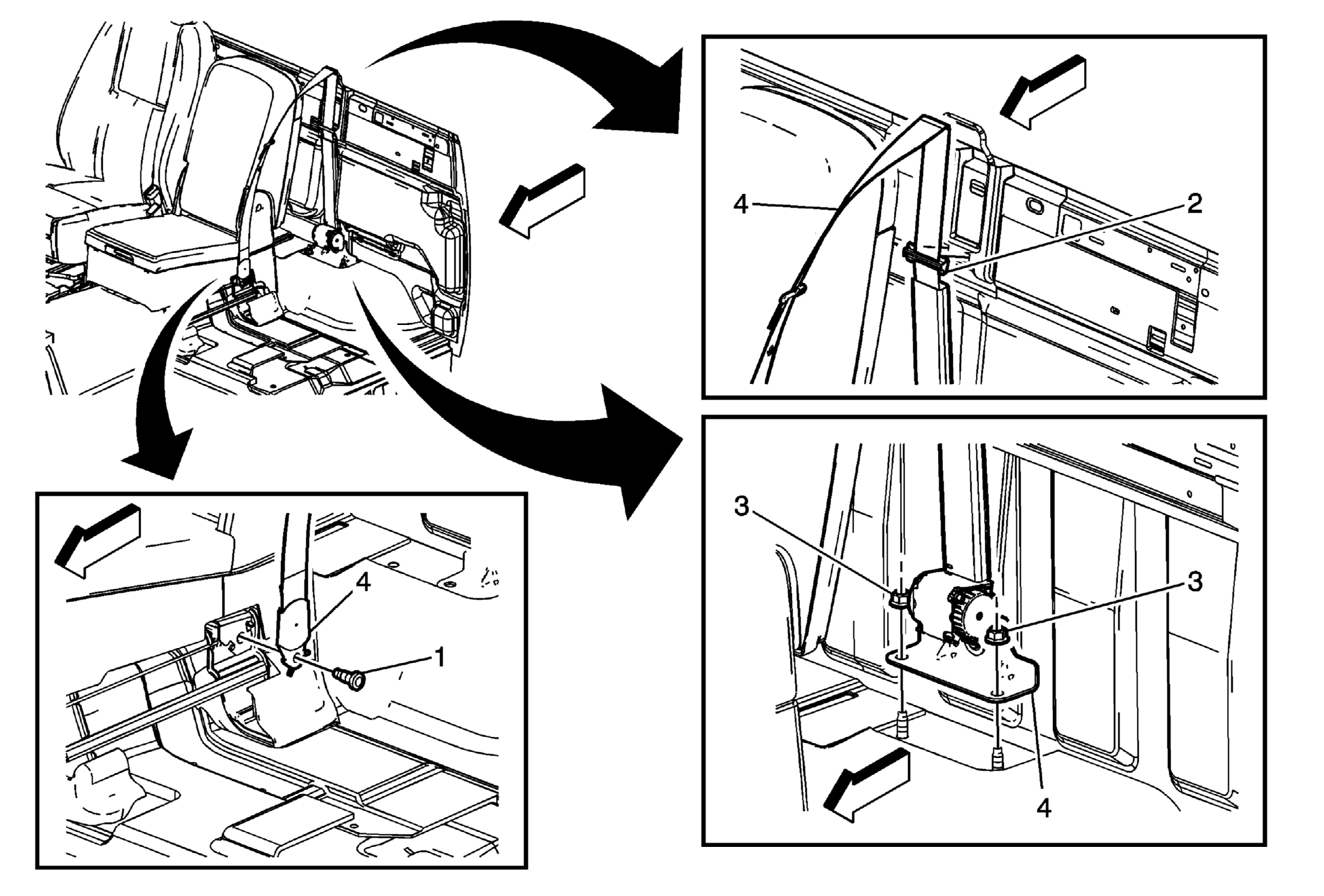

Fig 1: View Of Seat Belt - Center Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . CAUTION: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflatable restraint seat belt pretensioner as normal shop waste. Undeployed seat belt pretensioners contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed seat belt pretensioner. Failure to observe the following disposal methods may be a violation of federal, state, or local laws. Preliminary Procedure Remove the driver seat. Refer to Front Seat Replacement - Bucket . Remove the jack stowage cover. Refer to Jack Stowage Cover Replacement . Remove the rear window lower trim. Refer to Rear Window Lower Garnish Molding Replacement (Regular Cab) or Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/A48) or Rear Window Lower Garnish Molding Replacement (Ext Cab/Crew Cab w/o A48) . Remove the rear inner panel carpet. Refer to Body Rear Inner Panel Carpet Replacement .
1	Front Center Seat Belt Anchor Plate Bolt NOTE: Refer to Fastener Notice . Tighten: 43 N.m (32 lb ft)
2	Front Center Seat Shoulder Belt Guide
3	Front Center Seat Belt Retractor Nut (Qty: 2) Tip: Position carpet in order to access nuts. Tighten: 43 N.m (32 lb ft)
4	Front Center Seat Shoulder Belt Retractor Assembly Tip: Disconnect electrical connector.
