Rear Seat Center Belt Buckle Replacement (Ext Cab w/A68)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

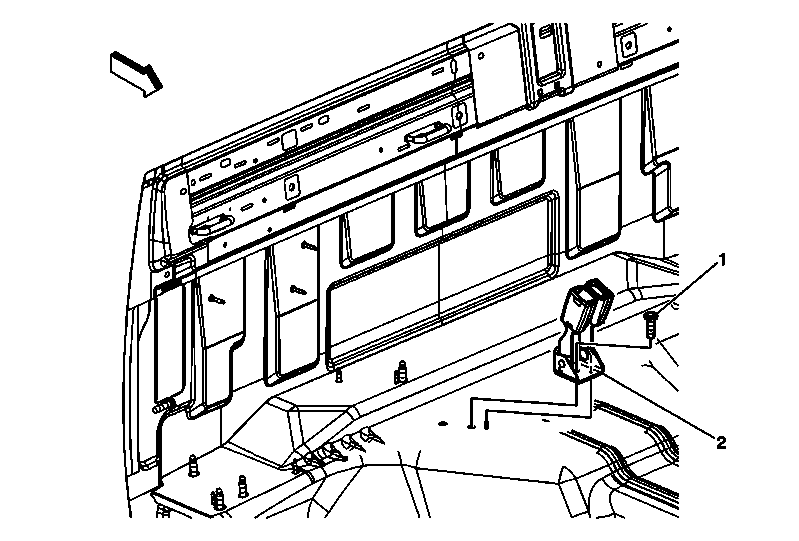

Fig 1: View Of Rear Seat Center Belt Buckle (Ext Cab w/A68)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Buckle Bolt NOTE: Refer to Fastener Notice . Tip: Fold the rear seat cushion up to access the buckle assembly and bolt. Tighten: 53 N.m (39 lb ft)
2	Rear Seat Buckle Assembly
