Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the battery negative cable from the battery negative terminal. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Raise the vehicle.
  3. Disconnect the auxiliary battery positive and negative cables. Refer to Battery Positive Cable Replacement - Auxiliary  and Battery Negative Cable Replacement - Auxiliary  .
  4. Remove the auxiliary battery hold-down retainer bolt.
  5. Remove the auxiliary battery from the auxiliary battery tray.

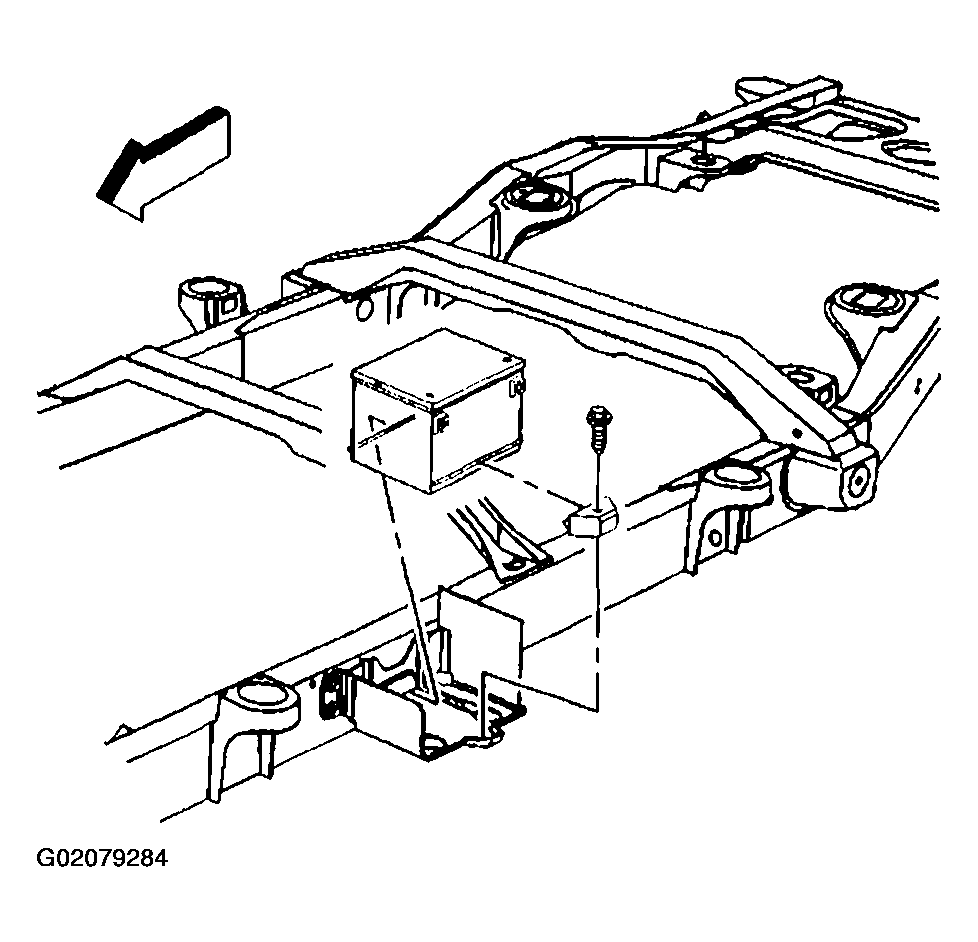

    Fig 1: Removing Hold-Down Retainer Bolt & Auxiliary Battery
    G02079284Courtesy of GENERAL MOTORS CORP.
  6. Remove the auxiliary battery hold-down tray bolts.
  7. Remove the auxiliary battery tray from the vehicle.

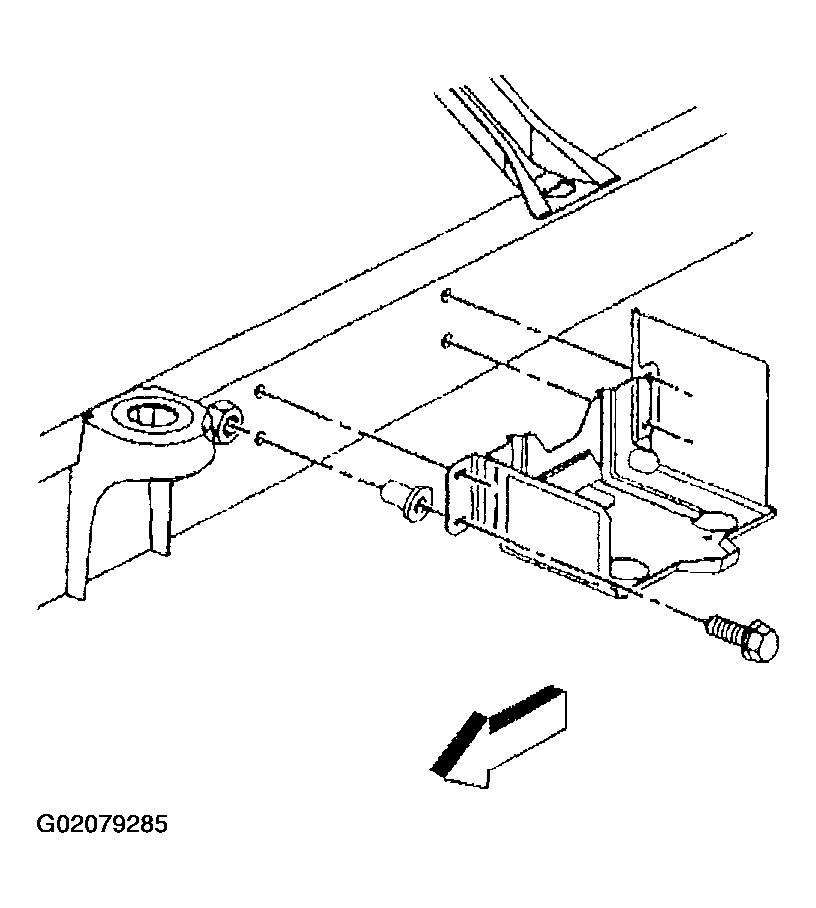

    Fig 2: Removing Hold-Down Tray Bolts & Auxiliary Battery Tray
    G02079285Courtesy of GENERAL MOTORS CORP.
