Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable from the negative battery terminal. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Raise the vehicle.
  3. Disconnect the auxiliary negative cable from the battery terminal.
  4. Disconnect the auxiliary battery positive cable from the battery terminal.

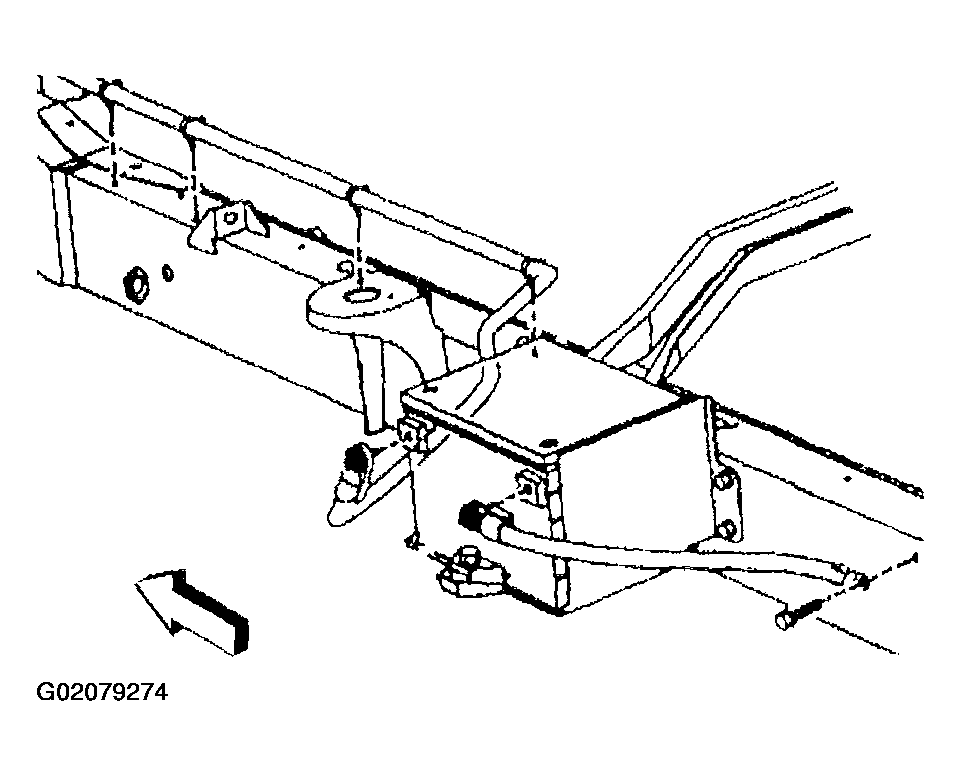

    Fig 1: Disconnecting Auxiliary Negative & Positive Cables
    G02079274Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery hold down retaining bolt.
  6. Remove the battery from the tray.

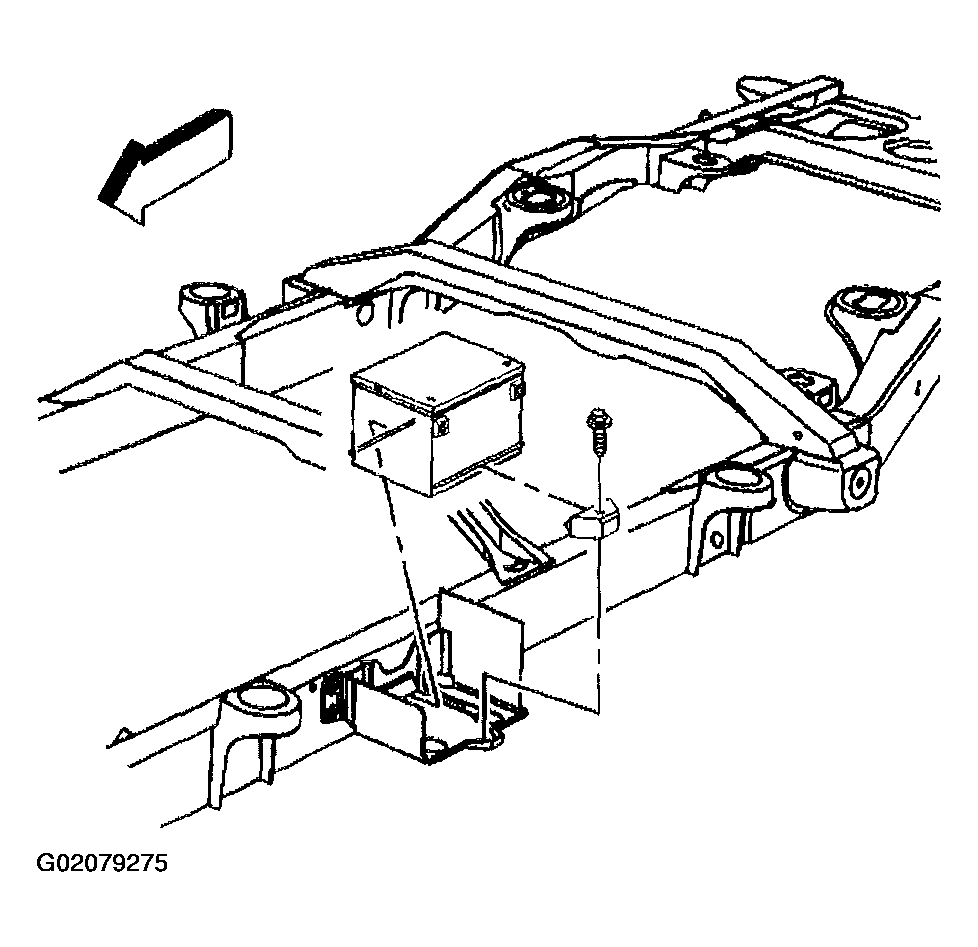

    Fig 2: Removing Battery Hold Down Retaining Bolt & Battery
    G02079275Courtesy of GENERAL MOTORS CORP.
