Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery into the battery tray.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the battery hold-down retainer and bolt.

    Tighten

    Tighten the battery hold-down retainer bolt to 25 N.m (18 lb ft).

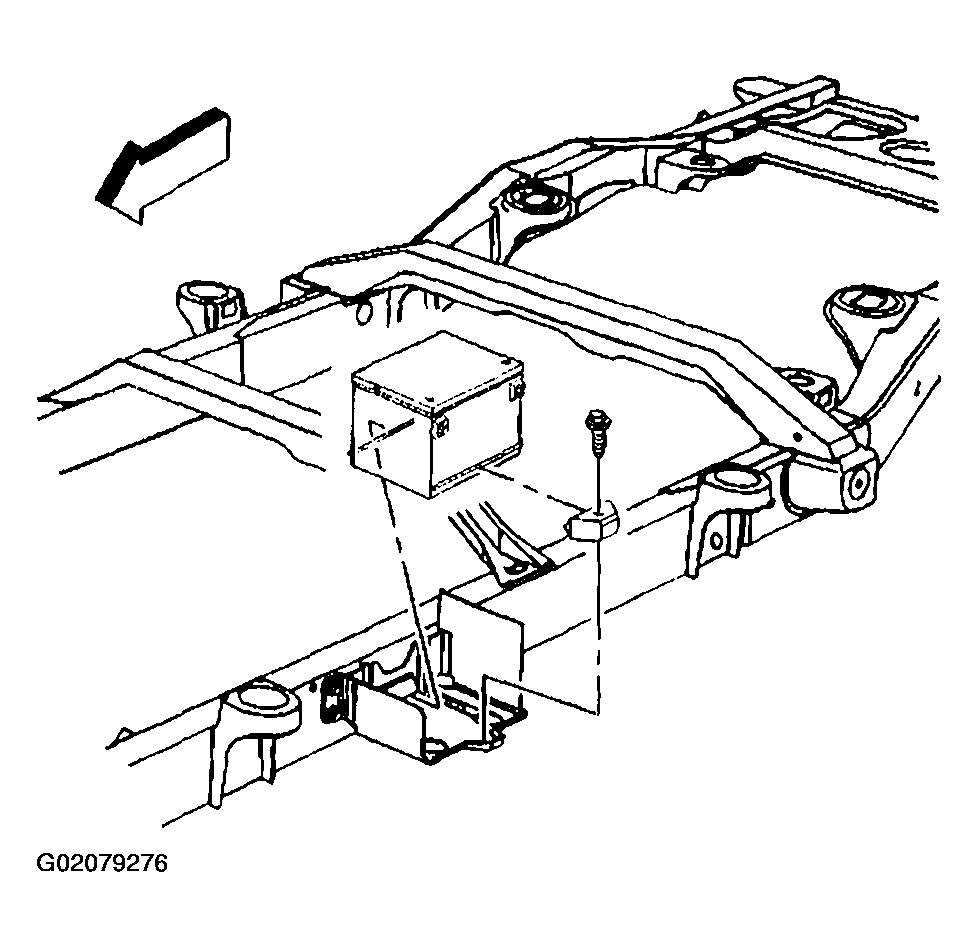

    Fig 1: Installing Battery & Hold-Down Retainer
    G02079276Courtesy of GENERAL MOTORS CORP.
  3. Connect the auxiliary battery positive and negative cables to the battery.

    Tighten

    Tighten the auxiliary battery cables to 15 N.m (11 lb ft).

  4. Lower the vehicle.
  5. Connect the battery negative cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .

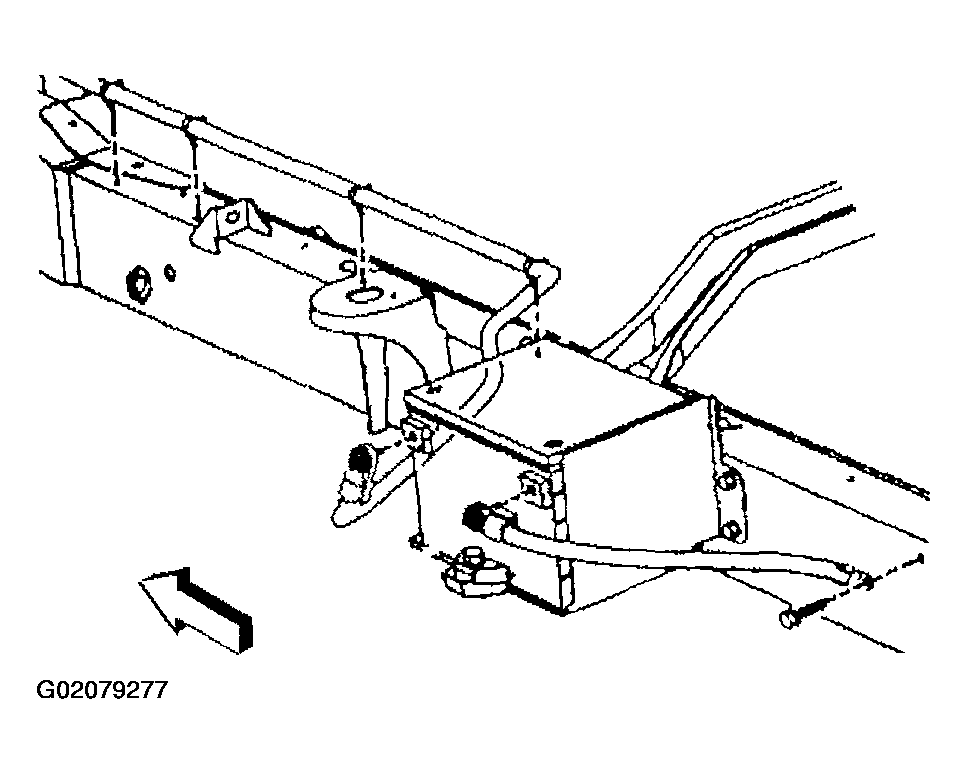

    Fig 2: Connecting Auxiliary Battery Positive & Negative Cables
    G02079277Courtesy of GENERAL MOTORS CORP.
