Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the battery negative cable from the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the battery negative cable from the auxiliary battery.
  3. Disconnect the battery positive cable from the junction block.
  4. Raise the vehicle.

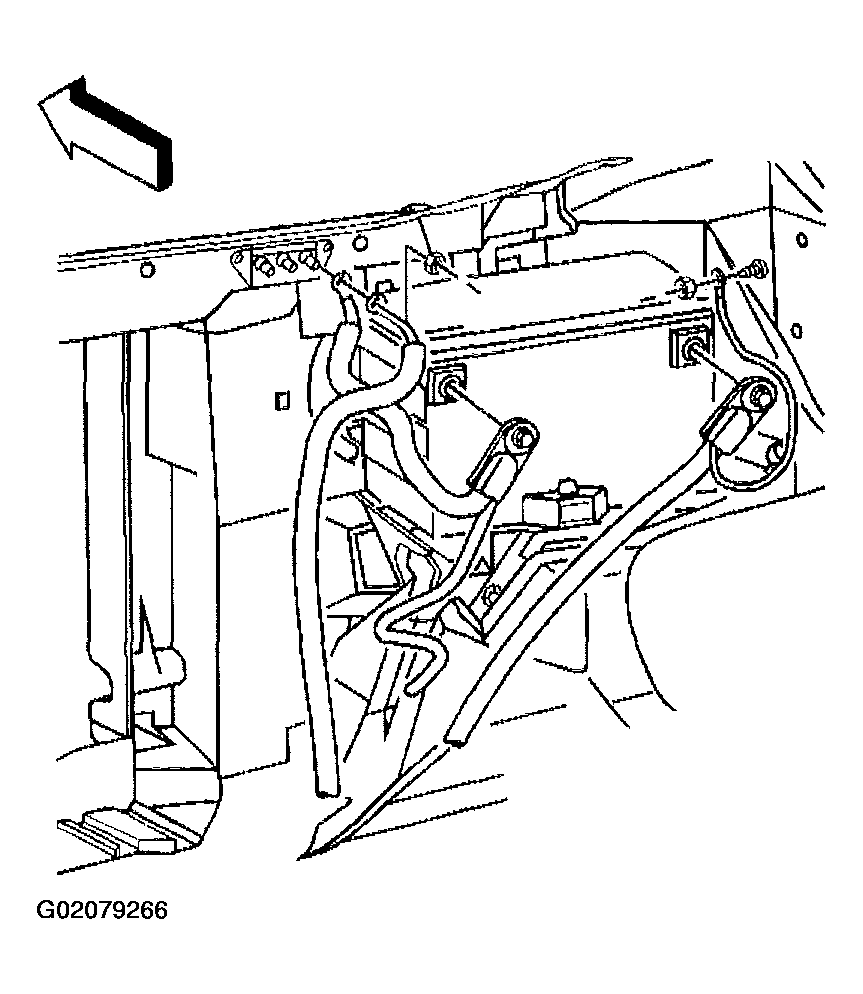

    Fig 1: Disconnecting Battery Negative Cable From Auxiliary Battery
    G02079266Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery positive cable retainers from the frame.
  6. Disconnect the battery positive cable from the auxiliary battery.
  7. Remove the battery positive cable from the vehicle.

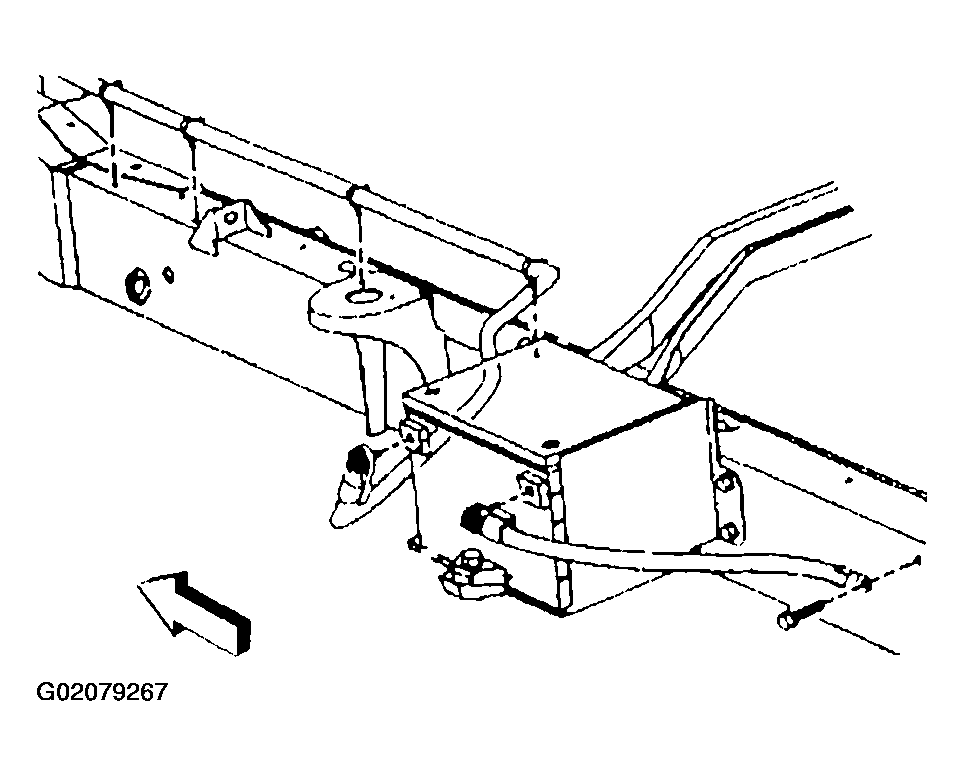

    Fig 2: Disconnecting Battery Positive Cable From Auxiliary Battery
    G02079267Courtesy of GENERAL MOTORS CORP.
