Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery positive cable to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Connect the battery positive cable to the auxiliary battery.

    Tighten

    Tighten the auxiliary battery positive cable to 15 N.m (11 lb ft).

  3. Install the battery positive cable retainers to the frame.
  4. Lower the vehicle.

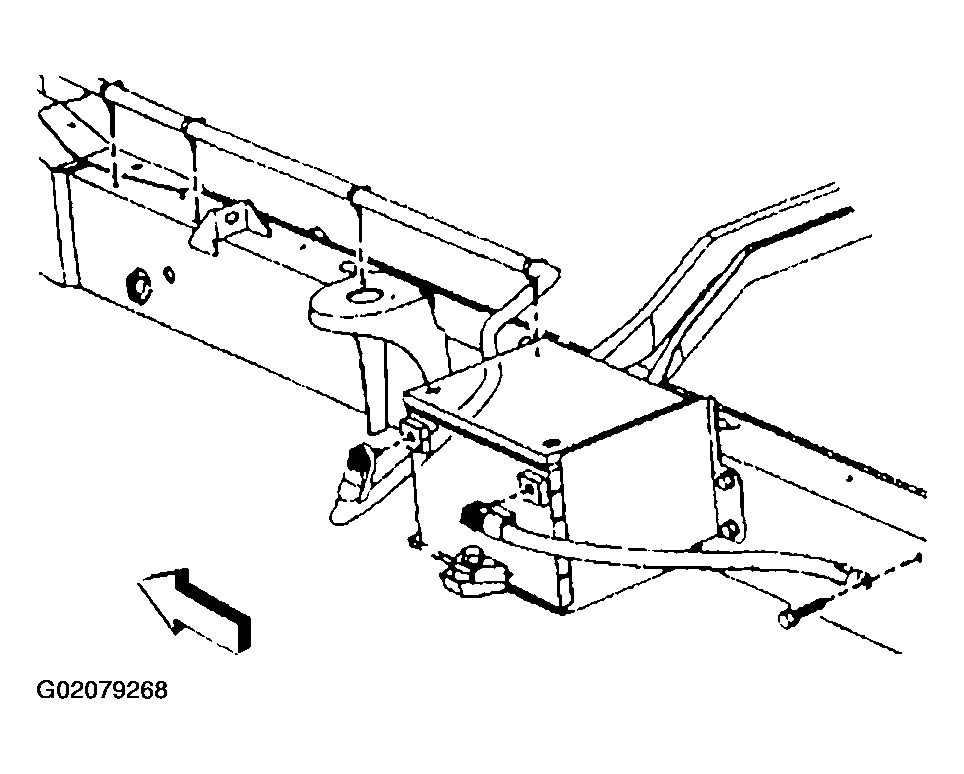

    Fig 1: Connecting Battery Positive Cable To Auxiliary Battery
    G02079268Courtesy of GENERAL MOTORS CORP.
  5. Connect the battery positive cable to the junction block.

    Tighten

    Tighten the nut to 10 N.m (89 lb in).

  6. Connect the battery negative cable to the auxiliary battery.

    Tighten

    Tighten the bolt to 15 N.m (11 lb ft).

  7. Connect the battery negative cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .

    Tighten

    Tighten the bolt to 17 N.m (13 lb ft).

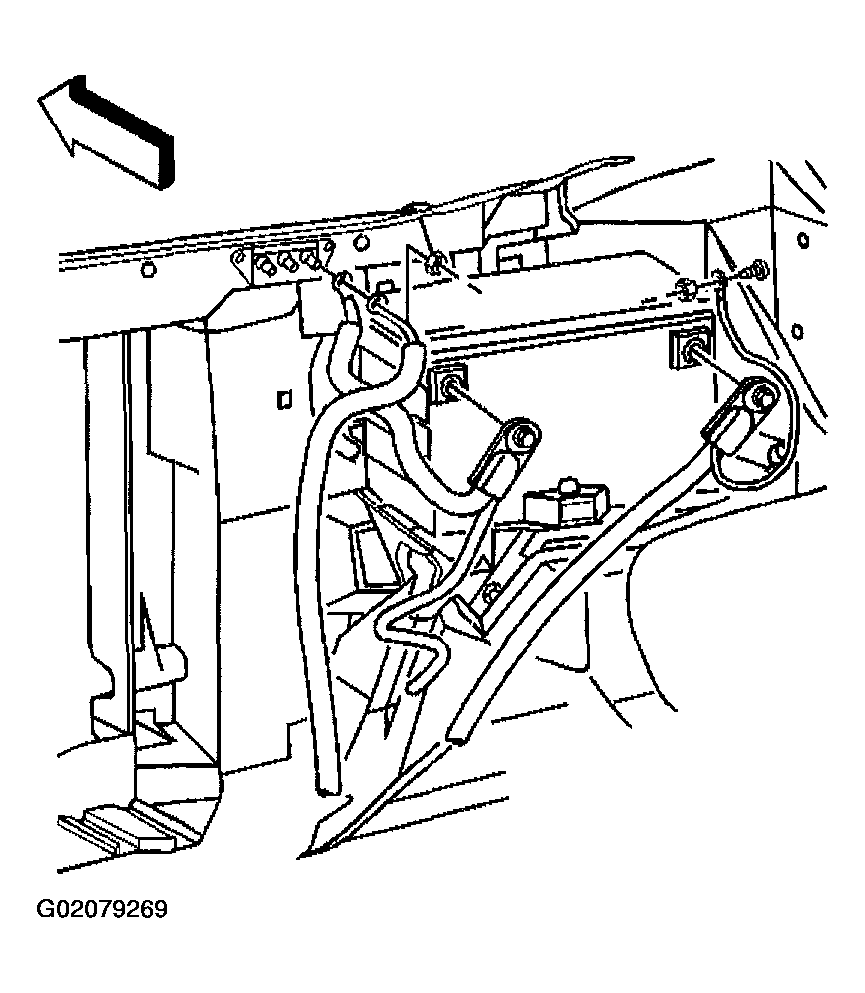

    Fig 2: Connecting Battery Negative Cable To Auxiliary Battery
    G02079269Courtesy of GENERAL MOTORS CORP.
