Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Install the battery negative cable to the vehicle.CAUTION: Refer to FASTENER NOTICE .

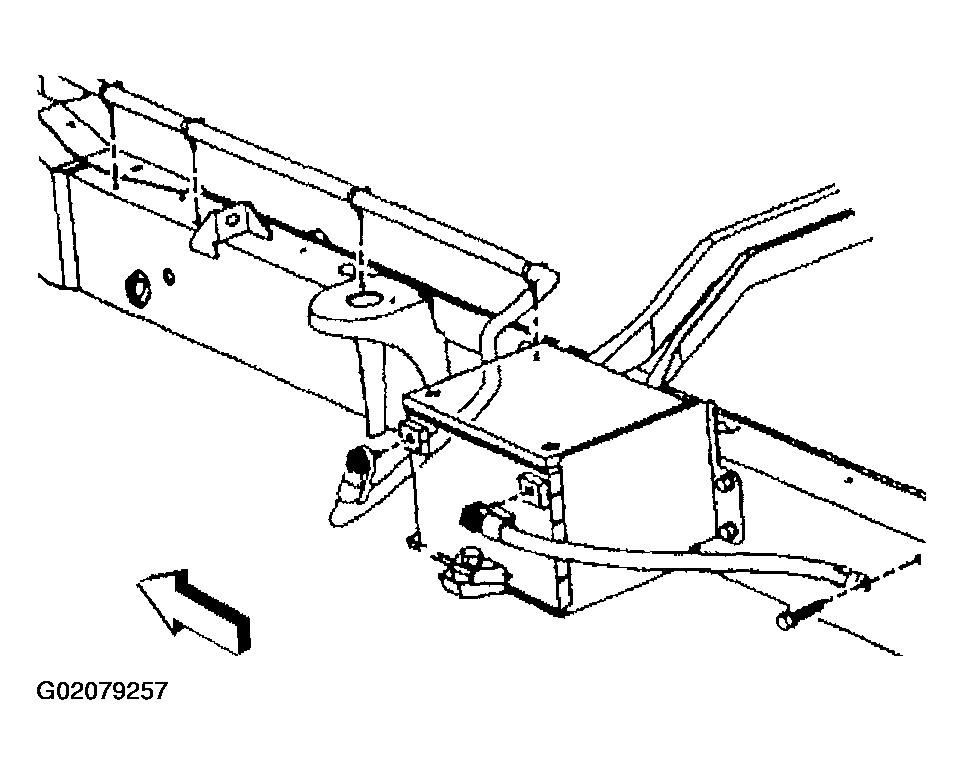

- Connect the negative ground leads to the frame.
Tighten
Tighten the negative ground leads to 10 N.m (89 lb in).
- Connect the battery negative cable to the auxiliary battery.
Tighten
Tighten the bolt to 15 N.m (11 lb ft).
- Lower the vehicle.
