Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the splash shields (3) to the wheelhouse.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolt (2) in order to retain the splash shield (3) to the wheelhouse.

    Tighten

    Tighten the bolt to 4 N.m (36 lb in).

  3. Install the push pin retainers (1) in order to retain the splash shield (3) to the wheelhouse.

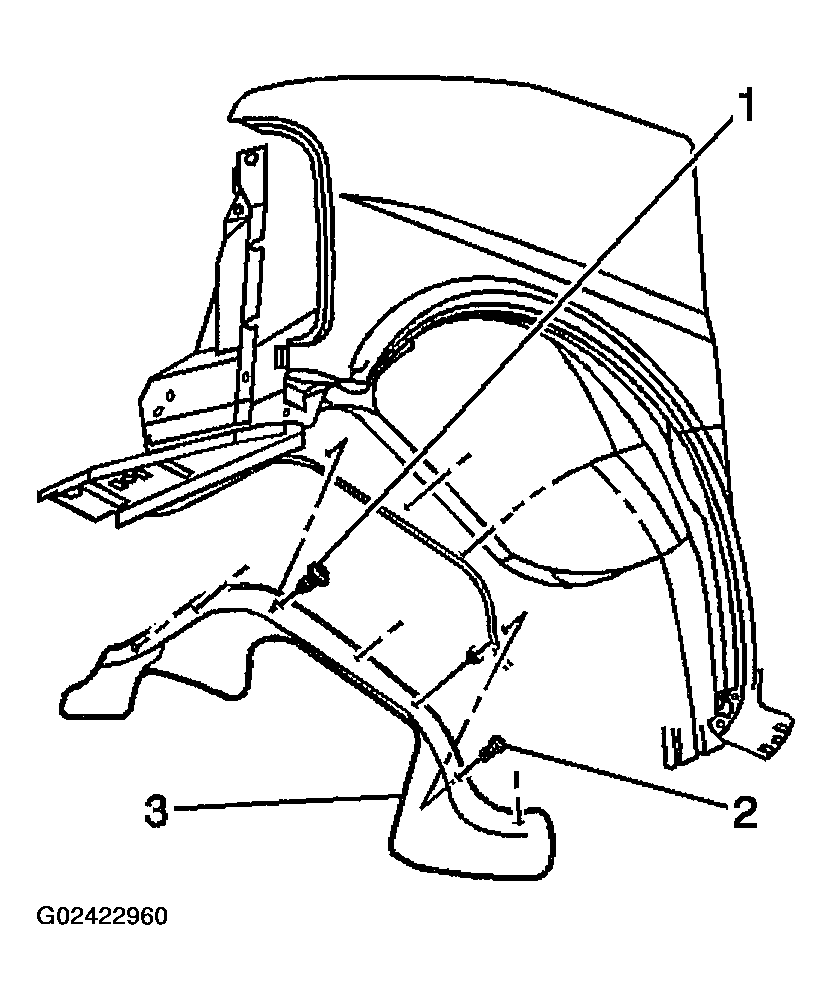

    Fig 1: Installing Wheelhouse Splash Shield
    G02422960Courtesy of GENERAL MOTORS CORP.
