Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the slot in the rear hood seal (1) with the cowl pinch-weld flange.
  2. Press the rear hood seal (1) into place.

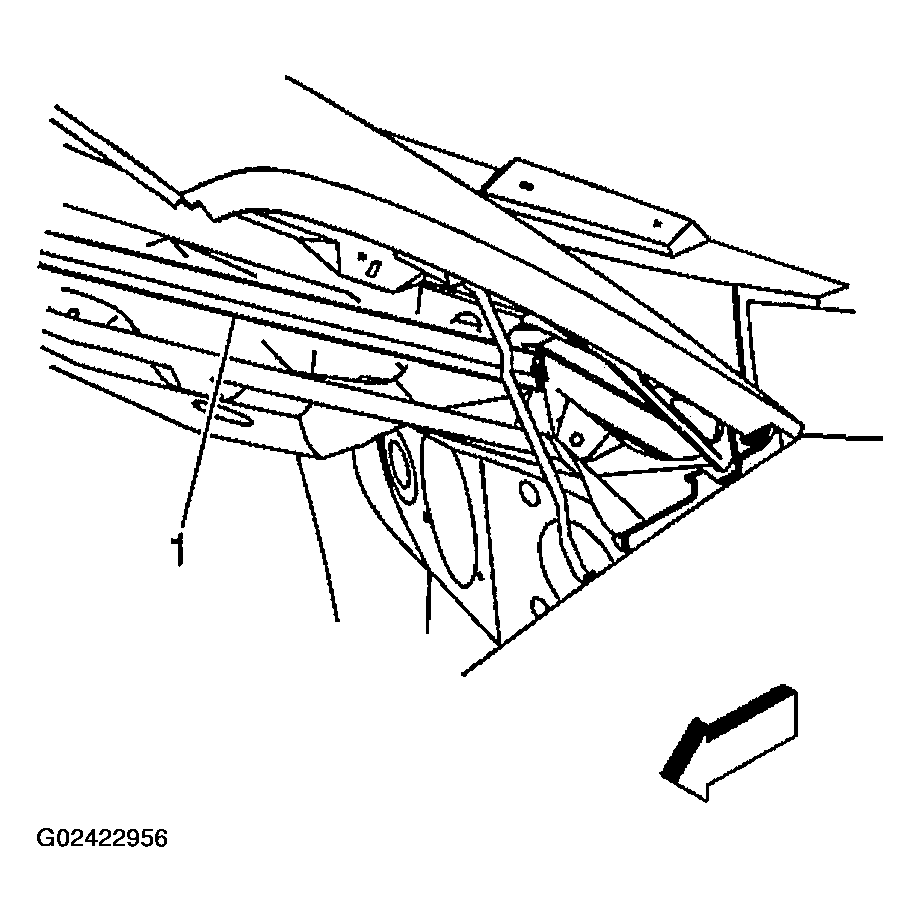

    Fig 1: Installing Rear Hood Seal
    G02422956Courtesy of GENERAL MOTORS CORP.
