Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Mark the location of the hood latch and the fasteners.
  3. Remove the bolts retaining the hood latch to the radiator support (2).
  4. Remove the hood latch from the radiator support.
  5. Remove the hood release cable from the hood latch (4).

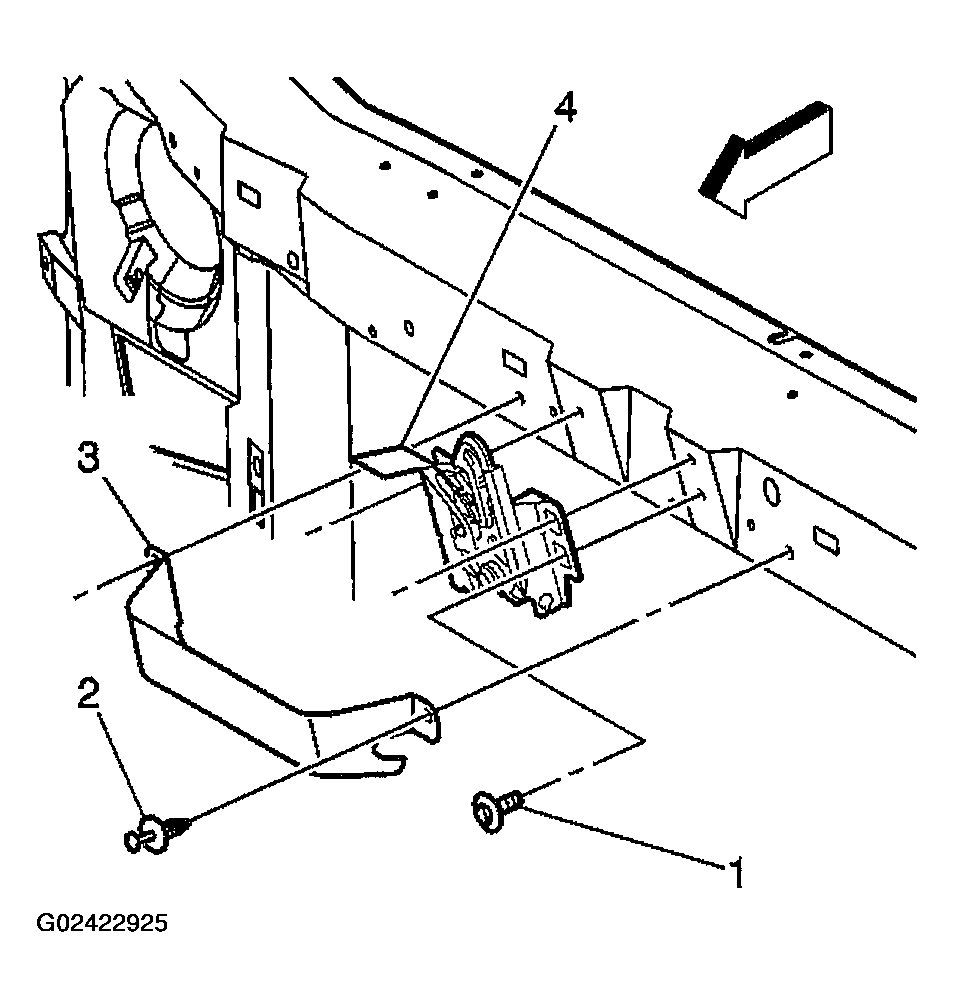

    Fig 1: Removing Hood Latch
    G02422925Courtesy of GENERAL MOTORS CORP.
