Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Remove the cable (1) from the hood latch (3).

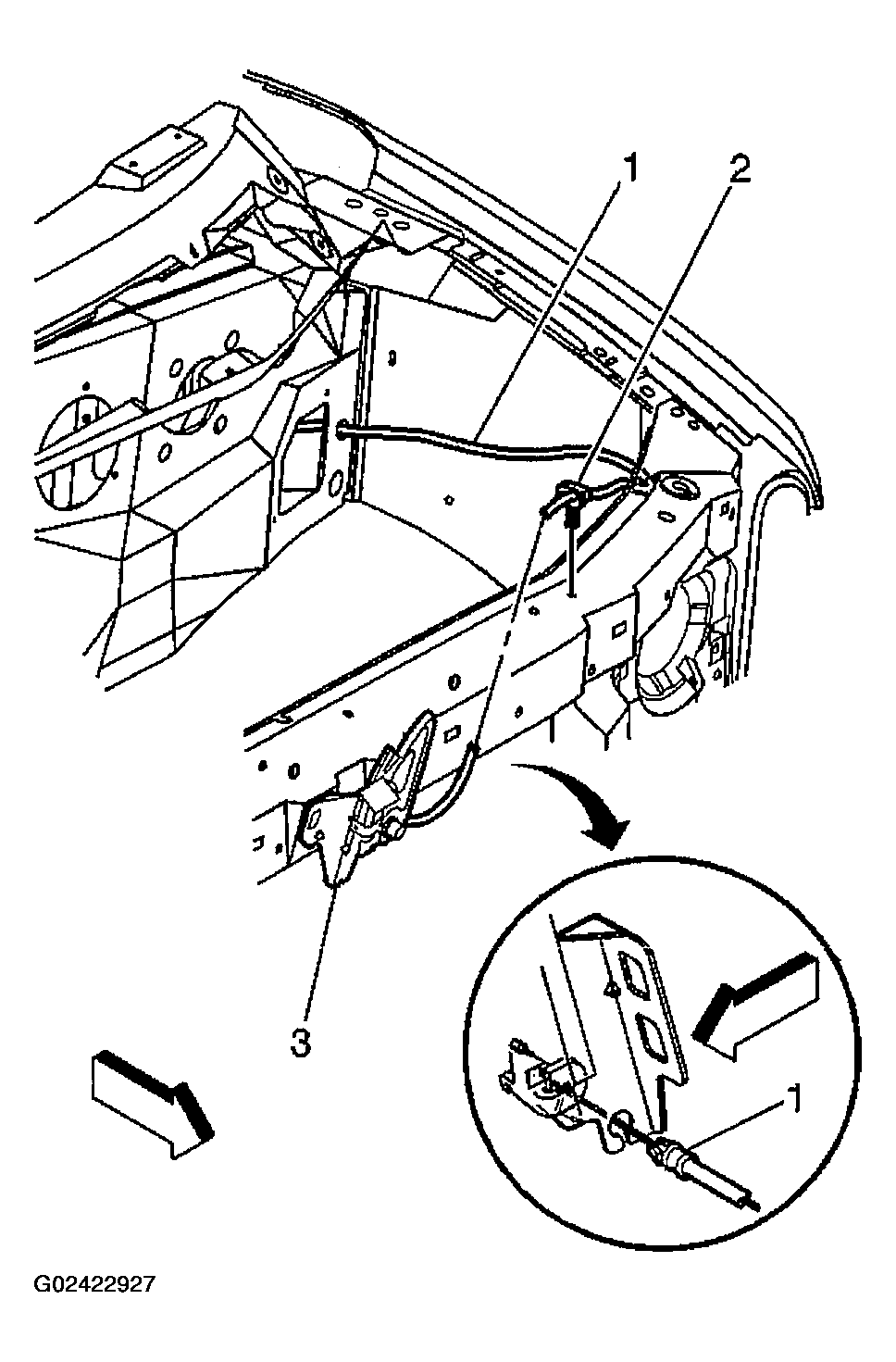

    Fig 1: Removing Hood Latch Release Cable From Hood Latch
    G02422927Courtesy of GENERAL MOTORS CORP.
  3. Remove the cable (1) from the retainer on the radiator support.
  4. Push the cable (1) and the grommet into the cab from the engine compartment.
  5. Remove the left side hinge pillar trim panel from the body. Refer to TRIM REPLACEMENT - HINGE PILLAR .
  6. Remove the screws retaining the cable handle (3) to the body.
  7. Remove the handle (3) from the body.
  8. Remove the cable (1) from the vehicle.

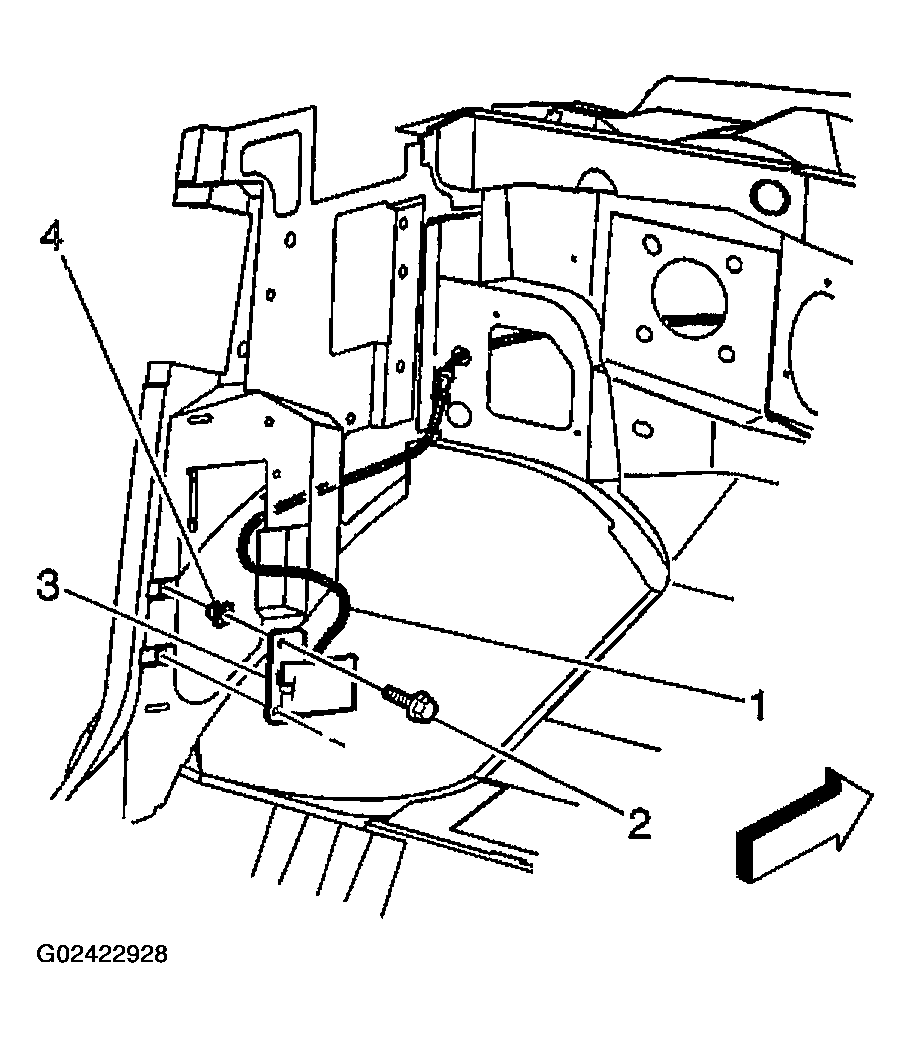

    Fig 2: Removing Hood Latch Release Cable From Vehicle
    G02422928Courtesy of GENERAL MOTORS CORP.
