Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Remove the radiator grille. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .
  3. Remove the push pin rivet retainers retaining the hood latch cover (3) to the radiator support.
  4. Remove the hood latch cover (3) from the radiator support.

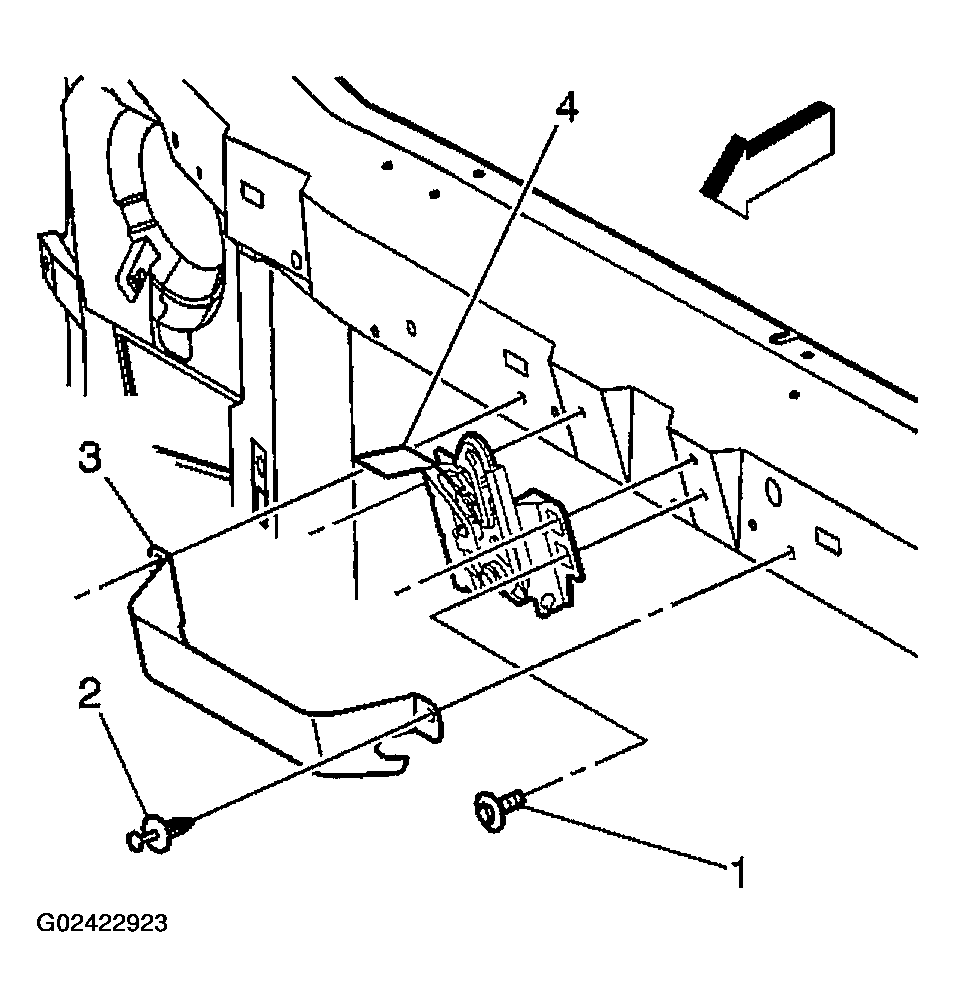

    Fig 1: Removing Hood Latch Cover
    G02422923Courtesy of GENERAL MOTORS CORP.
