Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood latch cover (3) to the radiator support.
  2. Install the push pin rivet retainers in order to retain the hood latch cover (3).
  3. Install the radiator grille. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .
  4. Close the hood.

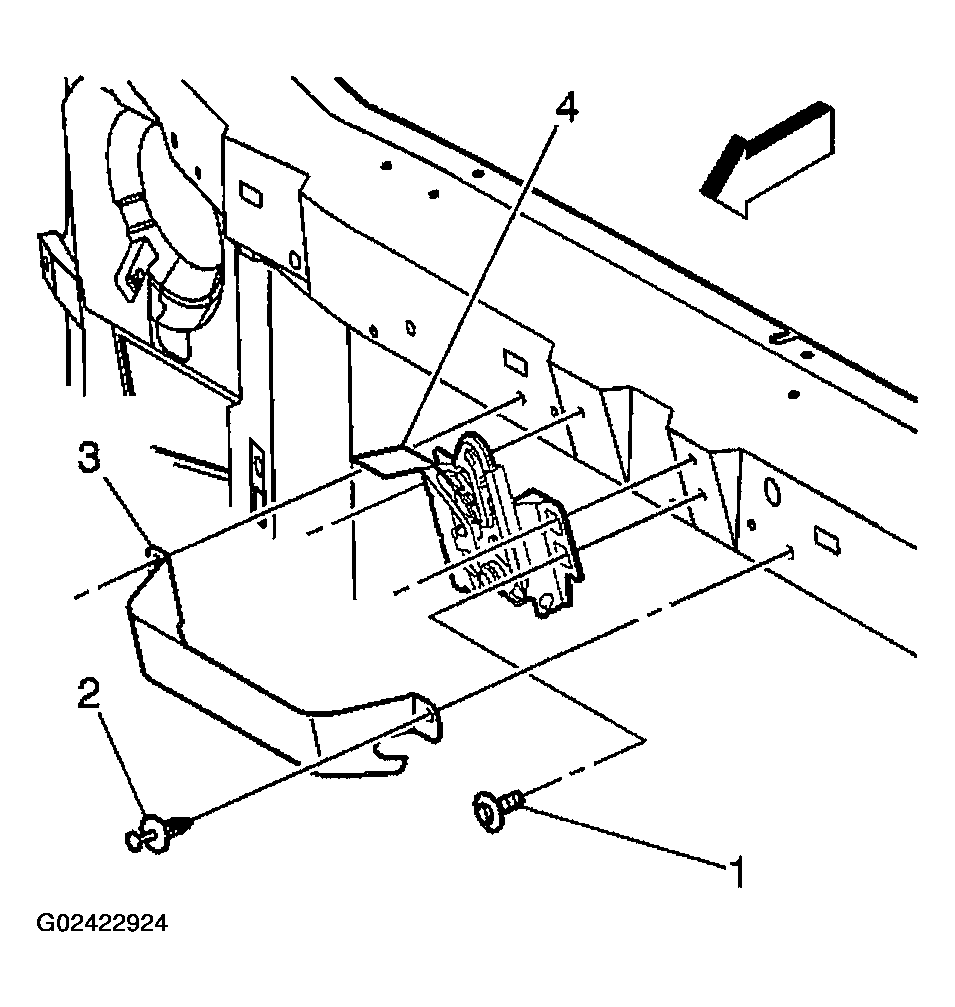

    Fig 1: Installing Hood Latch Cover
    G02422924Courtesy of GENERAL MOTORS CORP.
