Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Disconnect the electrical connector for the underhood lamp.
  3. Remove the underhood lamp harness and the retainers from the hood. Refer to UNDERHOOD LAMP REPLACEMENT .
  4. Remove the hood insulator retainers.
  5. Remove the insulator from the hood (1).

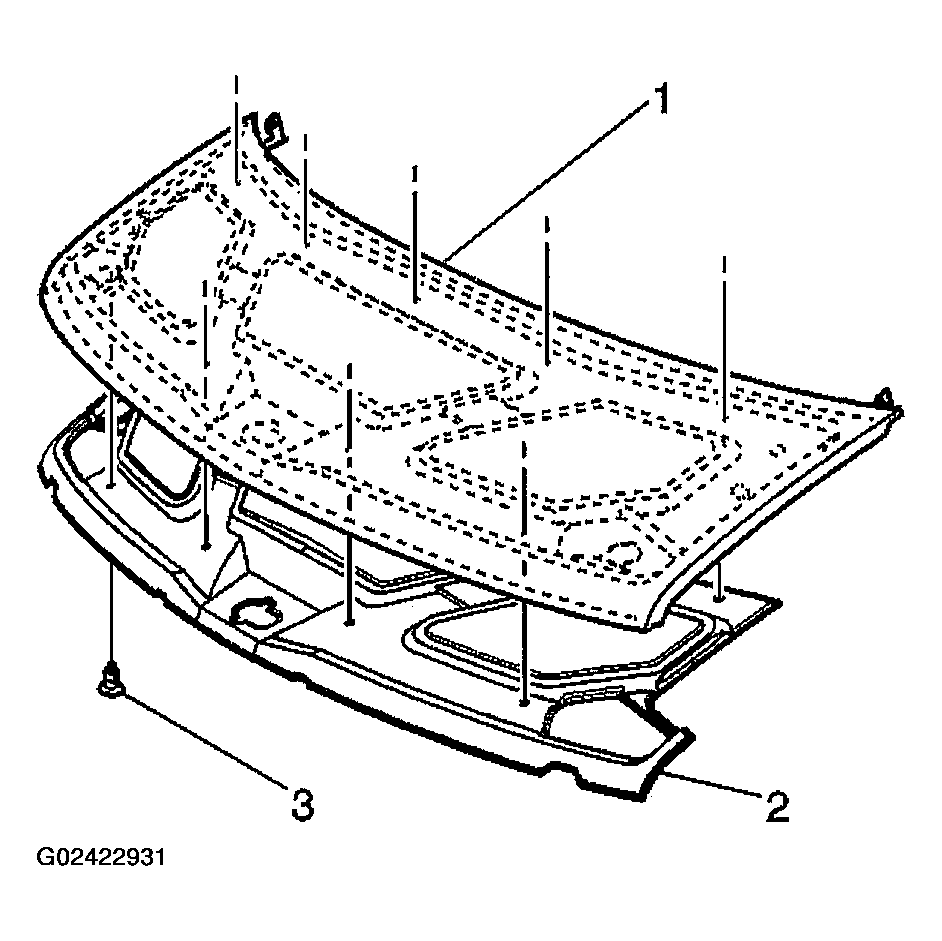

    Fig 1: Removing Hood Insulator
    G02422931Courtesy of GENERAL MOTORS CORP.
