Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator (2) to the hood (1).
  2. Install the hood insulator retainers.
  3. Install the retainers holding the underhood lamp and harness to the hood. Refer to UNDERHOOD LAMP REPLACEMENT .
  4. Connect the electrical connector to the underhood lamp.
  5. Close the hood.

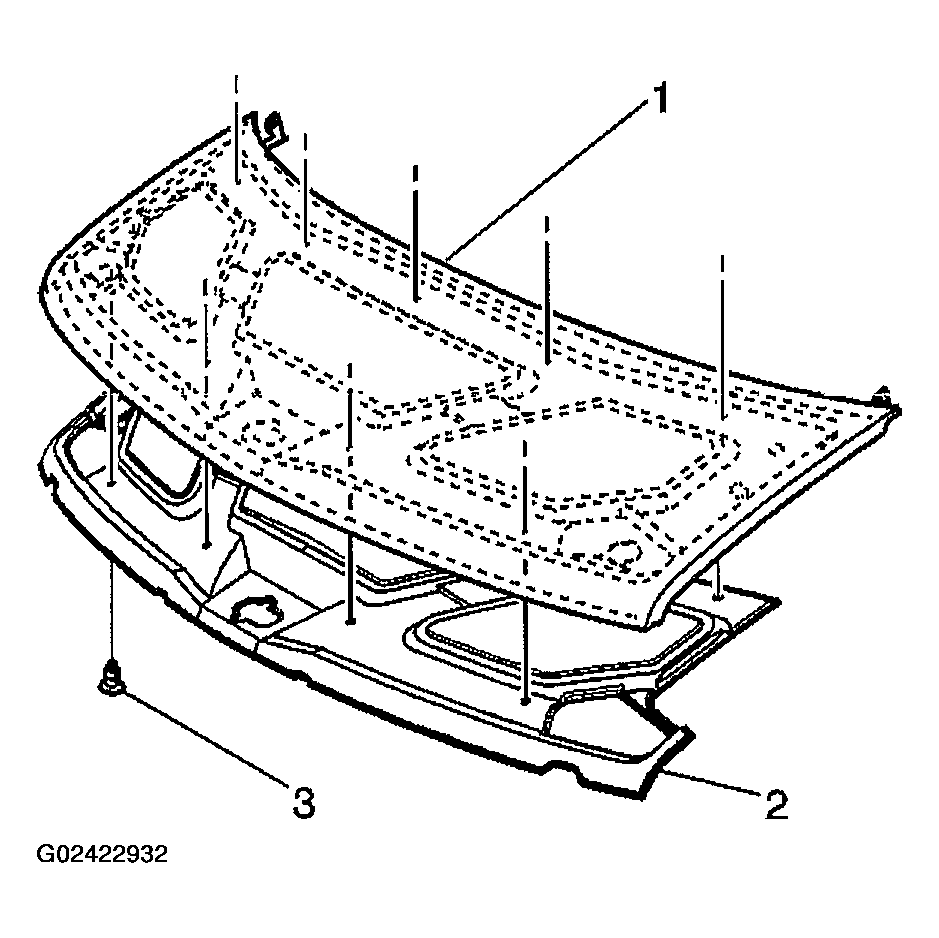

    Fig 1: Installing Hood Insulator
    G02422932Courtesy of GENERAL MOTORS CORP.
