Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a protective covering at the top of the fender.
  2. Remove the upper fender filler panel applique. Refer to Filler Panel Applique Replace - Upper Front Fender .
  3. Remove the bolt (4) retaining the upper filler panel (1) to the body.
  4. Remove the upper filler panel (1) from the retaining clips.
  5. Remove the upper filler panel (1) from the vehicle.

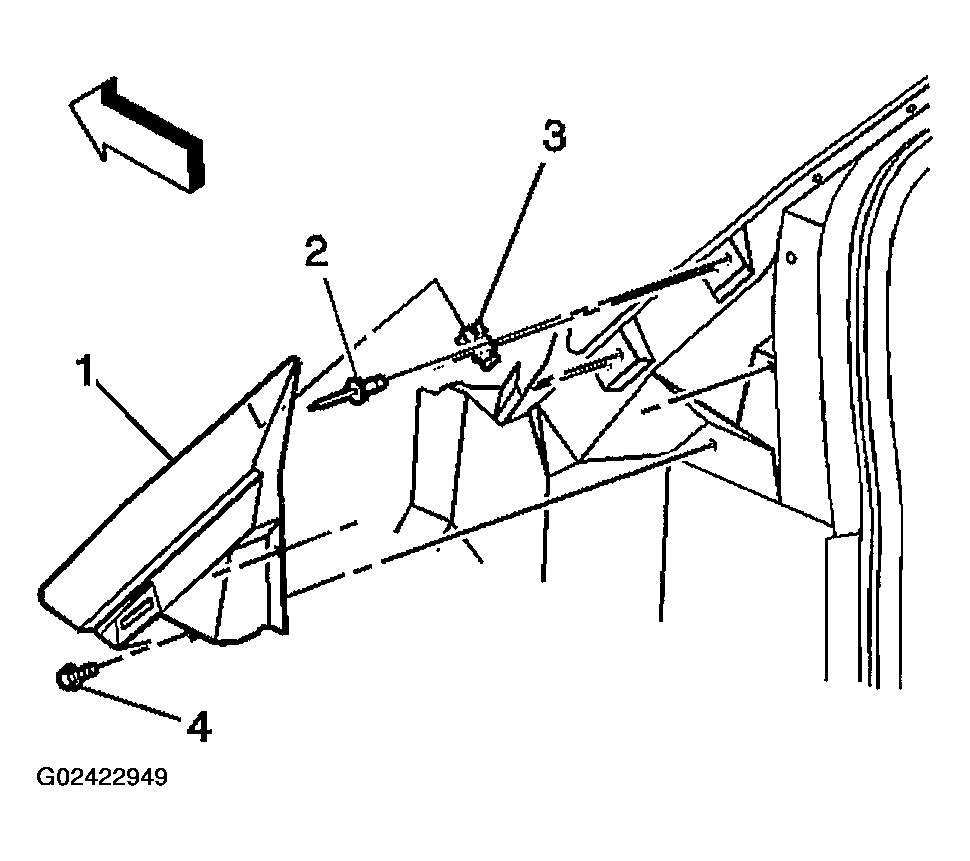

    Fig 1: Removing Upper Front Fender Filler Panel
    G02422949Courtesy of GENERAL MOTORS CORP.
