Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper fender filler panel (1) to the vehicle.
  2. Install the upper fender filler panel (1) under the windshield molding.

    Install the upper fender filler panel (1) onto the retaining clips.

    CAUTION: Refer to FASTENER NOTICE .
  3. Install the bolt (4) in order to retain the upper fender filler panel (1) to the body.

    Tighten

    Tighten the bolt (4) to 2 N.m (18 lb in).

  4. Install the upper fender filler panel applique. Refer to Filler Panel Applique Replace - Upper Front Fender .
  5. Remove the protective covering from the fender.

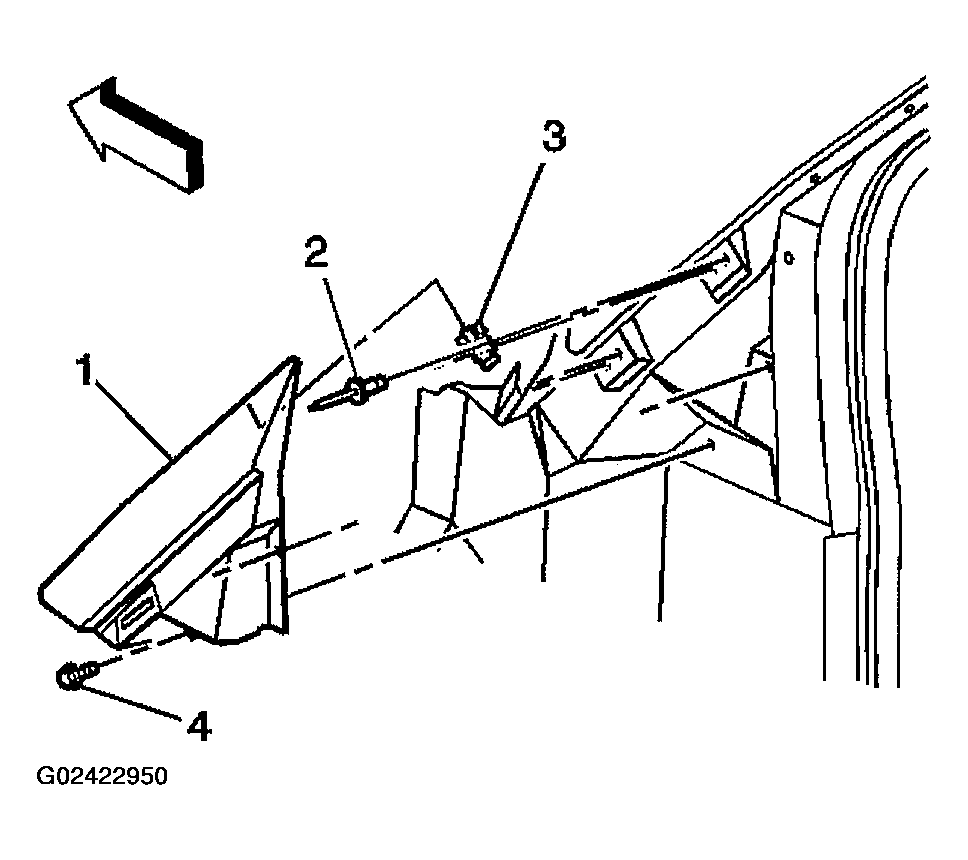

    Fig 1: Installing Upper Front Fender Filler Panel
    G02422950Courtesy of GENERAL MOTORS CORP.
