Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws (2) retaining the applique (3) to the filler panel.
  2. Pull the applique (3) away from the filler panel in order to release the retainer (1).
  3. Remove the applique (3) from the vehicle.

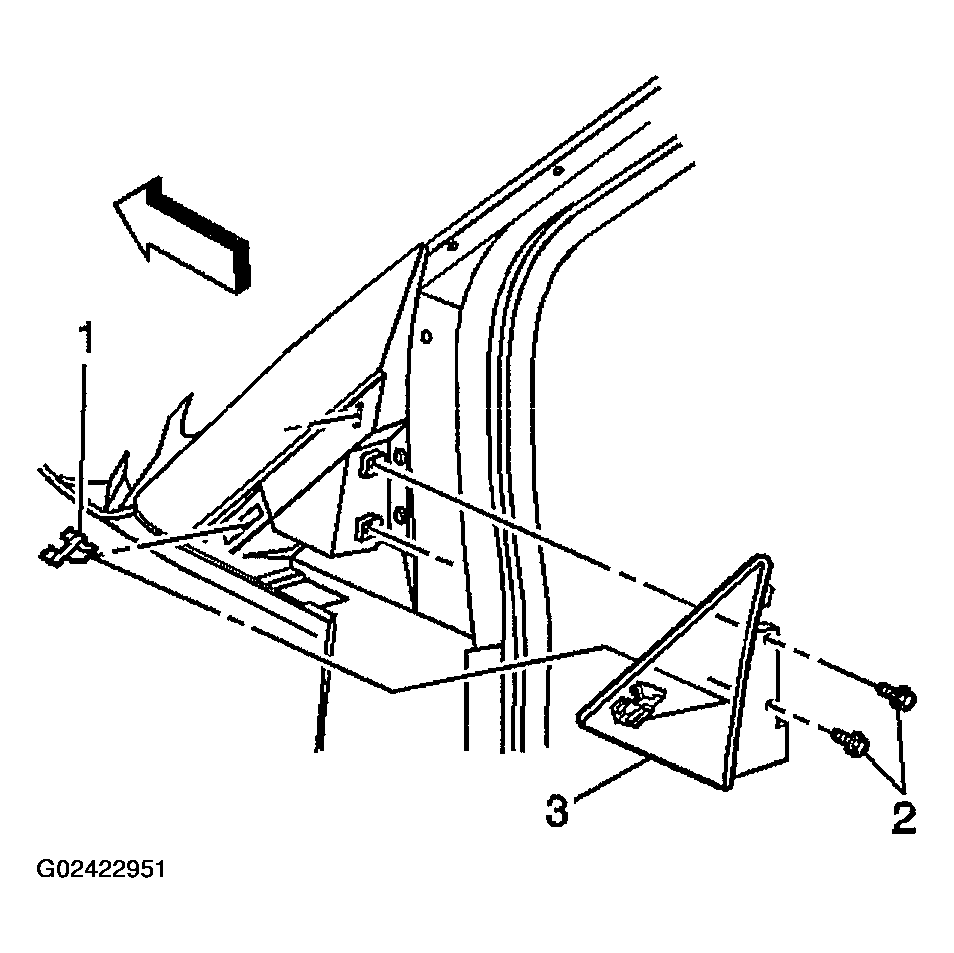

    Fig 1: Removing Upper Front Fender Filler Panel Applique
    G02422951Courtesy of GENERAL MOTORS CORP.
