Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt (2) retaining the front fender extension (3) to the body.
  2. Remove the bolt (2) retaining the front fender extension (3) to the rocker panel.
  3. Remove the front fender extension (3) from the body.

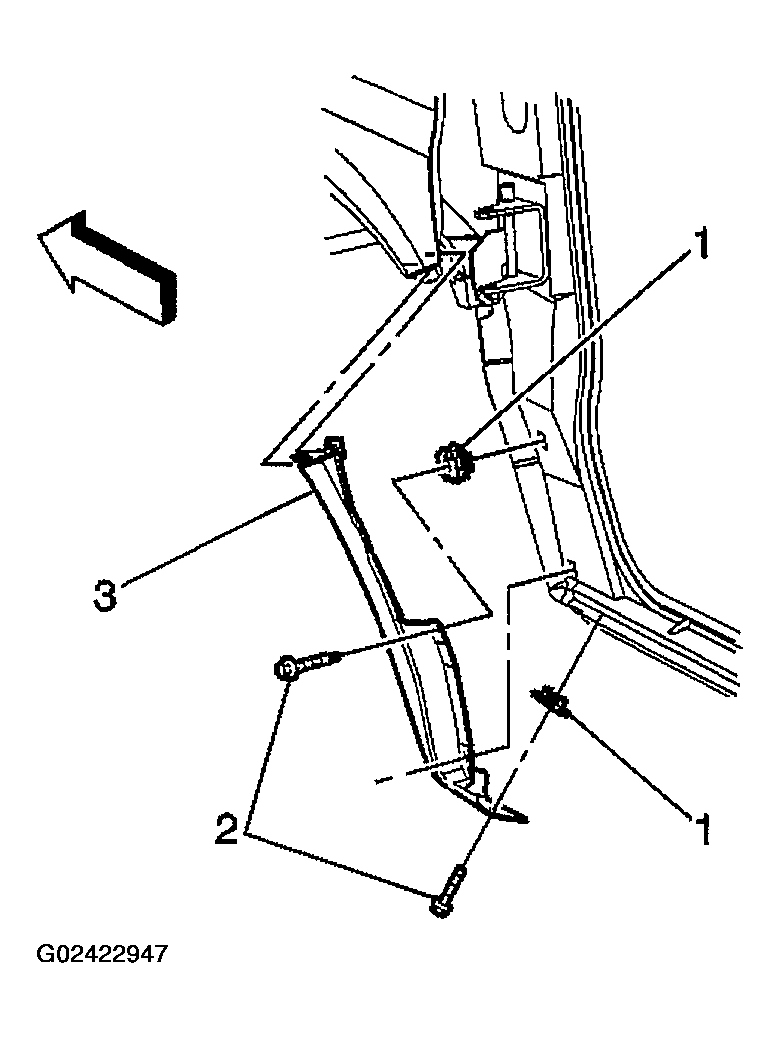

    Fig 1: Removing Front Fender Extension
    G02422947Courtesy of GENERAL MOTORS CORP.
