Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator grille from the vehicle. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .
  2. Remove the push pin retainers (2) retaining the front bumper filler (1) to the radiator support.
  3. Remove the front bumper filler (1) from the vehicle.

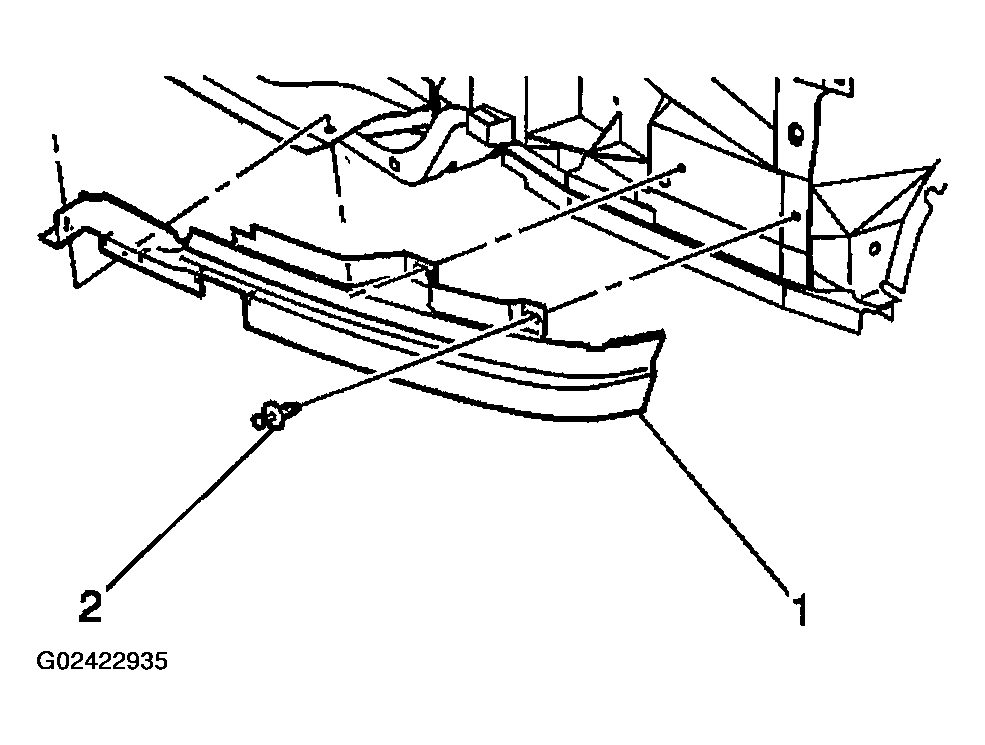

    Fig 1: Removing Front Bumper Filler
    G02422935Courtesy of GENERAL MOTORS CORP.
