Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper filler (1) to the vehicle.
  2. Install the push pin retainers (2) in order to retain the front bumper filler (1) to the radiator support.
  3. Install the radiator grille to the vehicle. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .

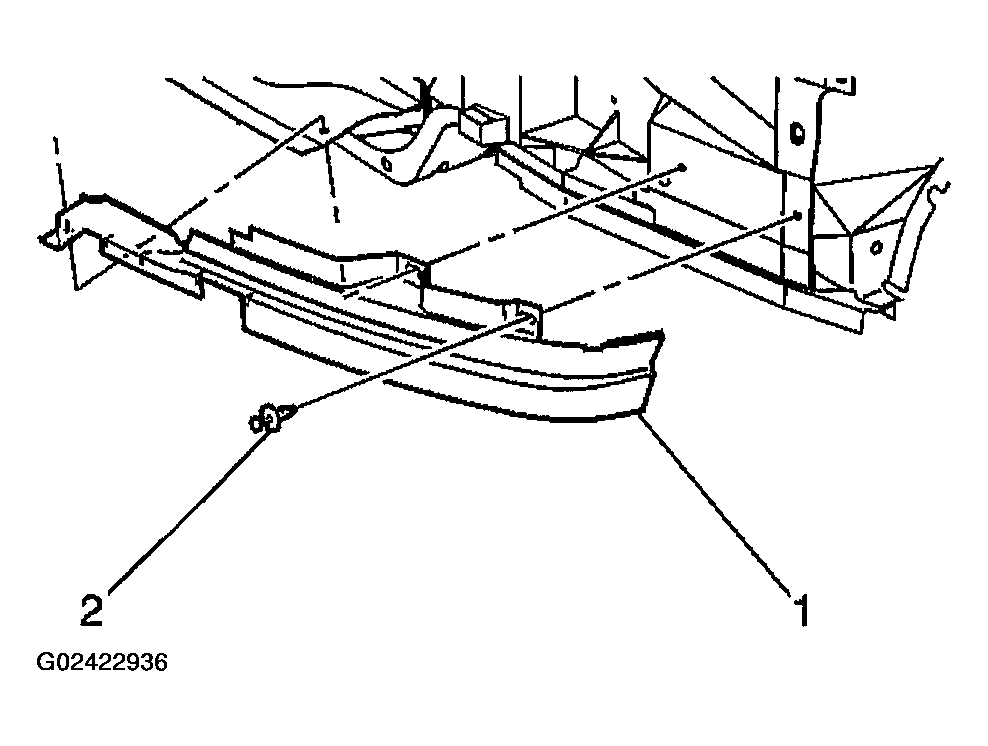

    Fig 1: Installing Front Bumper Filler
    G02422936Courtesy of GENERAL MOTORS CORP.
