Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Remove the screws retaining the air inlet grille panels to the cowl vent.
  3. Remove the wiper arms from the vehicle. Refer to WIPER ARM REPLACEMENT .
  4. Disconnect the washer hoses from the air inlet grille panel.
  5. Remove the air inlet grille panels from the vehicle.

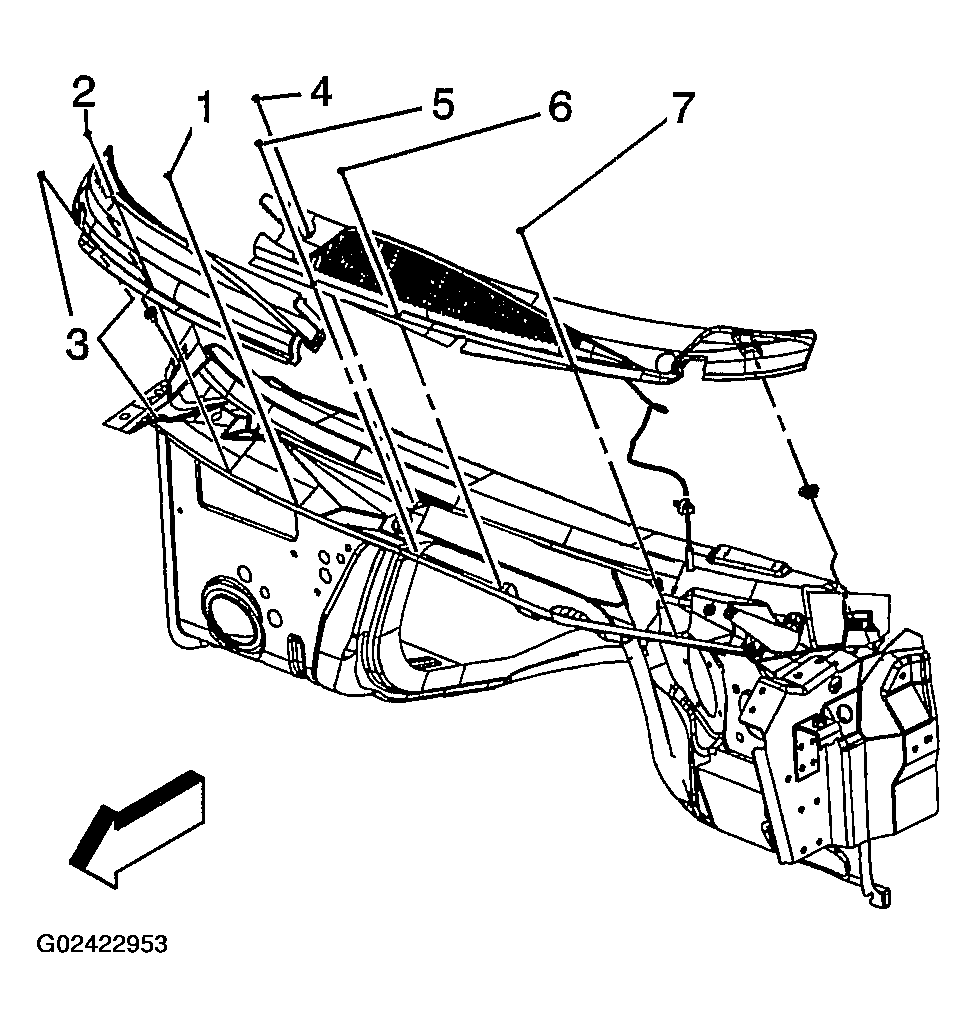

    Fig 1: Removing Air Inlet Grille Panel
    G02422953Courtesy of GENERAL MOTORS CORP.
