Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the retainer tabs on the front bumper step pad (1) with the slots in the bumper.
  2. Using a rubber mallet, set the retainer tabs in place starting at the center of the front bumper step pad and work toward each end of the pad.
  3. Install the front bumper to the vehicle. Refer to Bumper Replacement - Front .

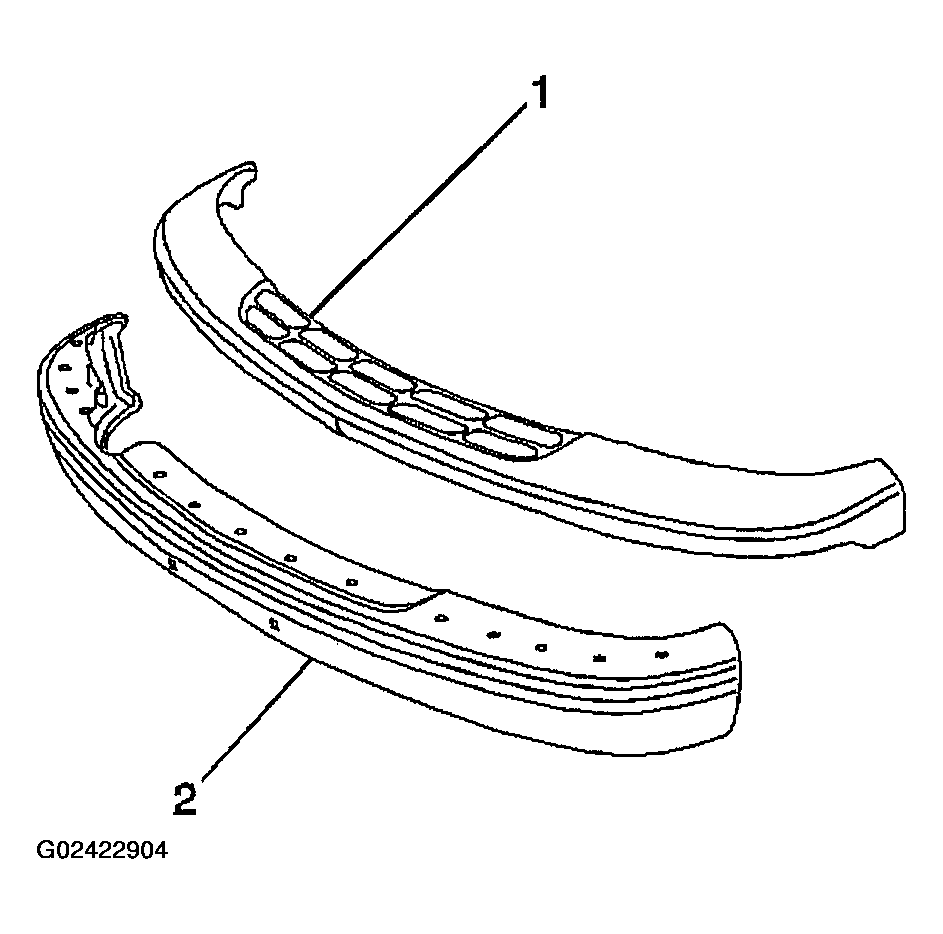

    Fig 1: Installing Front Bumper Step Pad
    G02422904Courtesy of GENERAL MOTORS CORP.
