Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear step pad from the vehicle. Refer to Step Pad Replacement - Rear Bumper .
  2. Remove the bolts that attach the rear bumper fascia (1) to the impact bar (2).
  3. Remove the rear bumper fascia from the vehicle.
  4. Remove the bolts that attach the rear bumper fascia impact bar to the vehicle, if required.

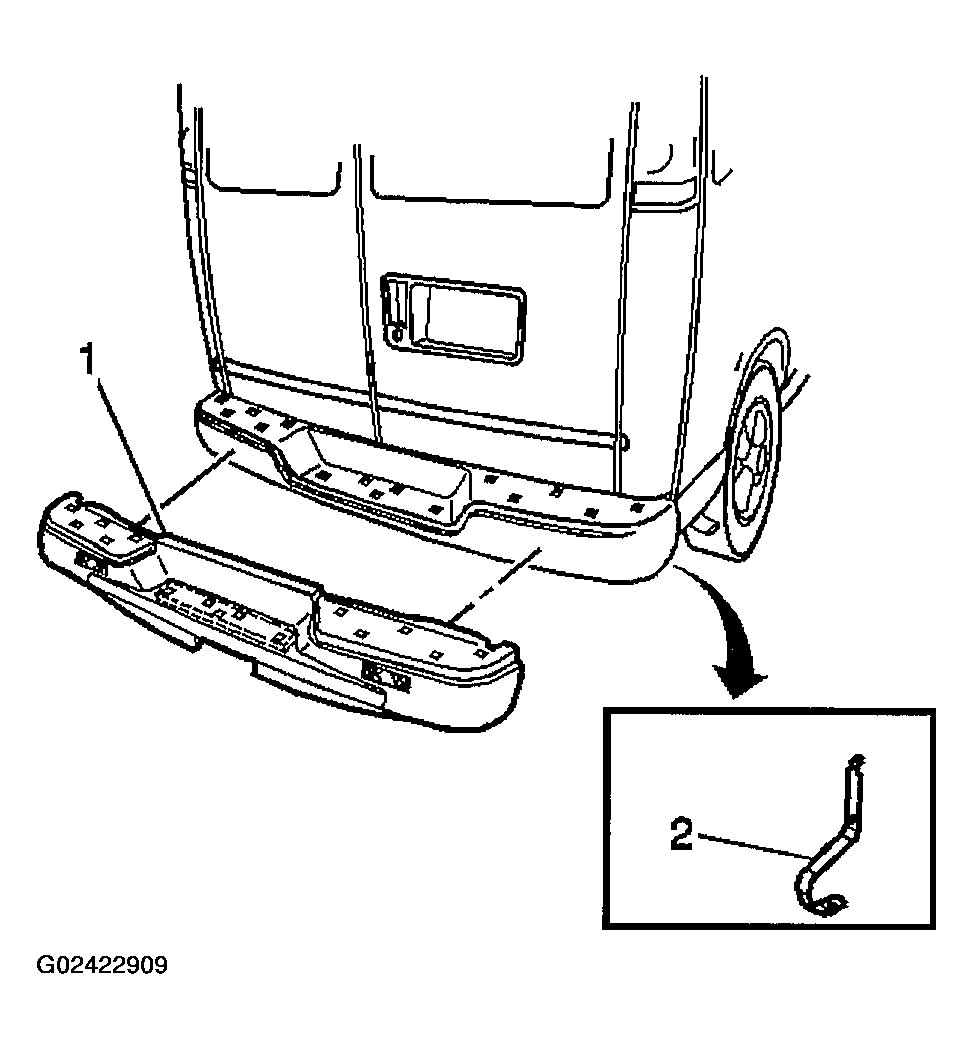

    Fig 1: Removing Rear Bumper Fascia
    G02422909Courtesy of GENERAL MOTORS CORP.
