Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bolts that attach the rear bumper fascia impact bar to the vehicle if removed.
  2. Install the rear bumper fascia to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the bolts that attach the rear bumper fascia (1) to the impact bar (2).

    Tighten

    Tighten the mounting bracket bolts to 2 N.m (18 lb in).

  4. Install the rear step pad from the vehicle. Refer to Step Pad Replacement - Rear Bumper .

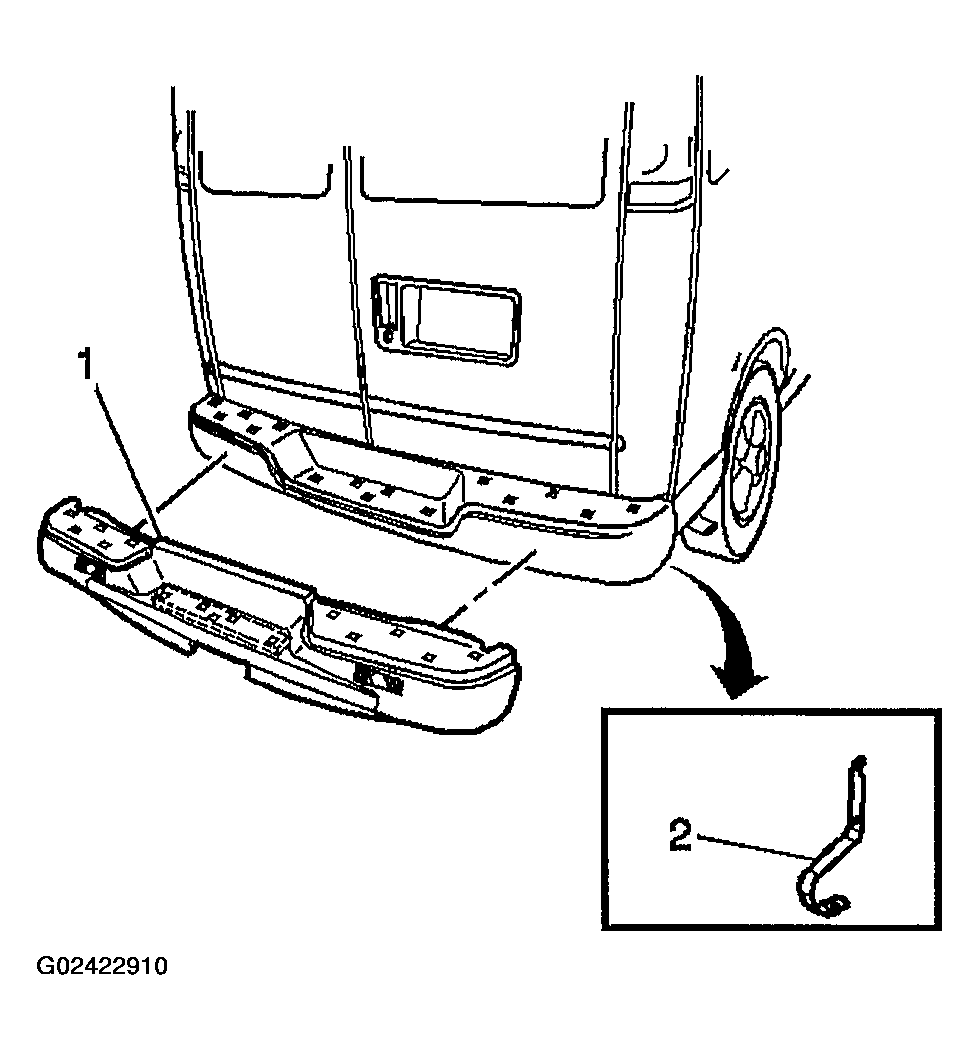

    Fig 1: Installing Rear Bumper Fascia
    G02422910Courtesy of GENERAL MOTORS CORP.
