Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille from the vehicle. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .
  2. Remove the bolts that retain the front fascia (4) to the mounting bracket (3).
  3. Remove the push pin retainers (1) from the top of the front fascia.
  4. Remove the front fascia support using pliers. Gently press on the retaining tabs on the fascia support, if required.
  5. Remove the bolts that retain the front fascia mounting brackets to the bumper, if required.

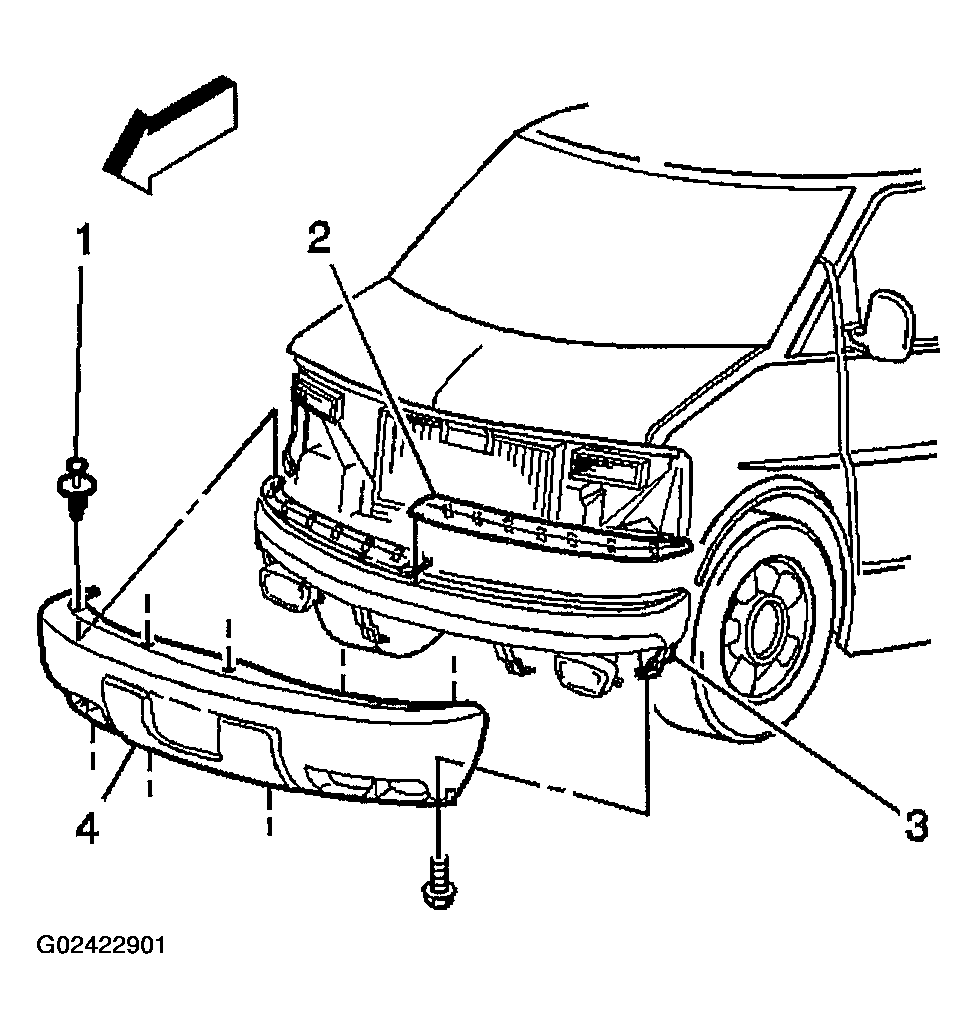

    6. Fig 1: Removing Front Fascia
    G02422901Courtesy of GENERAL MOTORS CORP.
