Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. During the WND RAP relay operation, listen for an audible click. Command the ON and the OFF states. Repeat the commands as necessary.
  2. 3. Verifies whether the WND RAP relay has a defect.
  3. 4. Tests the control circuit of the WND RAP relay.
  4. 5. Tests the ground circuit of the WND RAP relay.

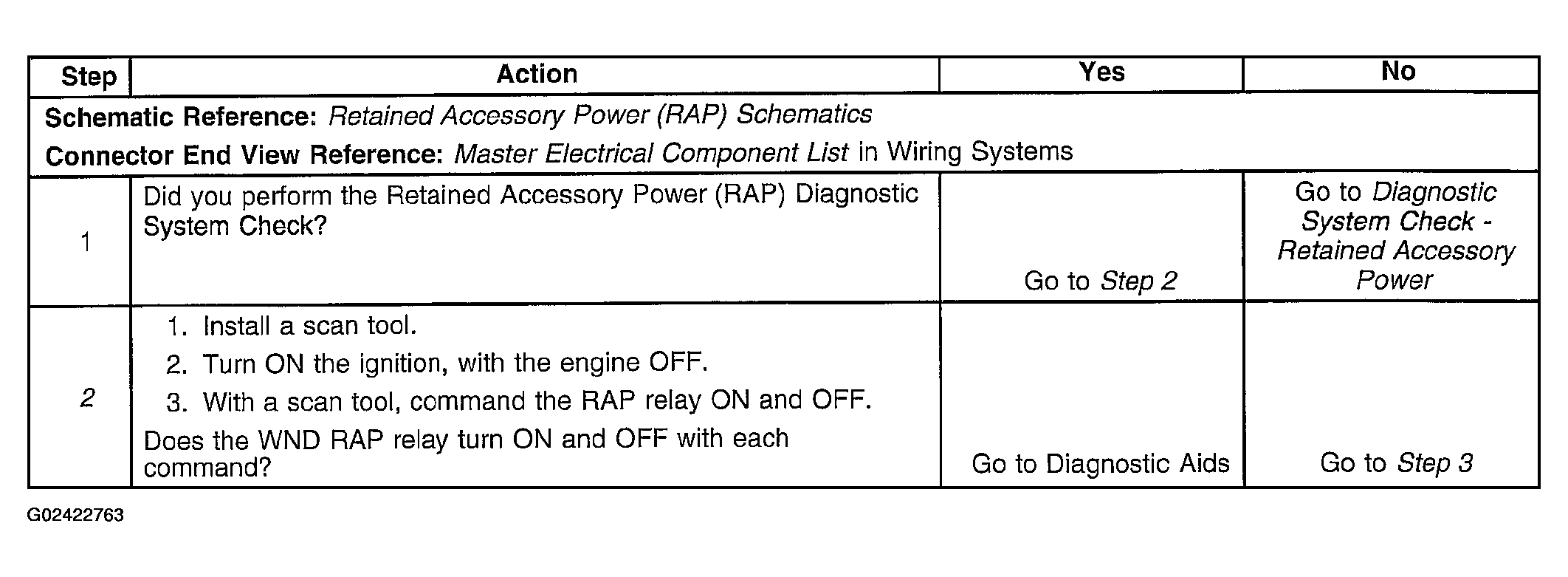

    Fig 1: DTC B1477 Or B1478 (1 Of 2)
    G02422763Courtesy of GENERAL MOTORS CORP.

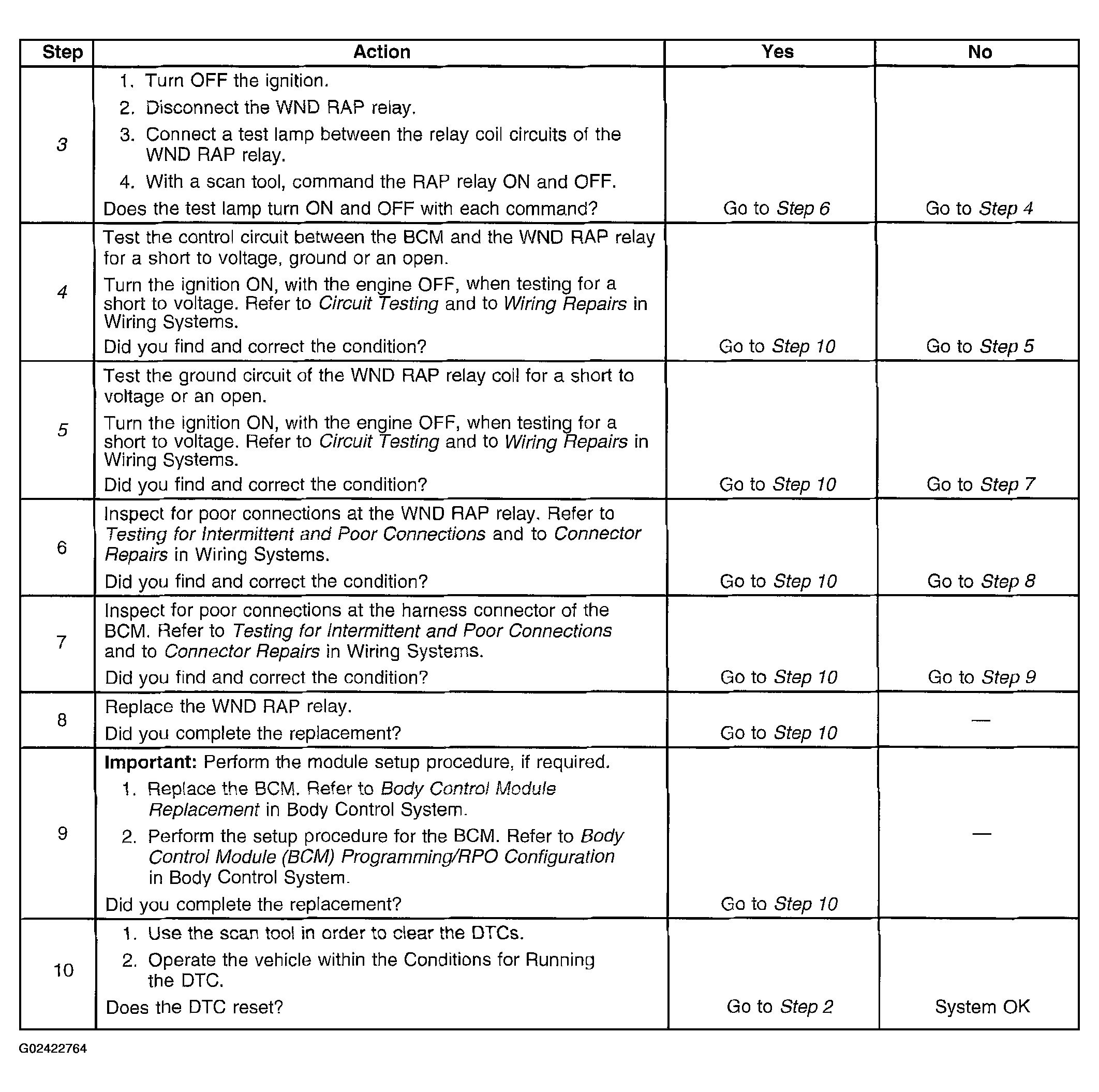

    Fig 2: DTC B1477 Or B1478 (2 Of 2)
    G02422764Courtesy of GENERAL MOTORS CORP.
