Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger side assist handle if equipped. Refer to Assist Handle Replacement - Front .
  2. Grasp and gently pull the windshield garnish molding in order to release the clips.
  3. Remove the windshield garnish molding from the vehicle.
  4. Inspect the windshield garnish molding for broken or missing retaining clips.

    Replace the windshield garnish molding or clips as needed.

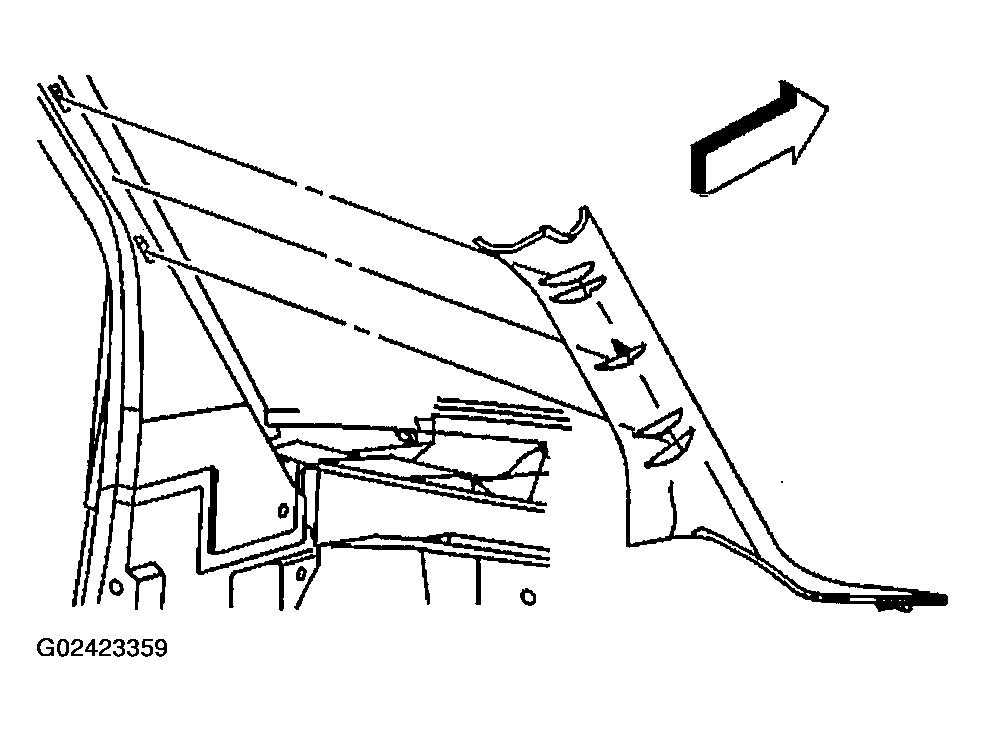

    Fig 1: Removing Windshield Garnish Molding
    G02423359Courtesy of GENERAL MOTORS CORP.
