Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the windshield garnish molding to the vehicle.
  2. Align the clips and press on the windshield garnish molding in order to engage the clips.
  3. Install the passenger side assist handle if equipped. Refer to Assist Handle Replacement - Front .

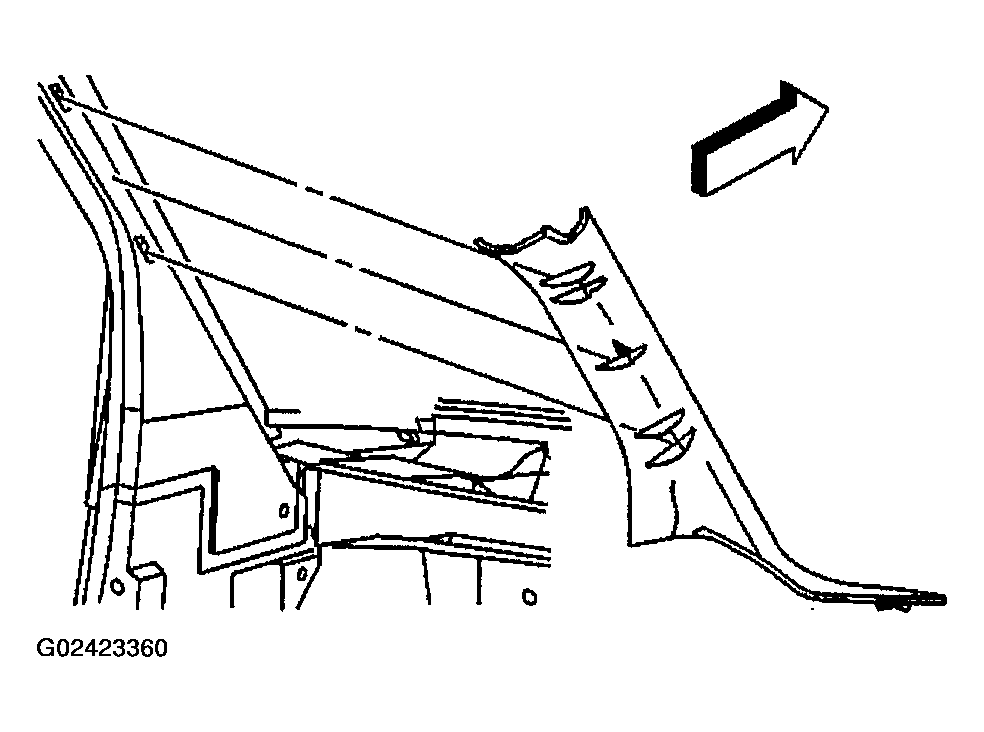

    Fig 1: Installing Windshield Garnish Molding
    G02423360Courtesy of GENERAL MOTORS CORP.
