Home >> GMC >> 2006 >> Sierra 1500 HD, RWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 256 (Interior Trim) >> Repair Instructions >> Trim Replacement - Hinge Pillar >> Installation Procedure

Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hinge pillar trim panel to the vehicle.
  2. Align the locator pins. Press on the hinge pillar trim panel in order to engage the retaining clips.
  3. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT for the left knee bolster panel or KNEE BOLSTER REPLACEMENT - RIGHT for the right panel.

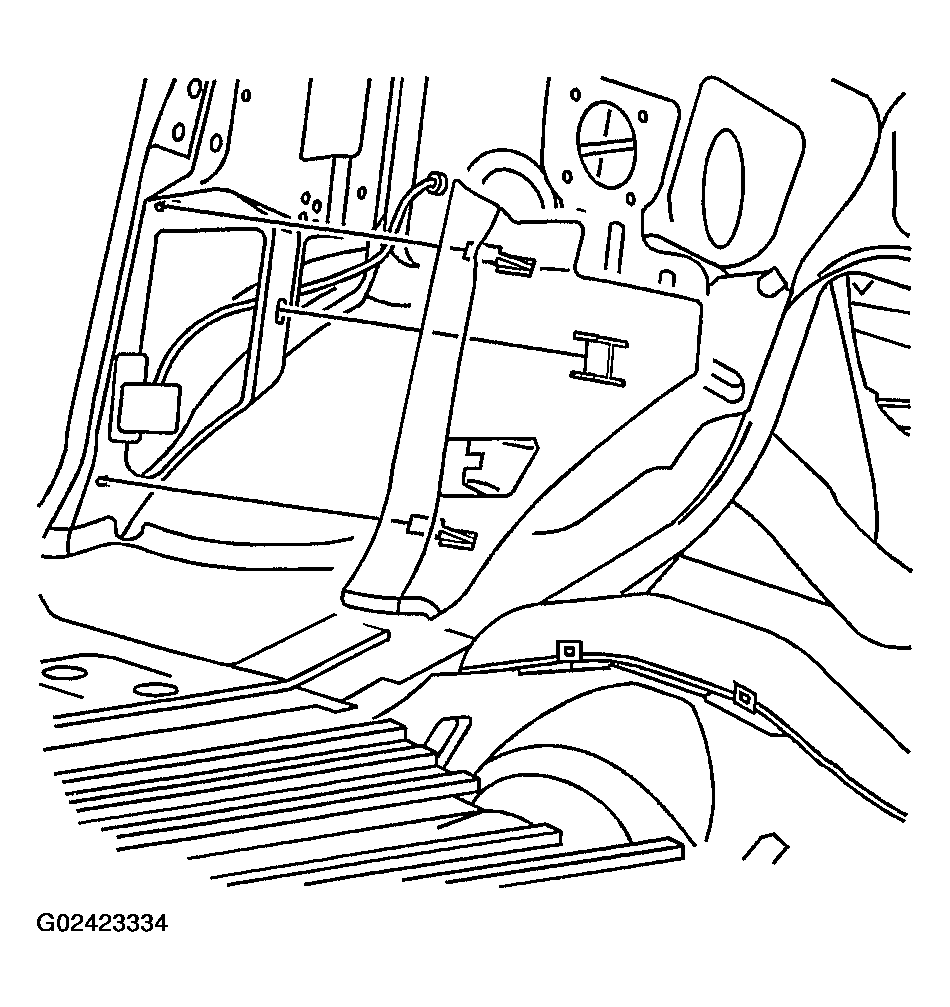

    Fig 1: Installing Hinge Pillar Trim Panel
    G02423334Courtesy of GENERAL MOTORS CORP.
