Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp and gently pull the rear of the passenger side rear corner trim panel in order to disengage the retaining clips.
  2. Remove the passenger side rear corner trim panel from the vehicle.
  3. Inspect the passenger side rear corner trim panel for broken or missing retaining clips. Replace the clips as needed.

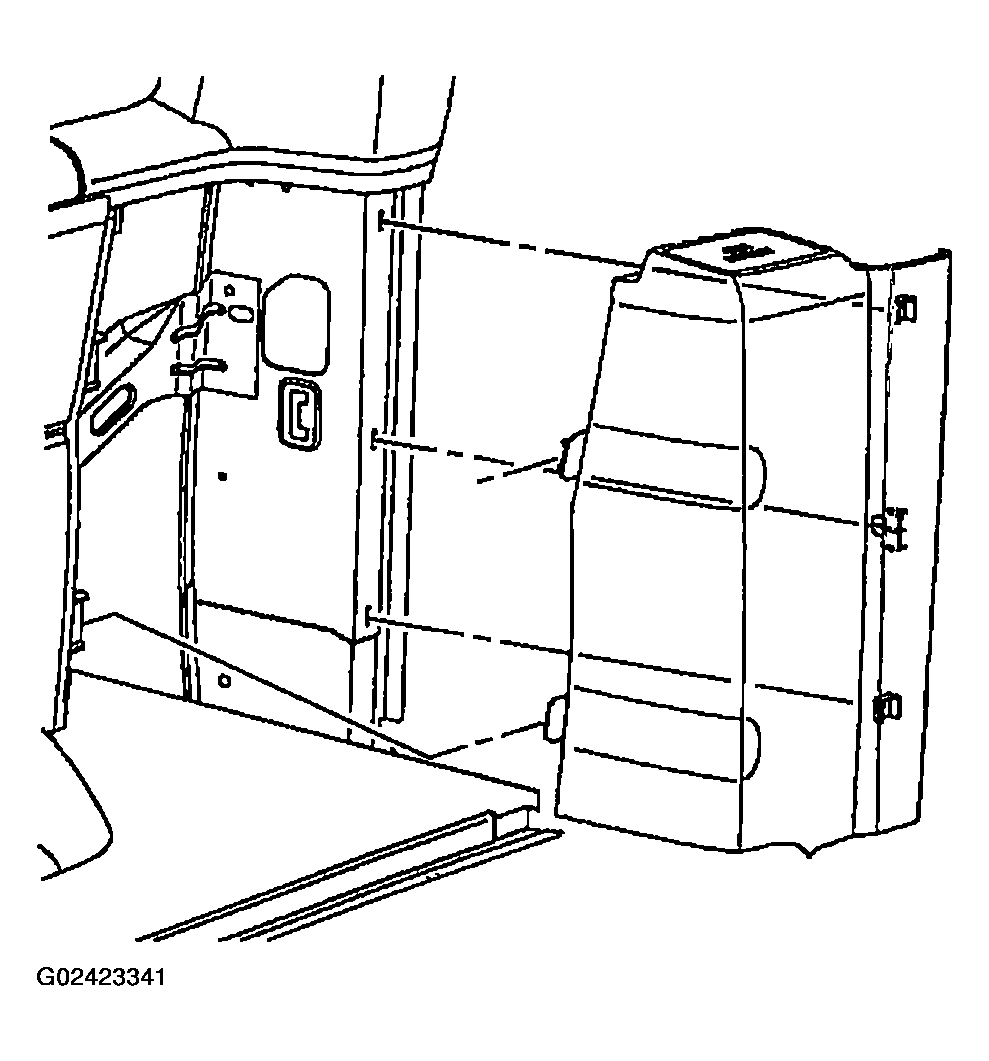

    Fig 1: Removing Right Rear Corner Trim Panel
    G02423341Courtesy of GENERAL MOTORS CORP.
